Pinpoint Test 3: Insufficient, Erratic Or No Heat

PINPOINT TEST 3: INSUFFICIENT, ERRATIC OR NO HEAT

Normal Operation

Warm coolant flows from the engine through the heater core and back to the engine.

Possible Causes
- Plugged heater core
- Coolant level
- Temperature blend door

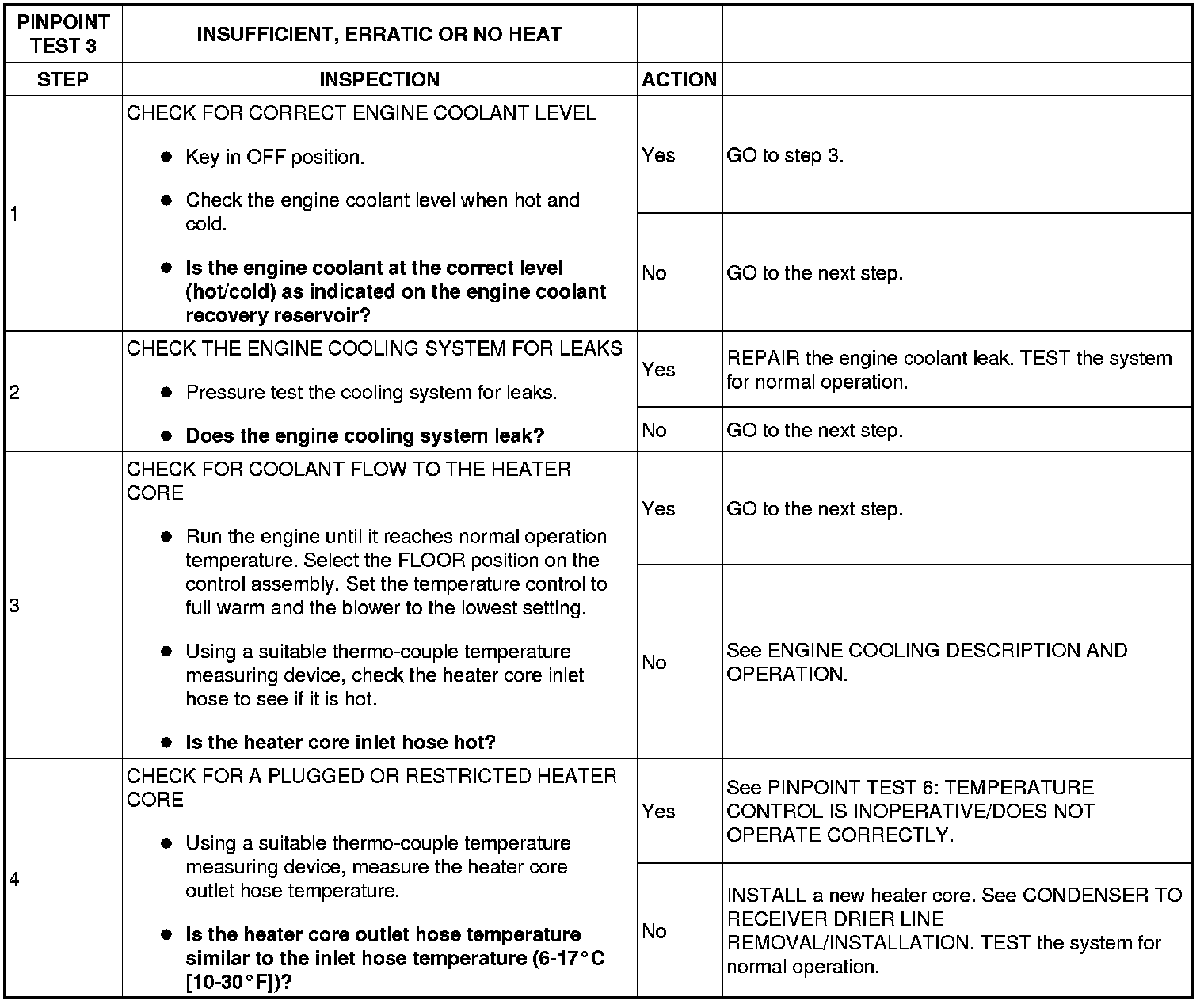

Diagnostic Procedure
