Mazda Truck
>>
2011
>>
Tribute 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector End Views
Connector End Views

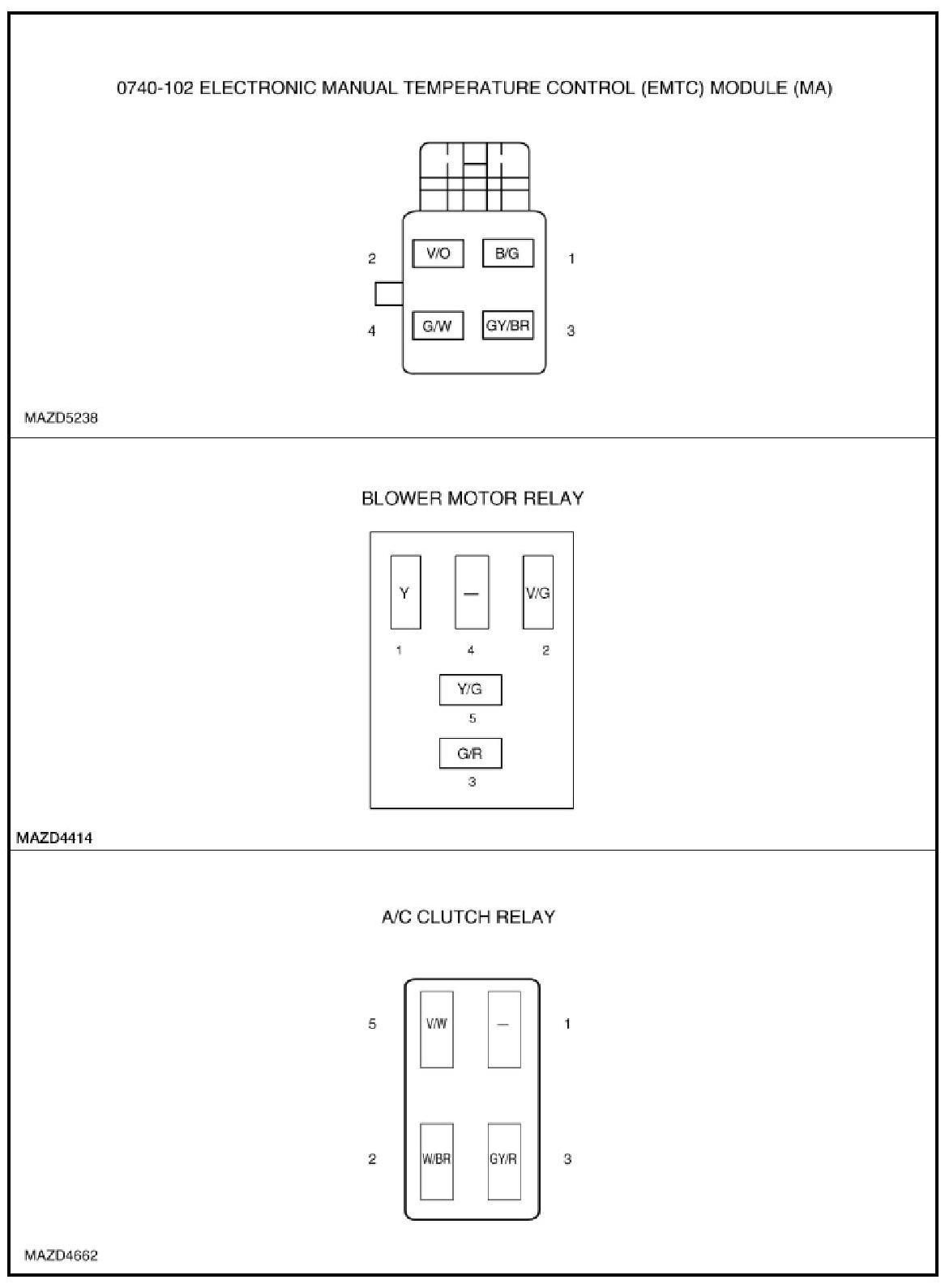

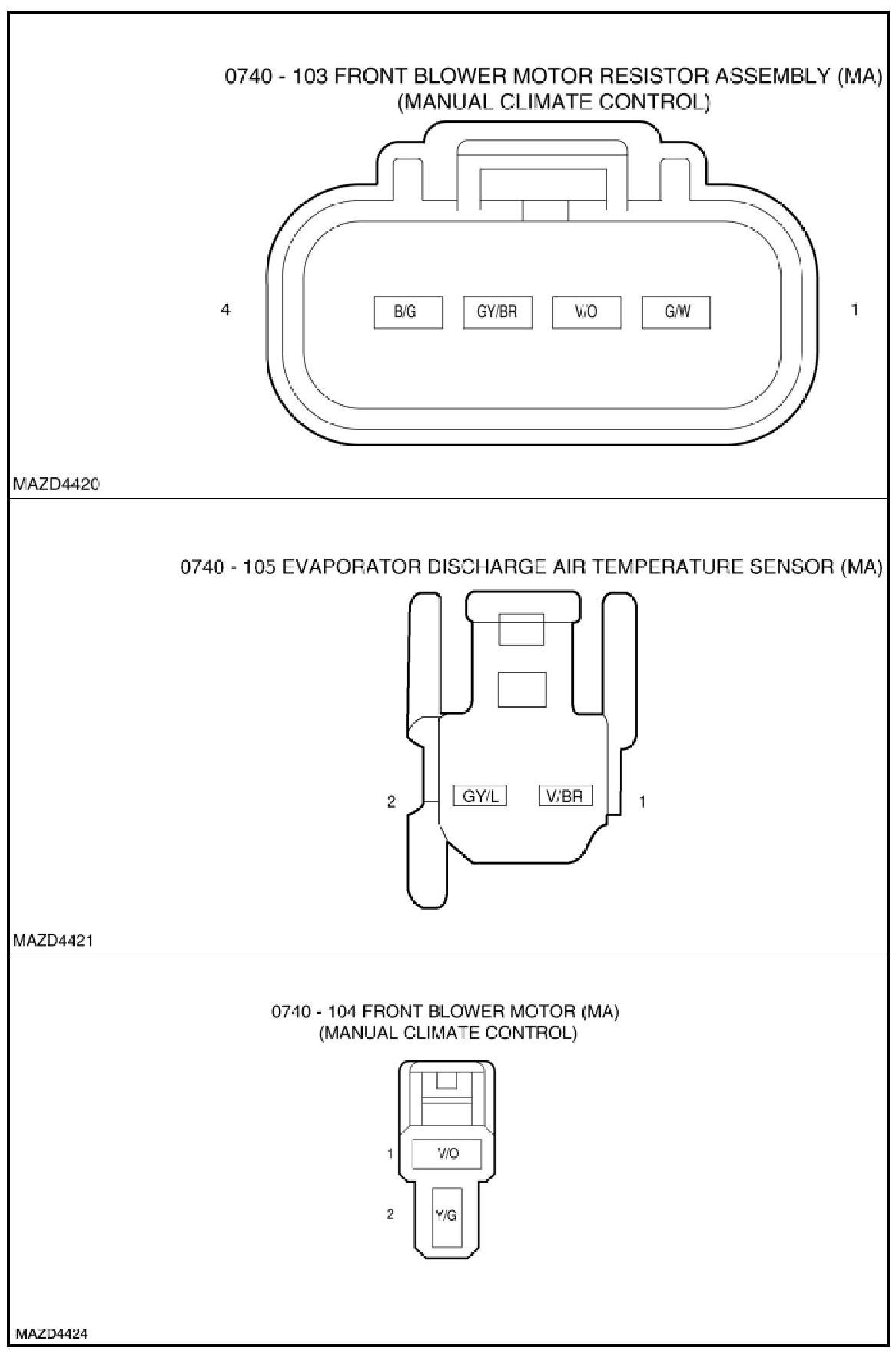

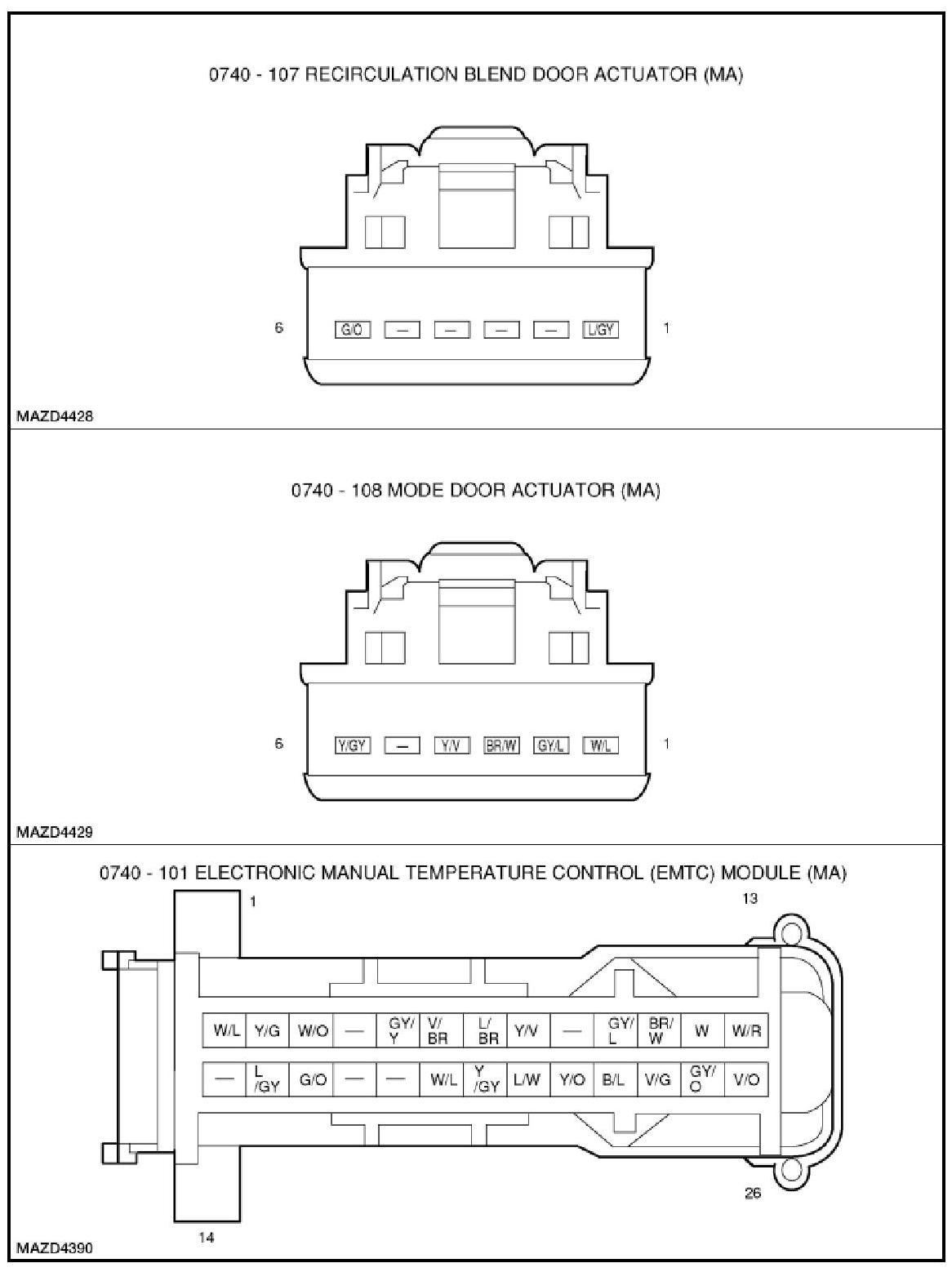

CONNECTOR END VIEWS - MANUAL CLIMATE CONTROL
