Blower Motor Resistor Removal/Installation

BLOWER MOTOR RESISTOR REMOVAL/INSTALLATION

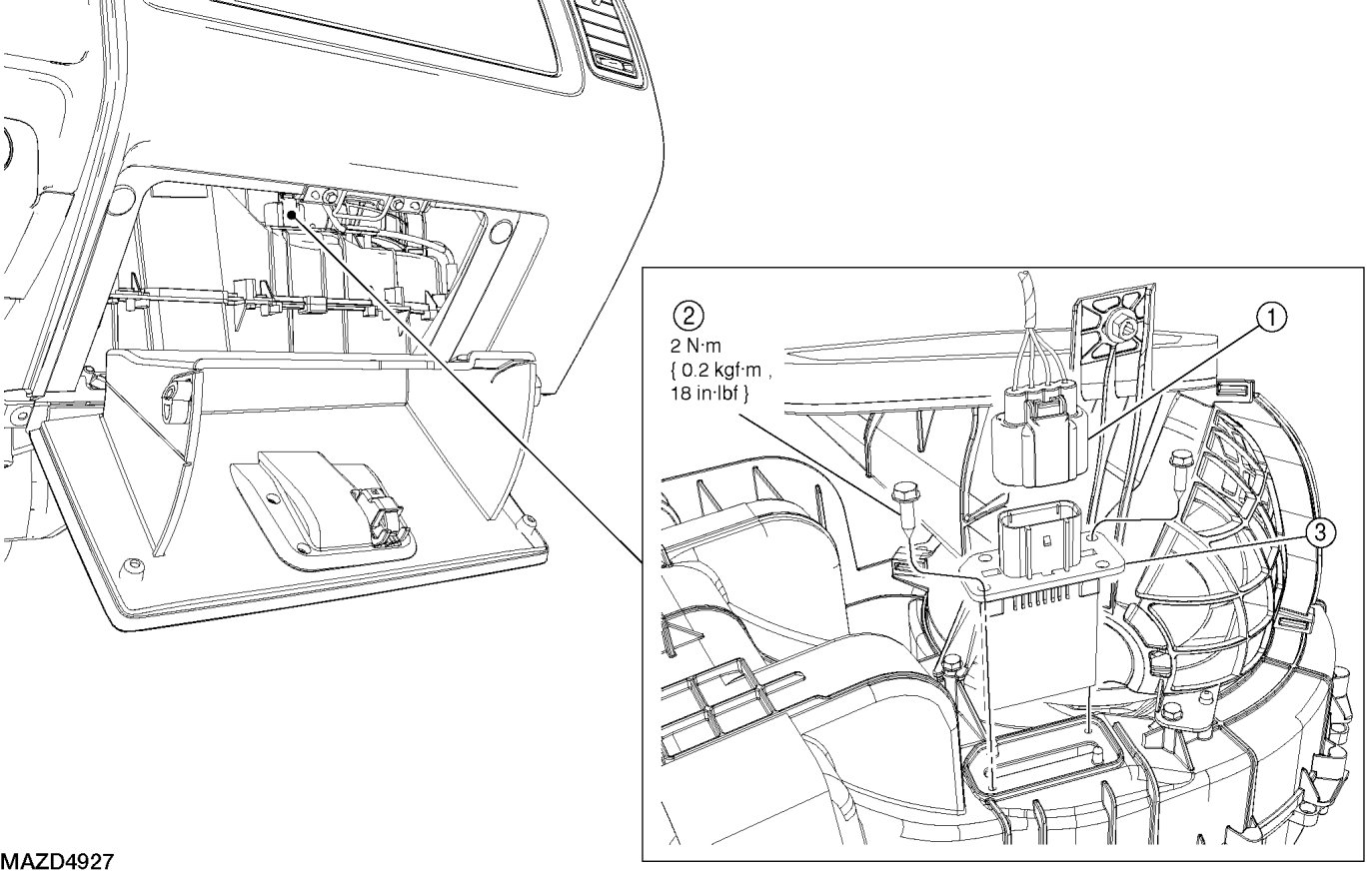

NOTE:Blower motor resistor shown. Blower motor speed control similar.










1. Lower the glove compartment.

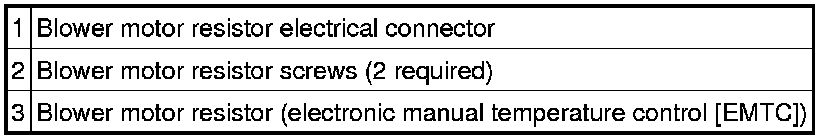

2. Disconnect the blower motor resistor electrical connector.

3. Remove the 2 blower motor resistor screws.

- To install, tighten to 3 Nm {0.3 kgf-m, 27 in-lbf}.

4. Remove the blower motor resistor.

5. To install, reverse the removal procedure.
