Piston Ring-To-Groove Clearance

PISTON RING-TO-GROOVE CLEARANCE

NOTE:See Engine Technical Data for correct specifications.

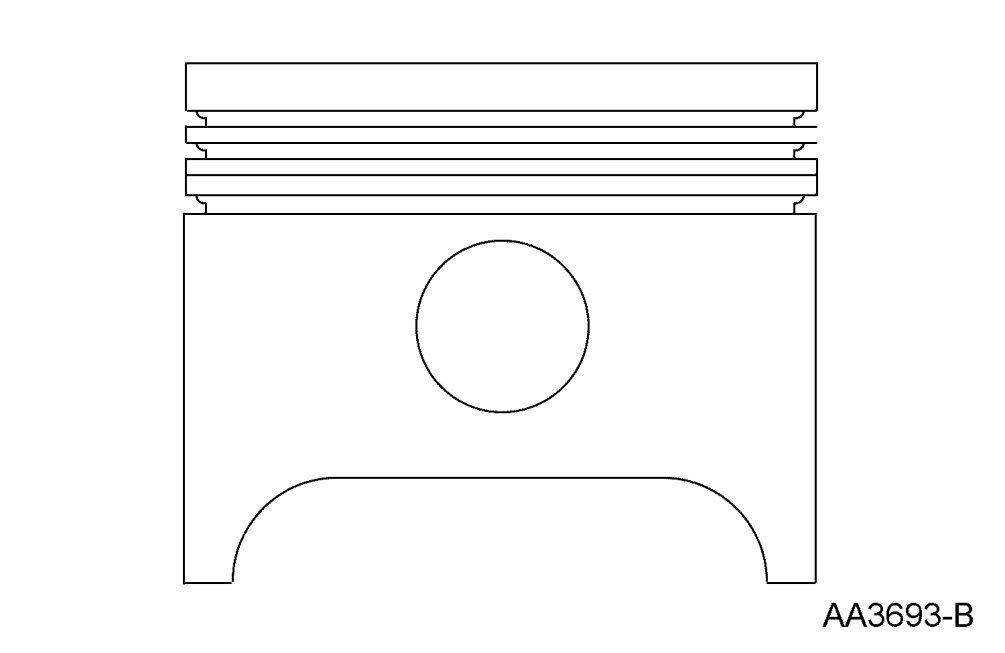

1. Inspect the piston for ring land damage or accelerated wear.

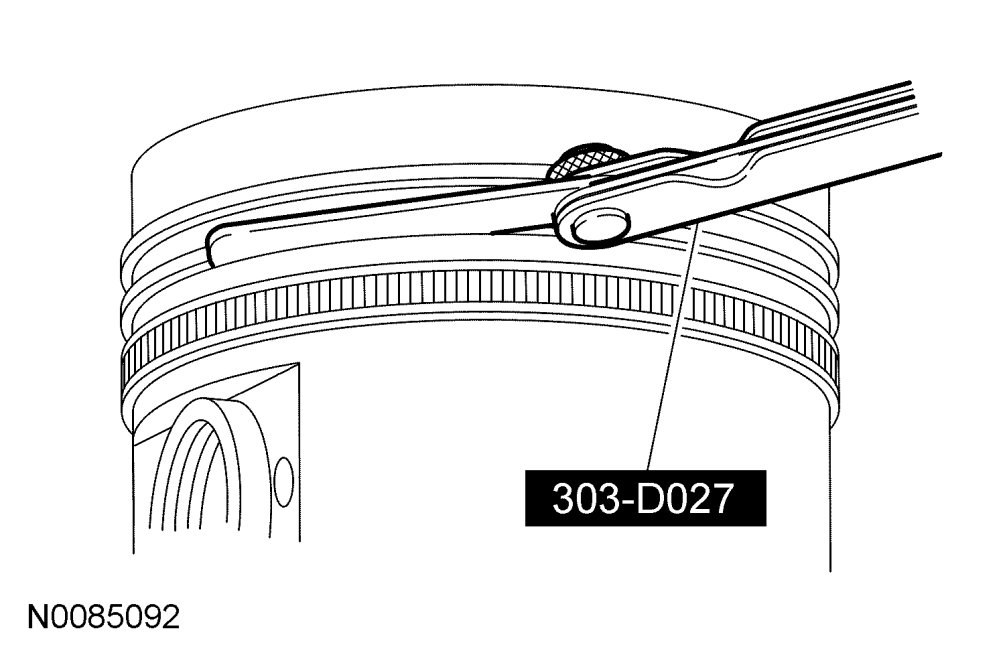

2. Using the Feeler Gauge Set, measure the piston ring-to-groove clearance.
