Mazda Truck
>>
2011
>>
Tribute 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector End Views - Seats
Connector End Views - Seats

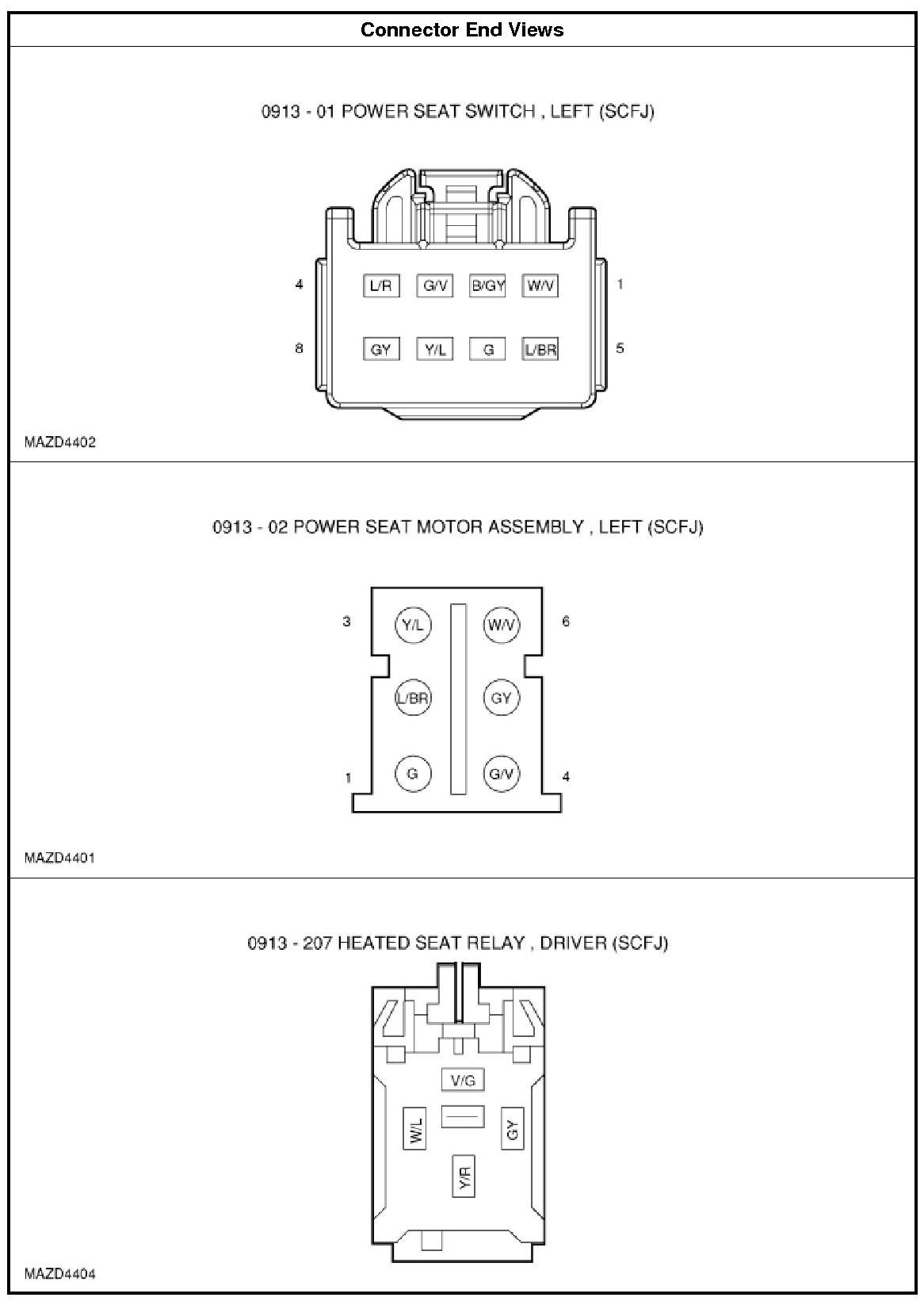

CONNECTOR END VIEWS - SEATS
