Front Seat Cushion Removal/Installation




FRONT SEAT CUSHION REMOVAL/INSTALLATION

NOTE:Seat equipped with power seat track shown, manual seat track similar.

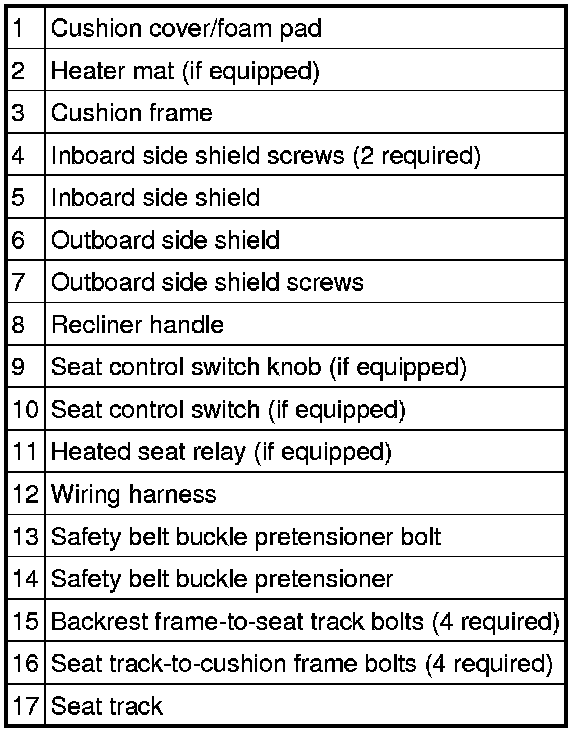

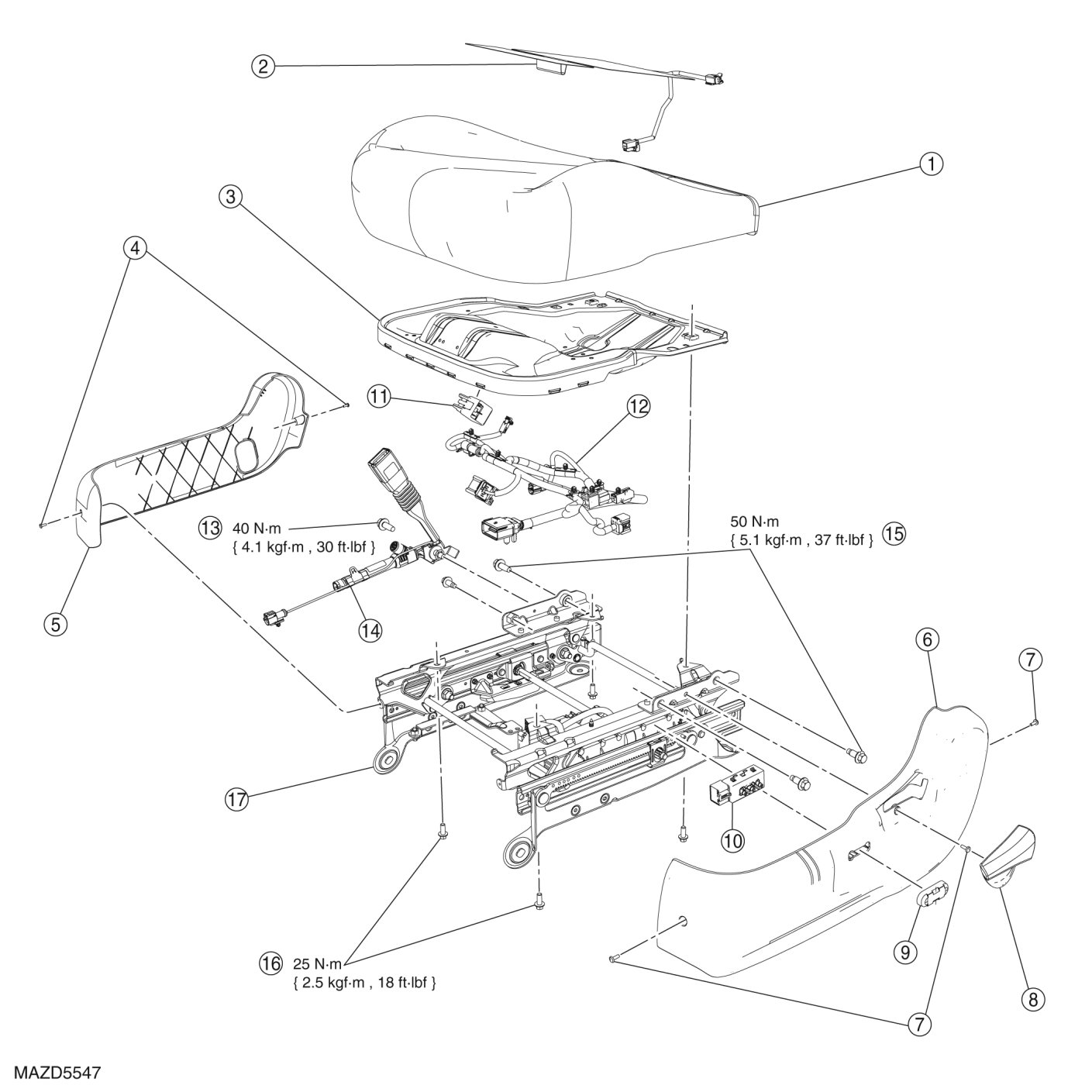

Seat Cushion - Driver

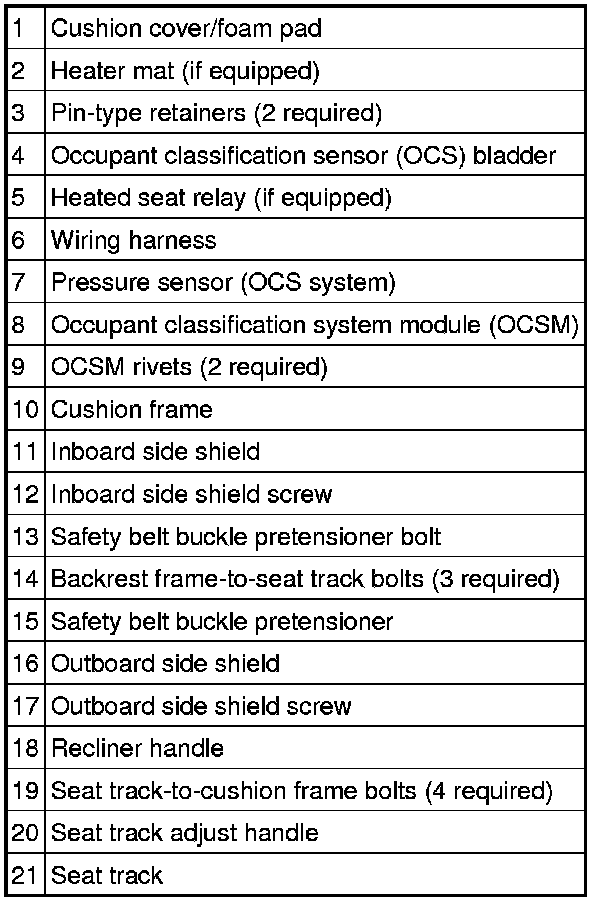

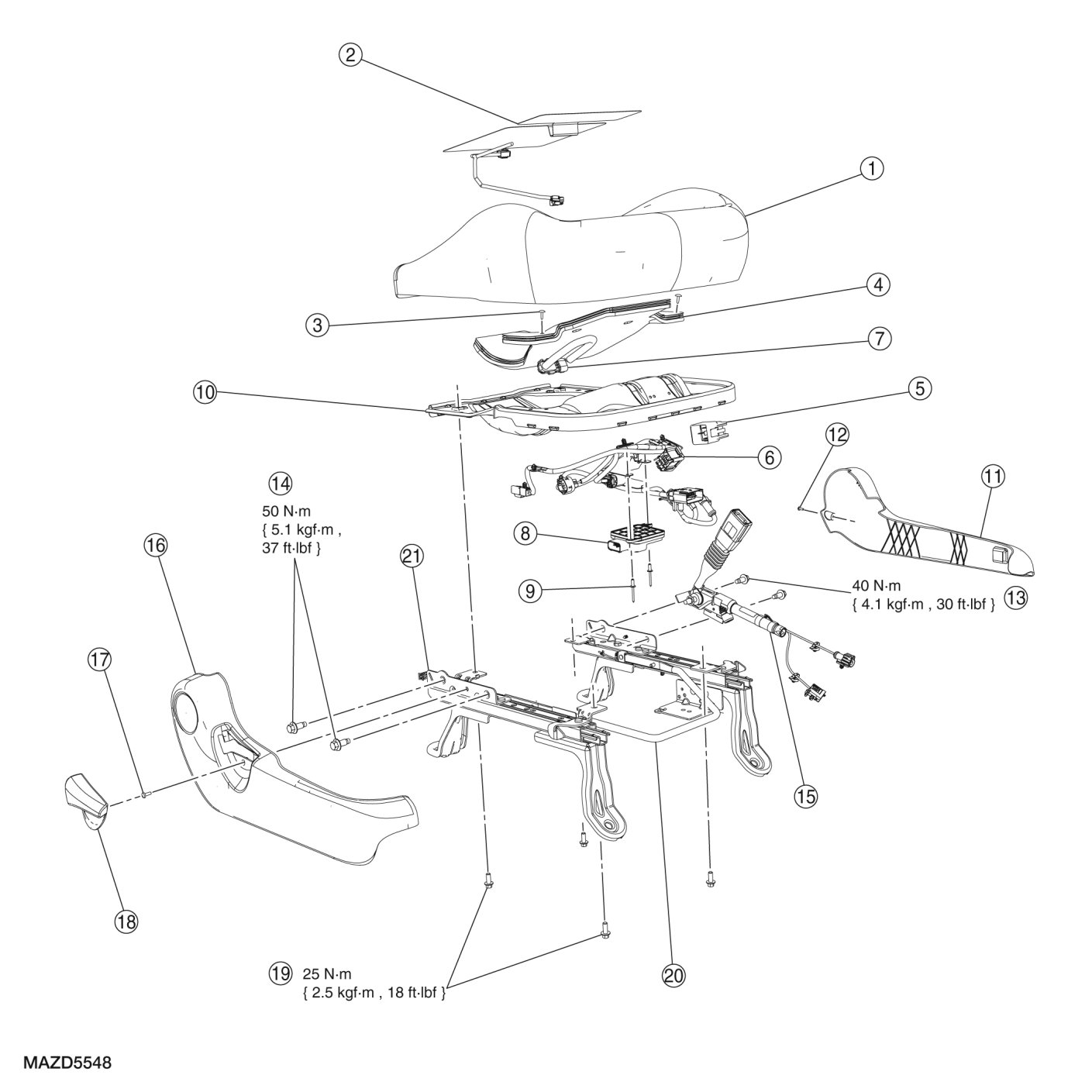

Seat Cushion - Front, Passenger










Removal/Installation

CAUTION:To prevent system failure, it is necessary to carry out the Occupant Classification Sensor (OCS) system reset when a front passenger seat cushion is disassembled, a new trim cover installed or an OCS system service kit is installed. A scan tool is used to carry out the OCS system reset command.

All seats

1. Remove the front seat. See Removal and Replacement.

Passenger seat

NOTE:To identify between a production OCS system and a service OCS system (OCS service kit) inspect the electrical connector. A production OCS system allows the disconnect of the OCS module electrical connector. A service OCS system (OCS service kit) has the electrical connector glued to the OCS module. It cannot and should not be disconnected or altered.
NOTE:If removing a production OCS or an OCS service kit, see - Original Equipment Removal/Installation.
1. Disconnect the OCS wiring harness.

- For an original equipment OCS, disconnect the OCS ECU and pressure sensor electrical connectors.

- For an OCS service kit, disconnect the seat wire harness OCS electrical connector from the service part OCS electrical connector.

Heated seat

1. If equipped, disconnect the backrest heater mat electrical connector.

- Access the electrical connector by slightly pulling the wiring harness out from the backrest trim cover.

2. Disconnect and detach the cushion heater mat electrical connector.

3. Release the locking tab and remove the heated seat relay from the bracket on the cushion frame.

All seats

1. Detach all wiring harness pin-type retainers from the seat cushion frame.

- Note wiring harness routing for installation.

2. Remove the 4 front seat track bolts.

- To install, tighten to 25 Nm {2.5 kgf-m, 18 ft-lbf}.

3. Remove the front seat cushion.

4. To install, reverse the removal procedure.

5. Install the front seat. If a passenger seat has been serviced, do not prove out the Supplemental Restraint System (SRS) at this time. See Removal and Replacement.

Passenger seat

WARNING:Make sure the front passenger seat repair is complete, the seat and all attached components (head restraint, seat side shield, etc.) are correctly assembled, and the seat is correctly installed to the vehicle before carrying out the System Reset. Failure to follow these instructions may result in incorrect operation of the occupant classification sensor (OCS) system and increases the risk of serious personal injury or death in a crash.

WARNING:Install a new occupant classification sensor (OCS) system service kit as a complete assembly. Never install only part of the kit components. Failure to follow this instruction may result in incorrect operation of the OCS system and increases the risk of serious personal injury or death in a crash.

CAUTION:To prevent system failure, the following precautions must be taken before carrying out the occupant classification sensor (OCS) system reset:

- Make sure the voltage to the Occupant classification system module (OCSM) is above 8 volts and less than 18 volts.
- Make sure the OCS system is not at a temperature below 6°C (42°F) or above 36°C (97°F) when initiating the OCS system reset process. If the vehicle has been exposed to extreme cold or hot temperatures, the vehicle must be exposed and kept at a temperature within the limits, 6°C to 36°C (42°F to 97°F) for a minimum of 30 minutes.
- Make sure nothing is present on the passenger seat before carrying out the OCS system reset and nothing is placed on the seat during the process.
- Make sure a minimum 8-second time period has passed after cycling the ignition switch ON before carrying out the OCS system reset process.

1. Carry out the OCS system reset.

- With the front passenger seat empty, use a scan tool to trigger the active command.

1. If the first system reset attempt was unsuccessful, carry out a thorough visual inspection of the following and repair any concerns found.

- OCS system connector and wiring for damage
- Pressure sensor hose for kinks and/or damage
- Seat-related wiring harness and body wiring harness terminals and connectors for damage

All seats

NOTE:The ignition switch must be cycled after the OCS system reset.
1. Carry out a second OCS system reset. If the second attempt is unsuccessful, install a new OCS system service kit. See - Service Kit Removal/Installation.

2. Prove out the SRS as follows:

- Turn the ignition key from ON to OFF. Wait 10 seconds, then turn the key back to ON and visually monitor the air bag indicator with the air bag modules installed. The air bag warning indicator will light continuously for approximately 6 seconds and then turn off. If an air bag SRS fault is detected, the air bag warning indicator will:

- fail to light.
- remain lit continuously.
- flash.

- The flashing might not occur until approximately 30 seconds after the ignition switch has been turned from the OFF to the ON position. This is the time required for the Restraint Control Module (RCM) to complete the testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag warning indicator and any SRS fault discovered must be diagnosed and repaired.
- Clear all continuous DTCs from the RCM and OCSM using a scan tool.
