Mazda Truck
>>
2011
>>
Tribute 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector End Views - Power Door Locks
Connector End Views - Power Door Locks

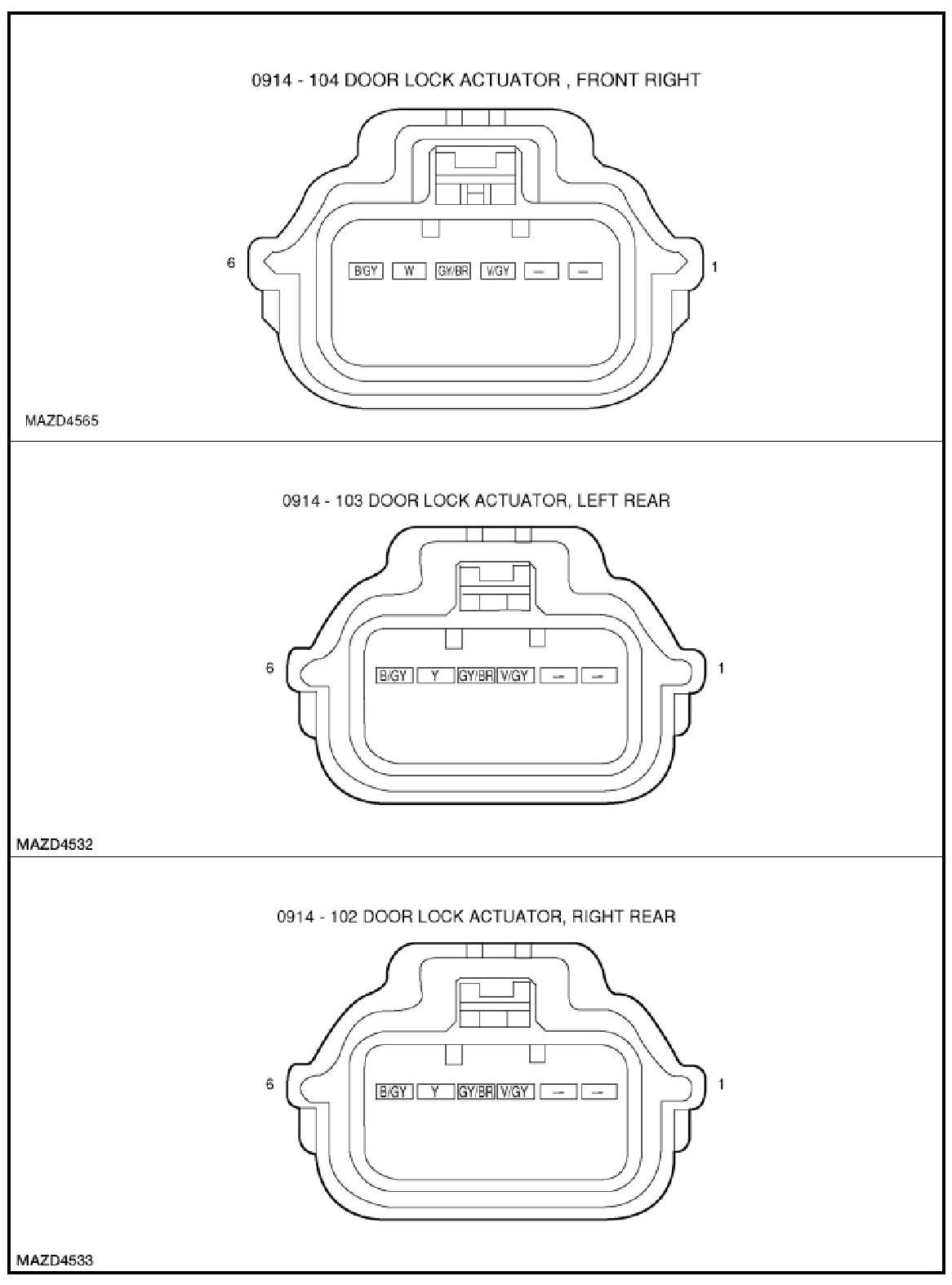

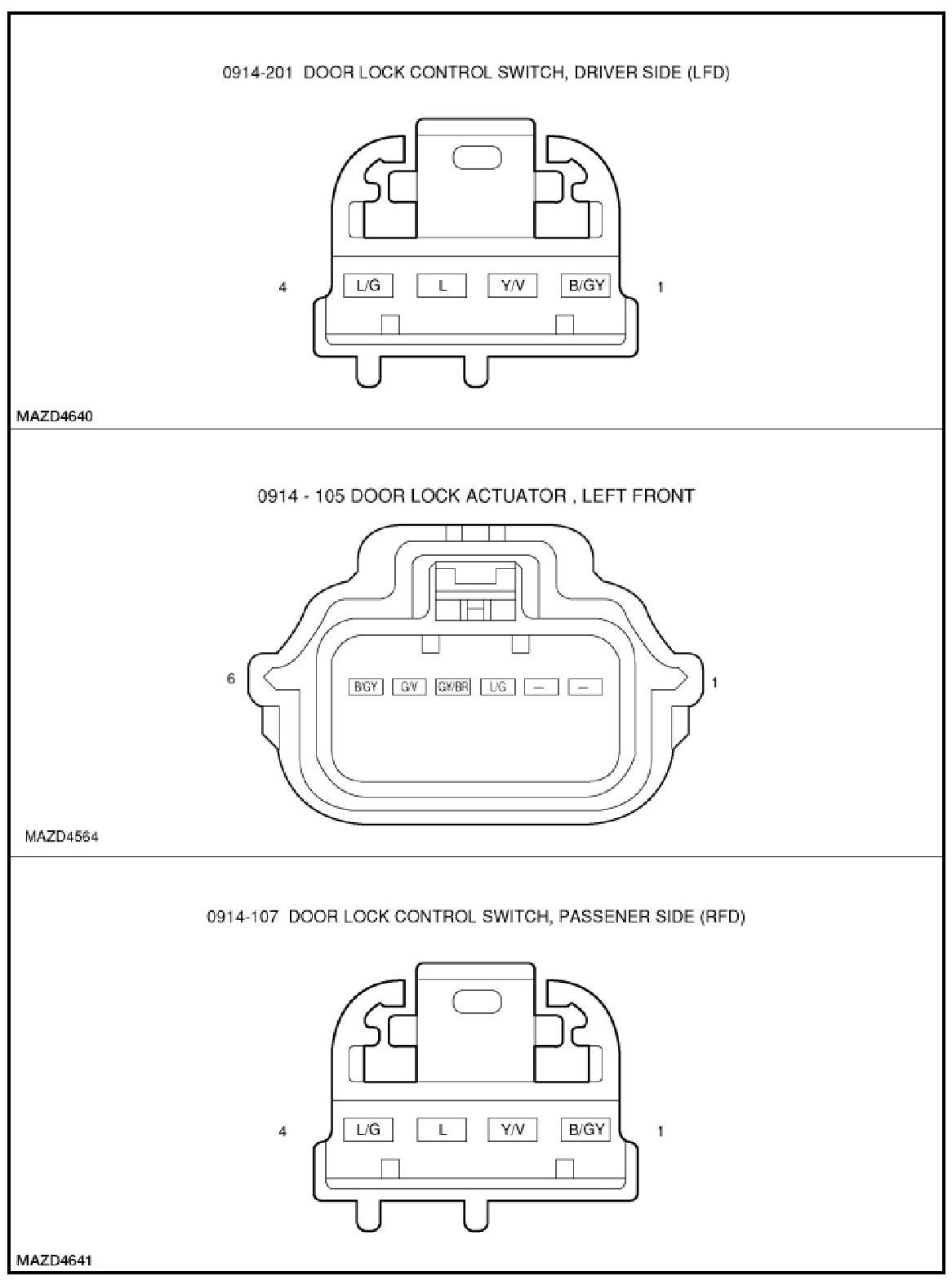

CONNECTOR END VIEWS - POWER DOOR LOCKS
