Rear Door - Exploded View
Rear Door - Exploded View

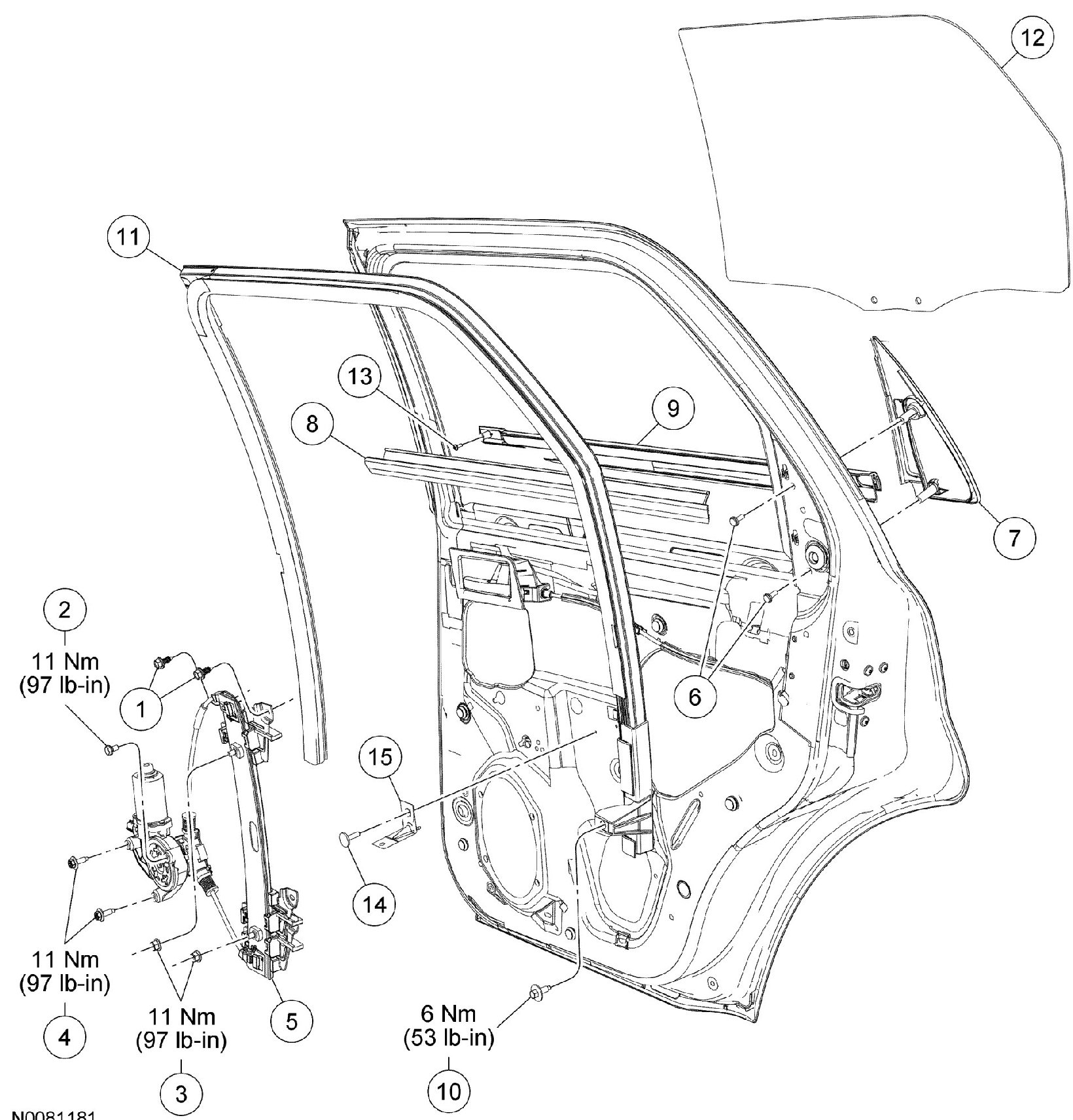

Glass, Frames and Mechanisms - Exploded View, Rear Door
1. For additional information, see the procedures.
