Front Door: Locations

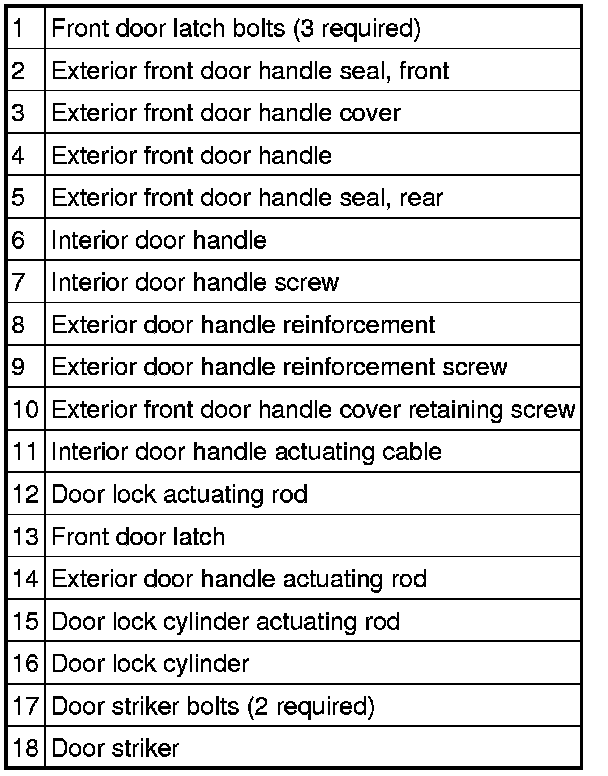

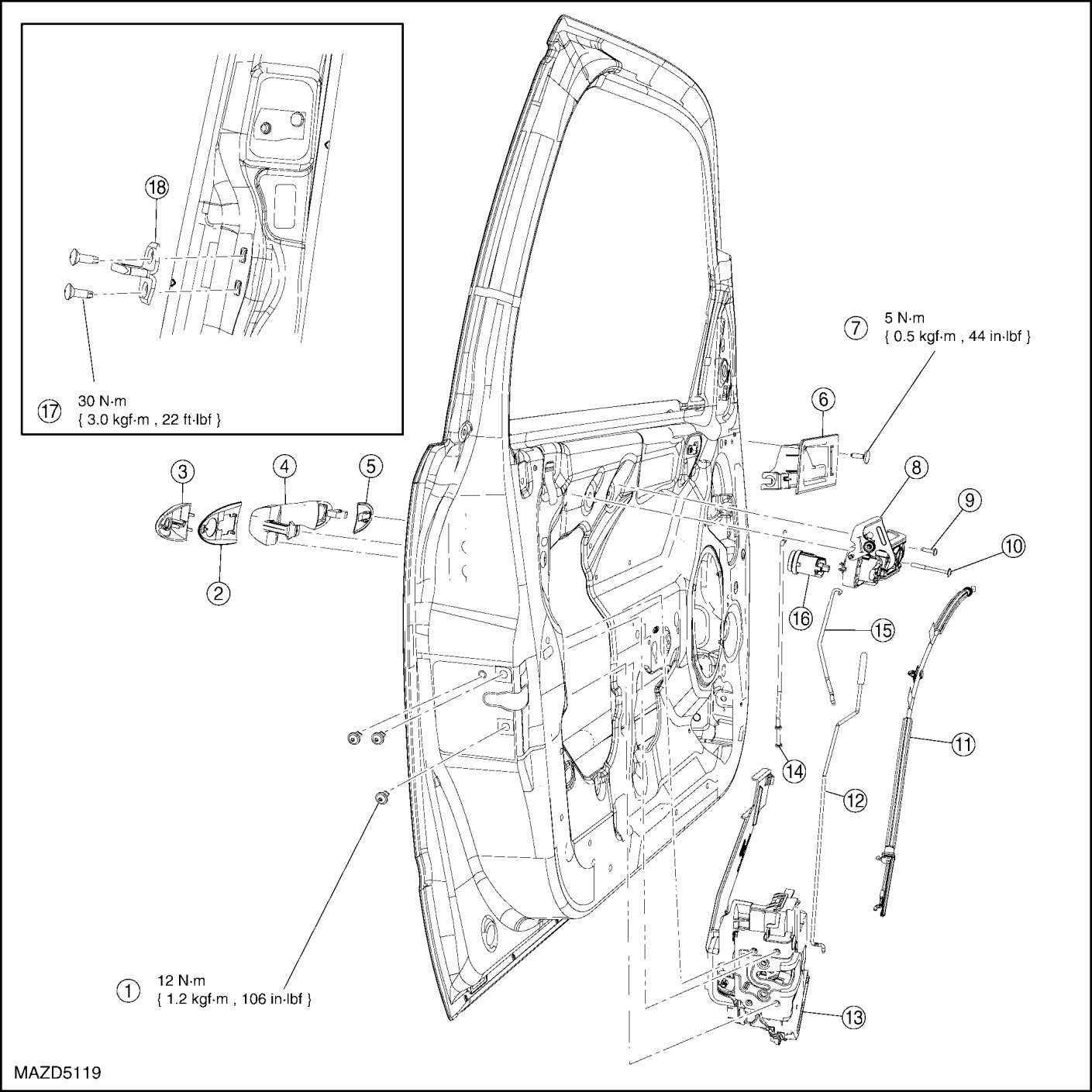

FRONT DOOR HANDLES, LOCKS AND LATCHES - EXPLODED VIEW









1. For additional information, see the procedures.
