Radio/Stereo: Service and Repair

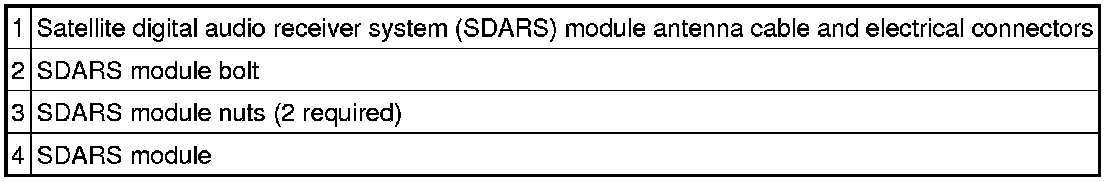

SATELLITE DIGITAL AUDIO RECEIVER SYSTEM (SDARS) MODULE REMOVAL/INSTALLATION









1. Upload the satellite digital audio receiver system (SDARS) module configuration to the scan tool. See Programmable Module Installation (PMI).

NOTE:Module configuration is required when a new SDARS module is being installed.
2. Disconnect the SDARS module antenna cable and electrical connectors.

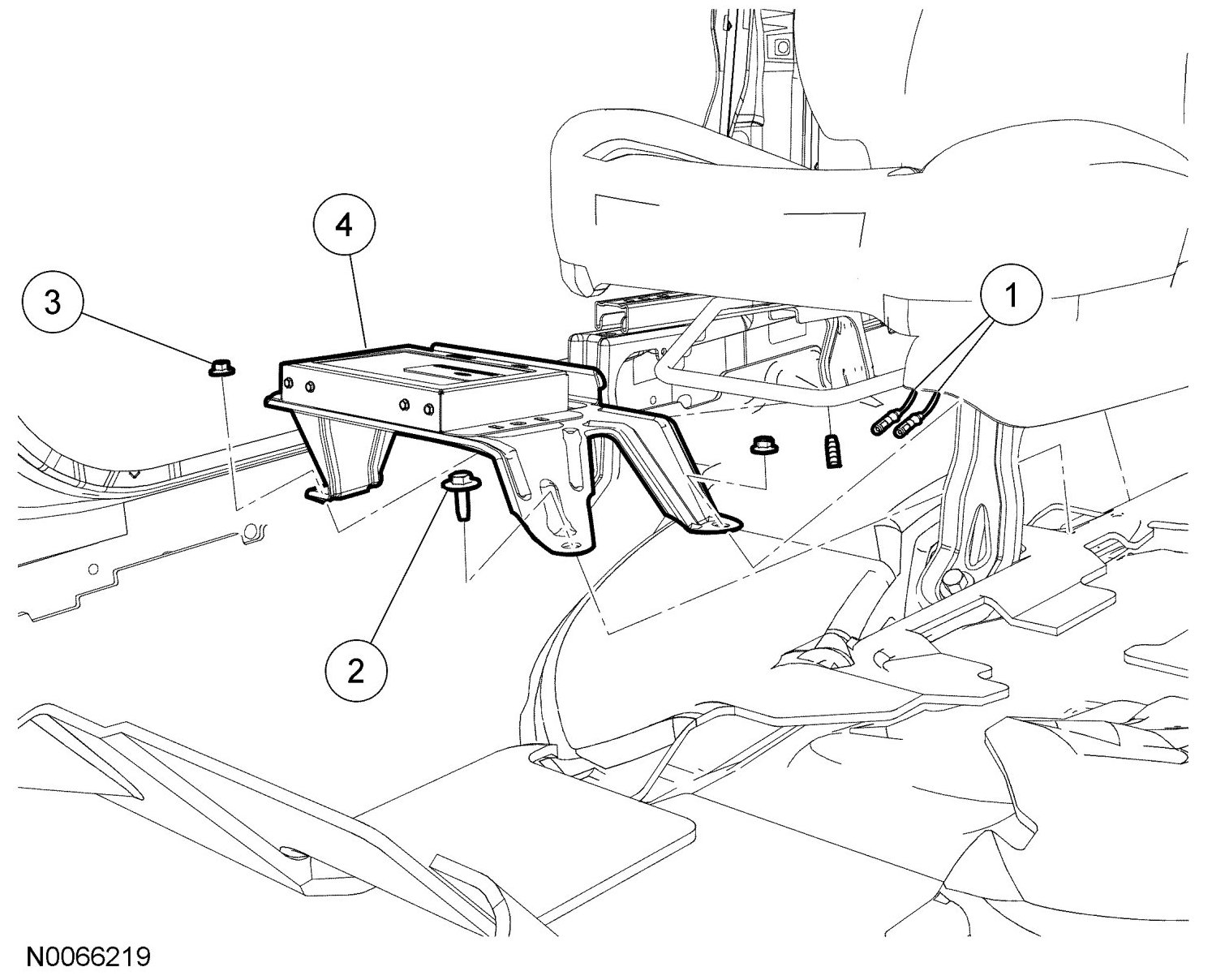

3. Remove the 2 nuts, the bolt, and the SDARS module.

NOTE:Move the passenger seat all the way back to access the SDARS module.
4. To install, reverse the removal procedure.

- Download the configuration information to the SDARS module. See Programmable Module Installation (PMI).
