Amplifier: Service and Repair

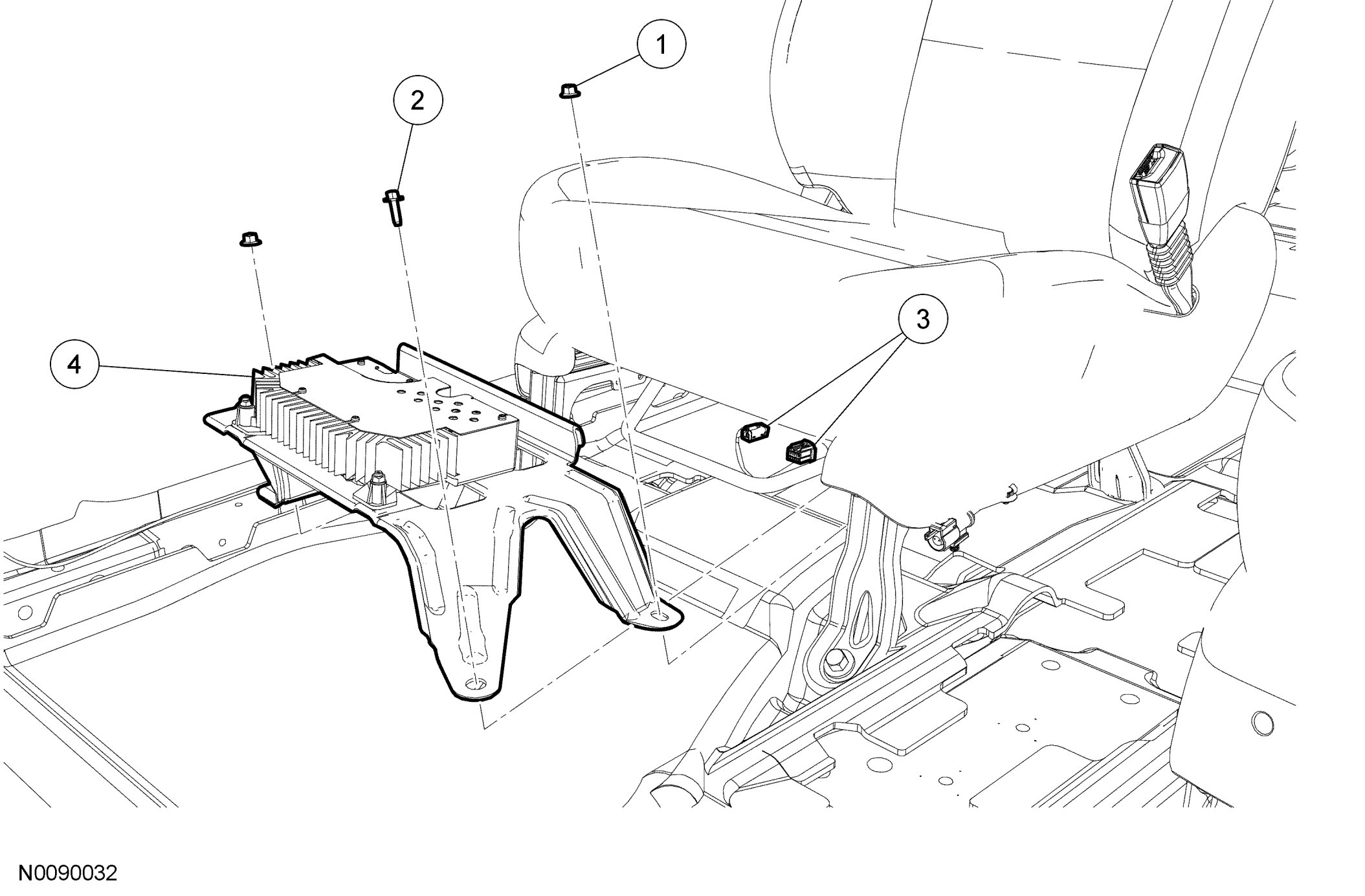

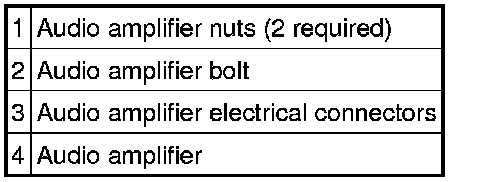

AUDIO AMPLIFIER REMOVAL/INSTALLATION









1. Disconnect the audio amplifier electrical connectors.

2. Remove the 2 nuts, the bolt, and the audio amplifier.

NOTE:Move the passenger seat all the way back to access.
3. To install, reverse the removal procedure.
