Initial Inspection and Diagnostic Overview

Universal Transmitter

Inspection and Verification

1. Verify the correct programing procedure was used. Refer to Universal Transmitter Programming. If necessary, contact the Lear Car2U(R) Customer Service Center.

2. Verify the customer concern.

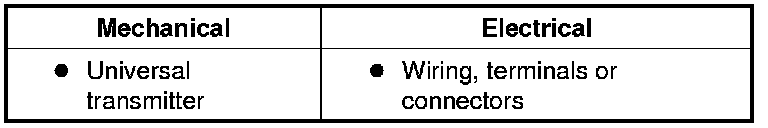

3. Visually inspect for obvious signs of mechanical or electrical damage.Visual Inspection Chart





4. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

5. If the cause is not visually evident, verify the symptom and - Symptom Troubleshooting Chart - Universal Transmitter.
