Connector End Views - Passive Anti-Theft System (PATS)
Connector End Views - Passive Anti-Theft System (PATS)

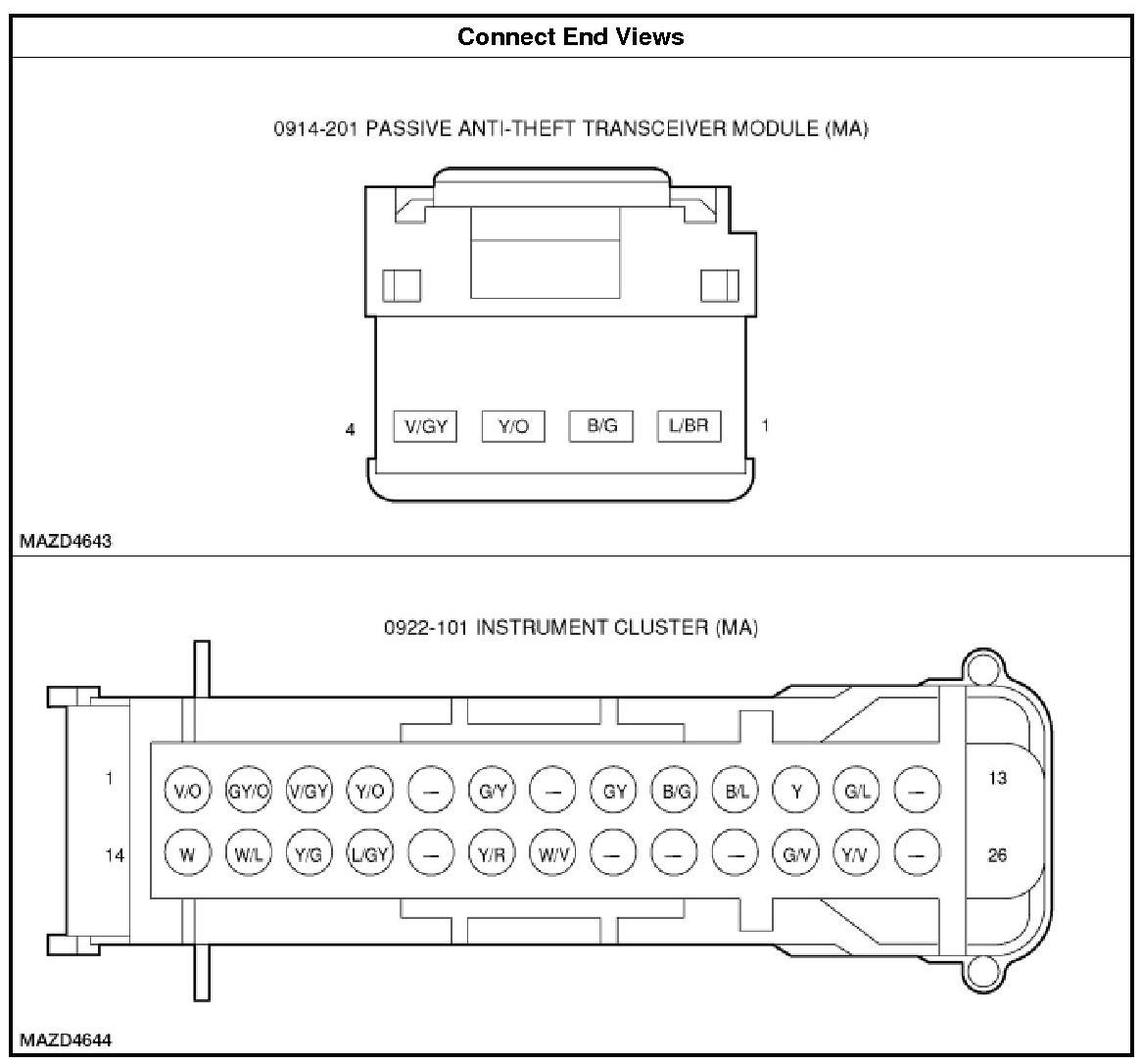

CONNECTOR END VIEWS - PASSIVE ANTI-THEFT SYSTEM (PATS)
