B2103

PINPOINT TEST 1: DTC B2103 - ANTENNA NOT CONNECTED

Normal Operation

The passive anti-theft system (PATS) transceiver reads the PATS key when the key is turned to START or ON.

- DTC B2103 (Antenna Not Connected) - sets when there has been a PATS transceiver antenna failure. The PATS transceiver may need to be replaced.

Possible Causes
- PATS transceiver

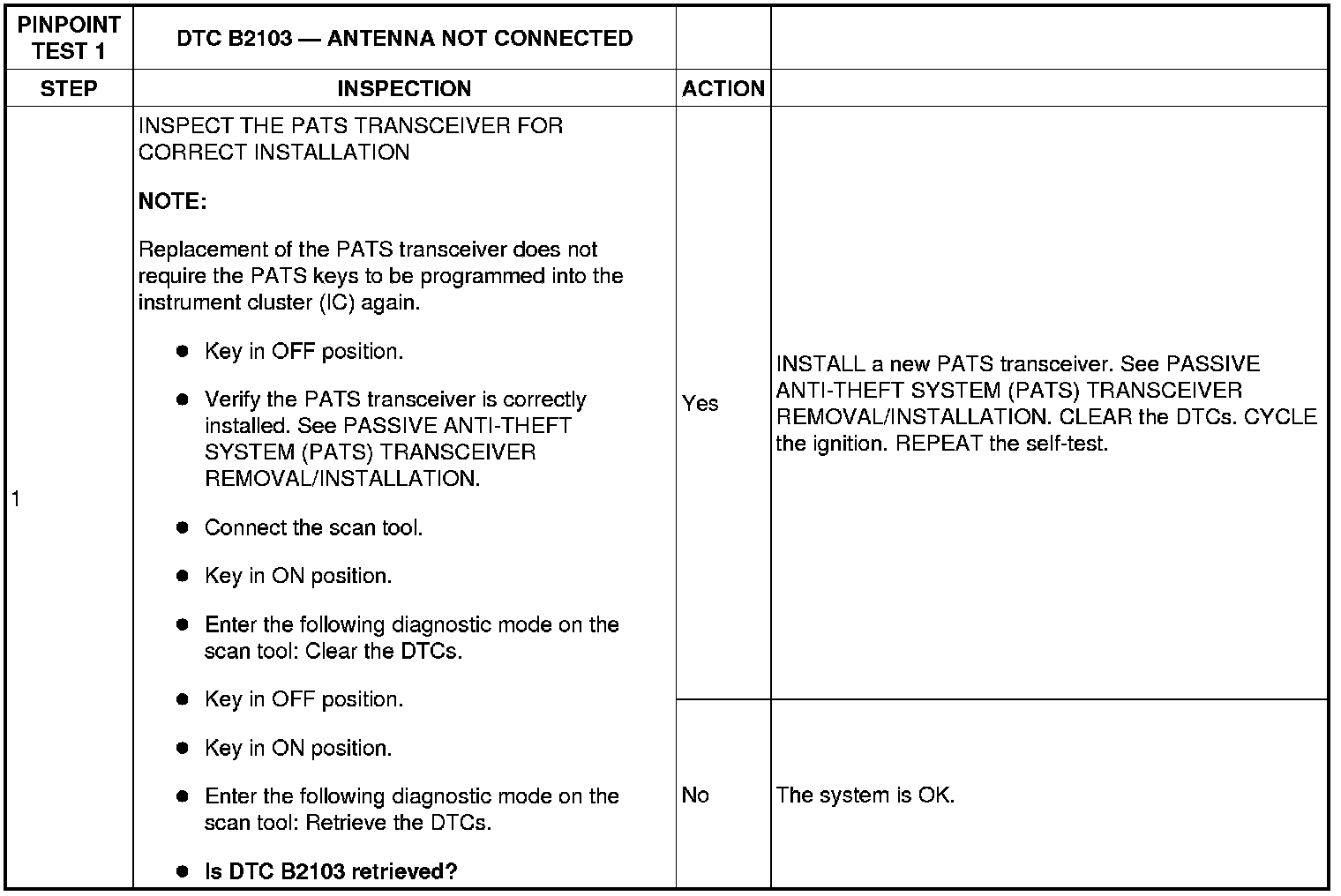

Diagnostic Procedure
