Auxiliary Input / Output Jack: Testing and Inspection

AUXILIARY JACK INSPECTION

1. Disconnect the negative battery cable.

2. Remove the console cover. Console Cover Removal/Installation

3. Remove the auxiliary jack. Auxiliary Jack Removal/Installation

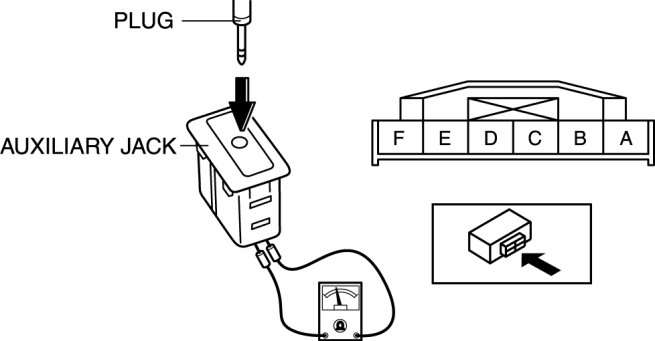

4. Connect a commercially-available nonresistant plug to the auxiliary jack.

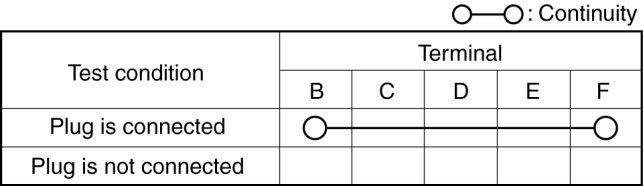

5. Verify that the continuity between the auxiliary jack terminals is as indicated in the table.






- If not as indicated in the table, replace the auxiliary jack.
