Auxiliary Terminal Unit Removal/Installation

AUXILIARY TERMINAL UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove auxiliary terminal unit panel. (See )

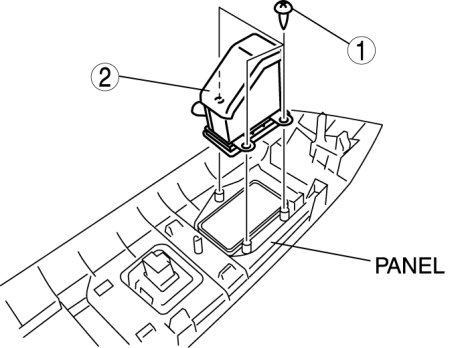

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
