Rear Washer Motor Inspection

REAR WASHER MOTOR INSPECTION

1. Disconnect the negative battery cable.

2. Partially peel back the splash shield (RH).

3. Disconnect the rear washer motor connector.

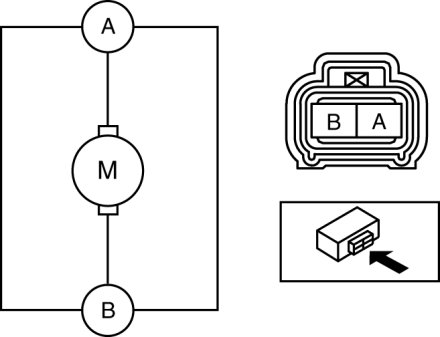

4. Connect battery positive voltage to rear washer motor terminal A and terminal B to ground.






5. Verify that the rear washer motor operates normally.

- If there is any malfunction, replace the rear washer motor. Rear Washer Motor Removal/Installation
