Home >> Mazda Truck >> 2011 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Description and Operation

Transfer Case: Description and Operation

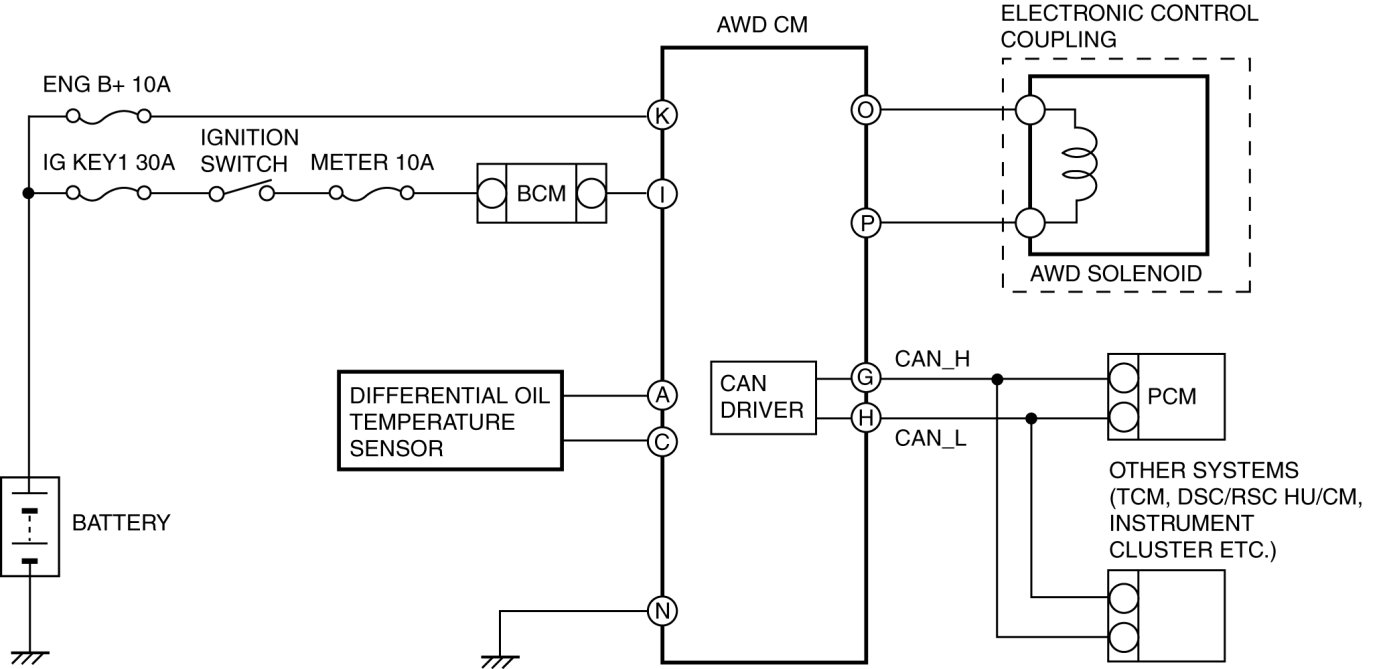

ELECTRONIC AWD CONTROL SYSTEM WIRING DIAGRAM
