Axle Shaft Assembly: Tools and Equipment




DRIVELINE/AXLE SST

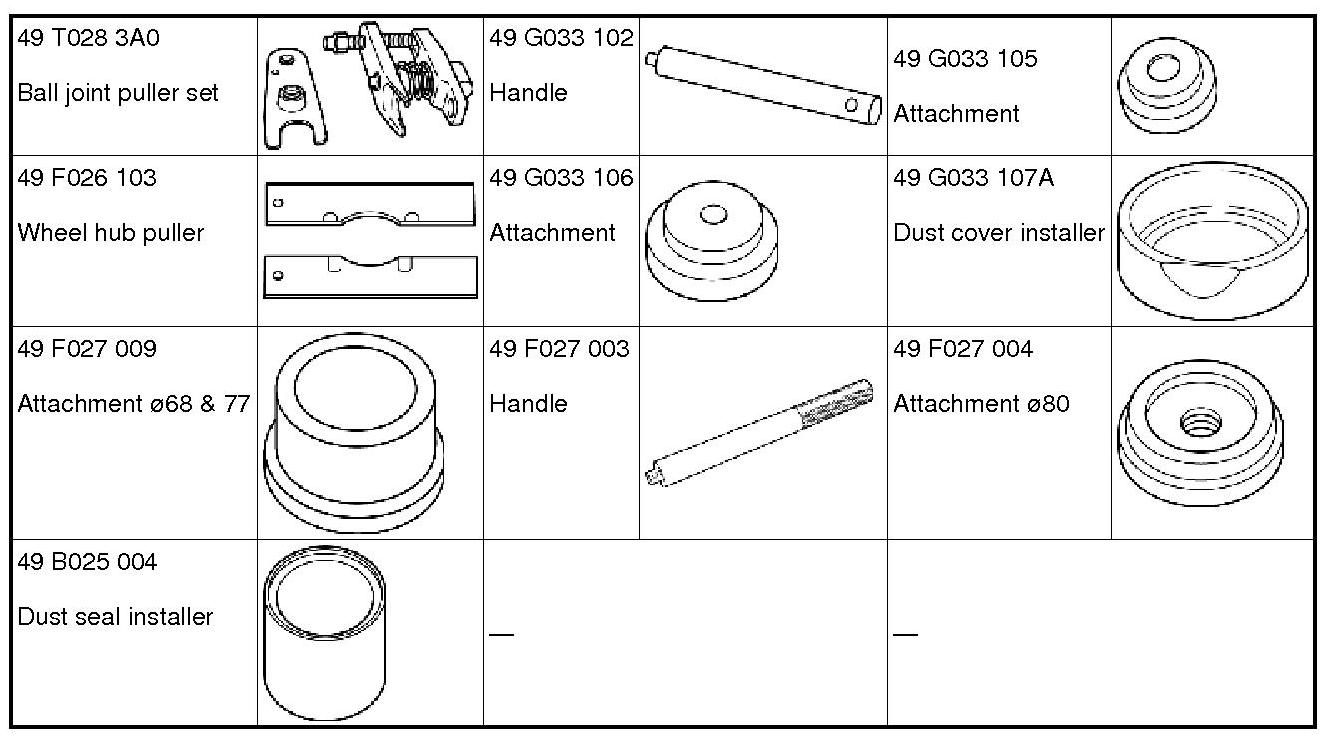

Front and Rear Axle

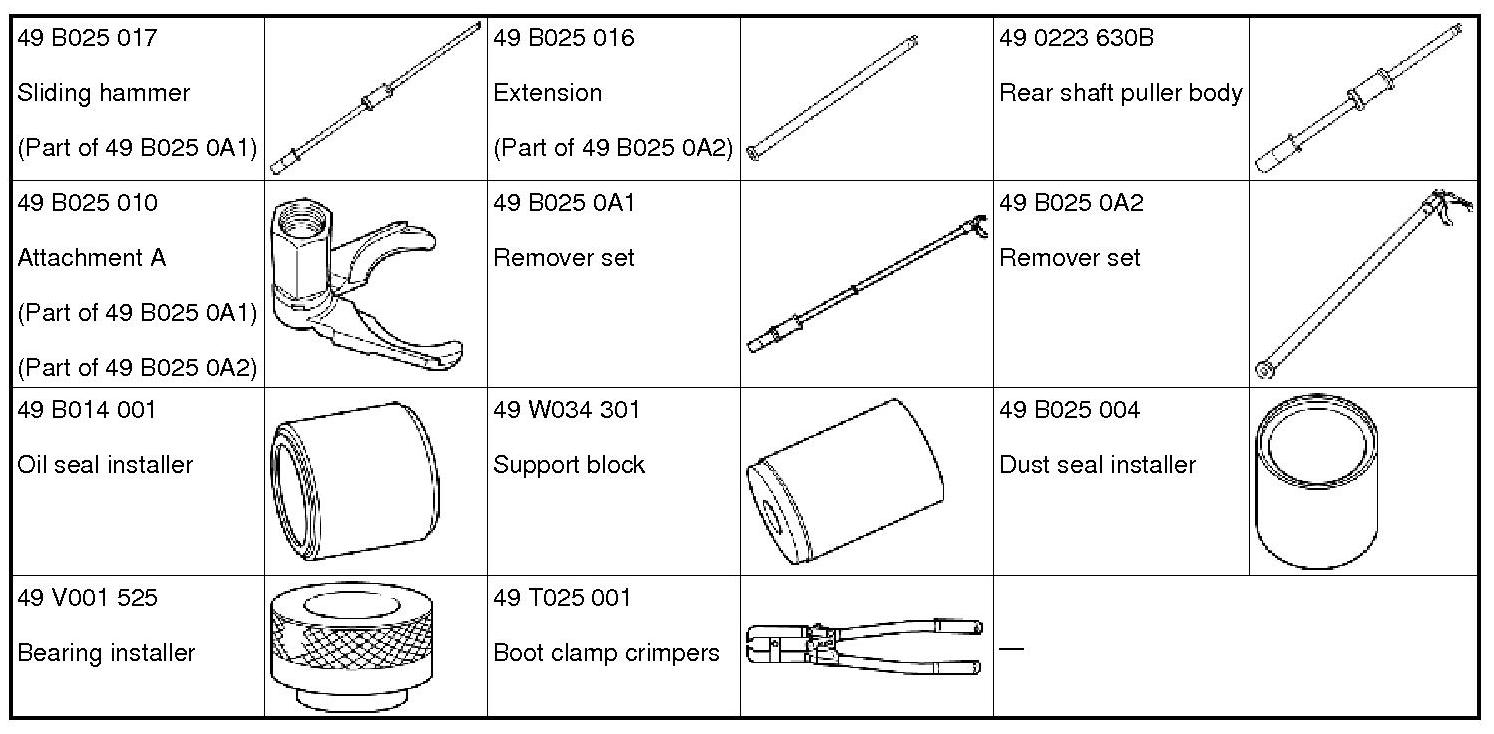

Drive Shaft

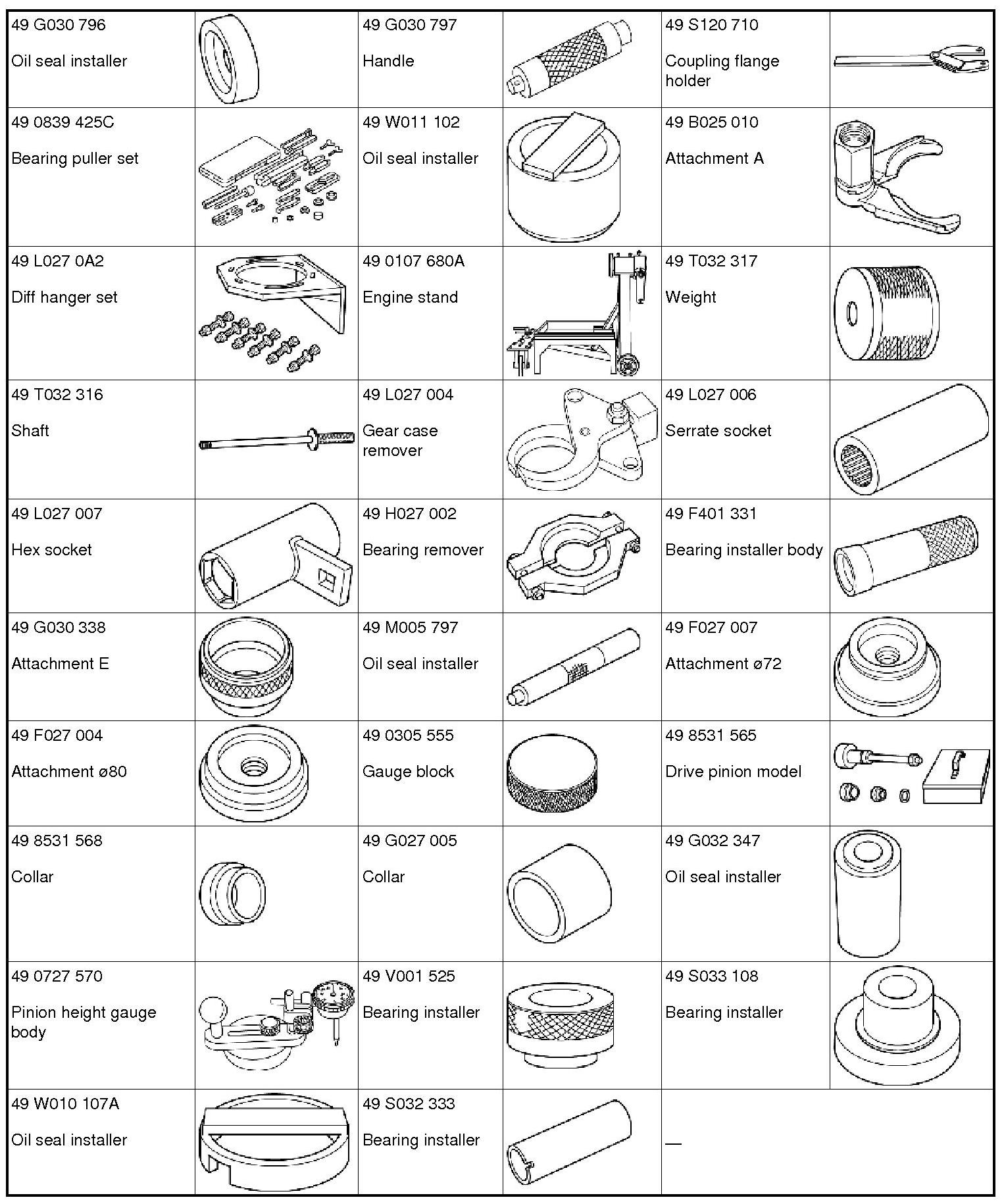

Differential





Transfer
