Automatic Transaxle Control System Wiring Diagram

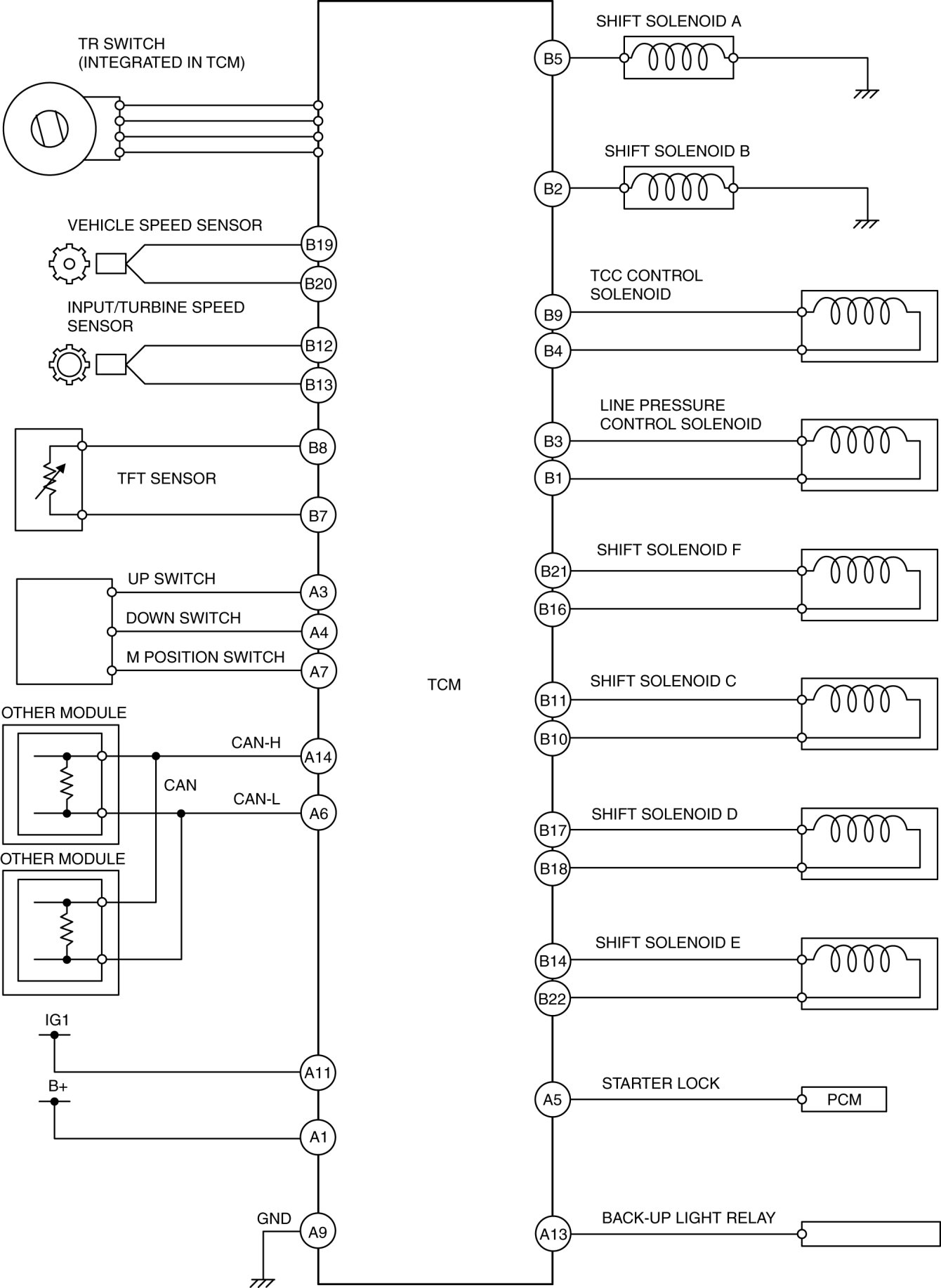

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM [AY6A-EL, AY6AX-EL]
