Intake Manifold

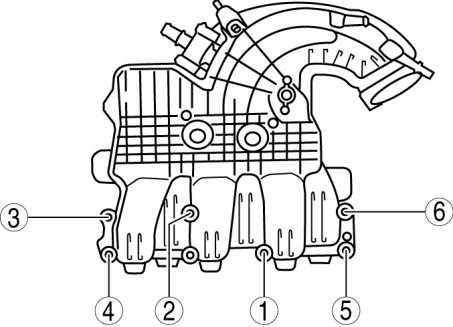

Tighten the intake manifold installation bolts in the order shown.






Tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}

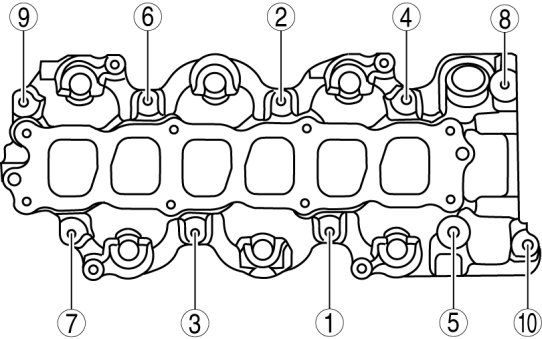

Tighten the dynamic chamber installation bolts in the order shown.






Tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}
