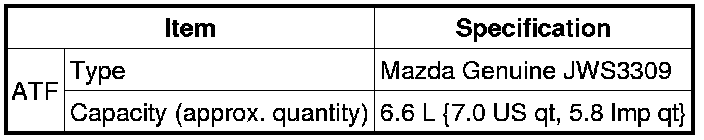

TRANSMISSION/TRANSAXLE TECHNICAL DATA
Automatic Transaxle [AY6A-EL, AY6AX-EL]

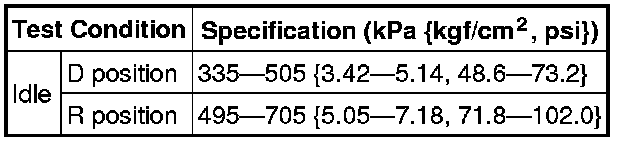

Line pressure

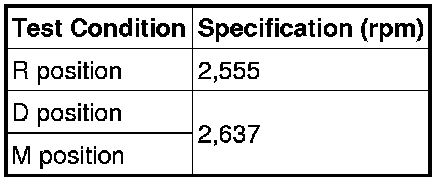

Stall speed
Time lag
