Alignment

FRONT WHEEL ALIGNMENT [AWD]

Front wheel alignment [AWD] (Unloaded)*1





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

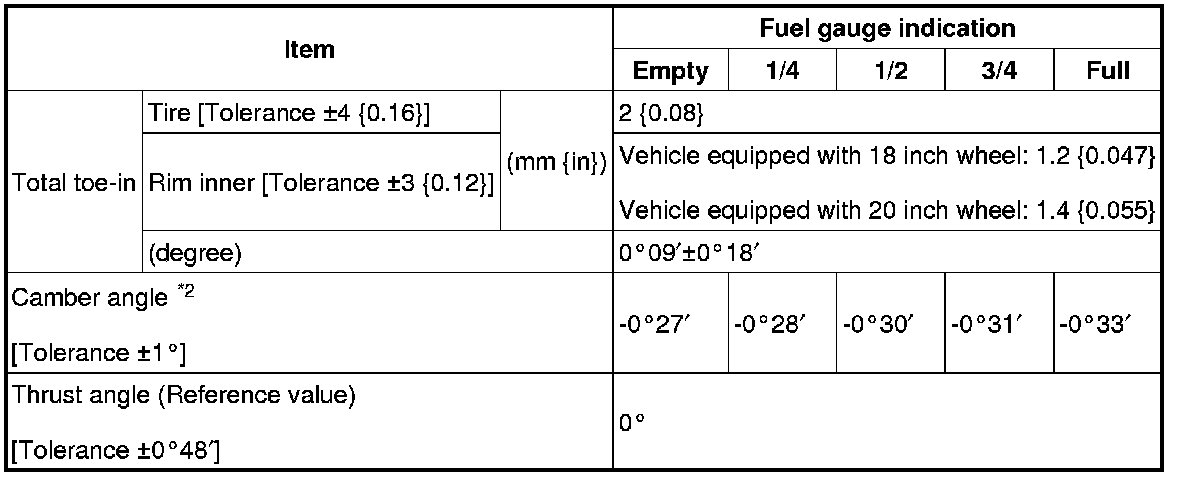

REAR WHEEL ALIGNMENT

Rear wheel alignment [AWD] (Unloaded) *1





*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.


RIDE HEIGHT

Measure height H from the center of the wheel to the fender brim.






Verify that the difference between the left and right dimension H is within the specification.

Standard 10 mm {0.39 in} or less
