Home >> Mazda Truck >> 2011 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Description and Operation

Emission Control Systems: Description and Operation

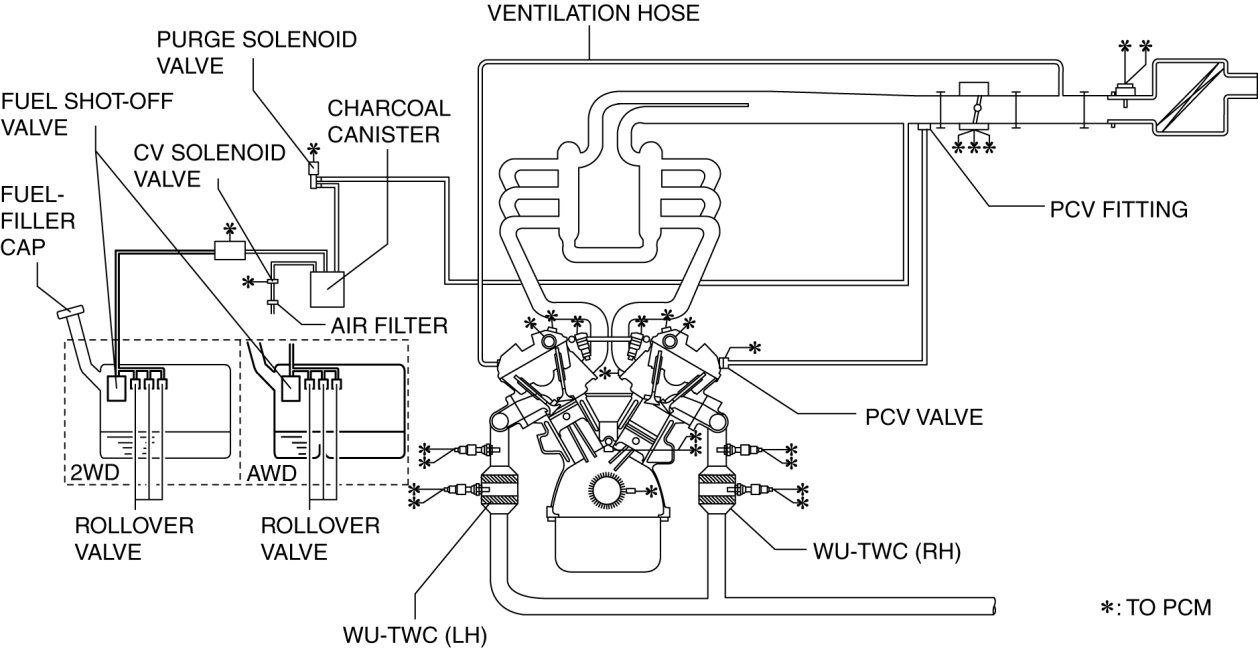

EMISSION SYSTEM DIAGRAM [MZI-3.7]
