Mazda Truck
>>
2011
>>
CX-9 AWD V6-3.7L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Quick Diagnostic Chart
Quick Diagnostic Chart

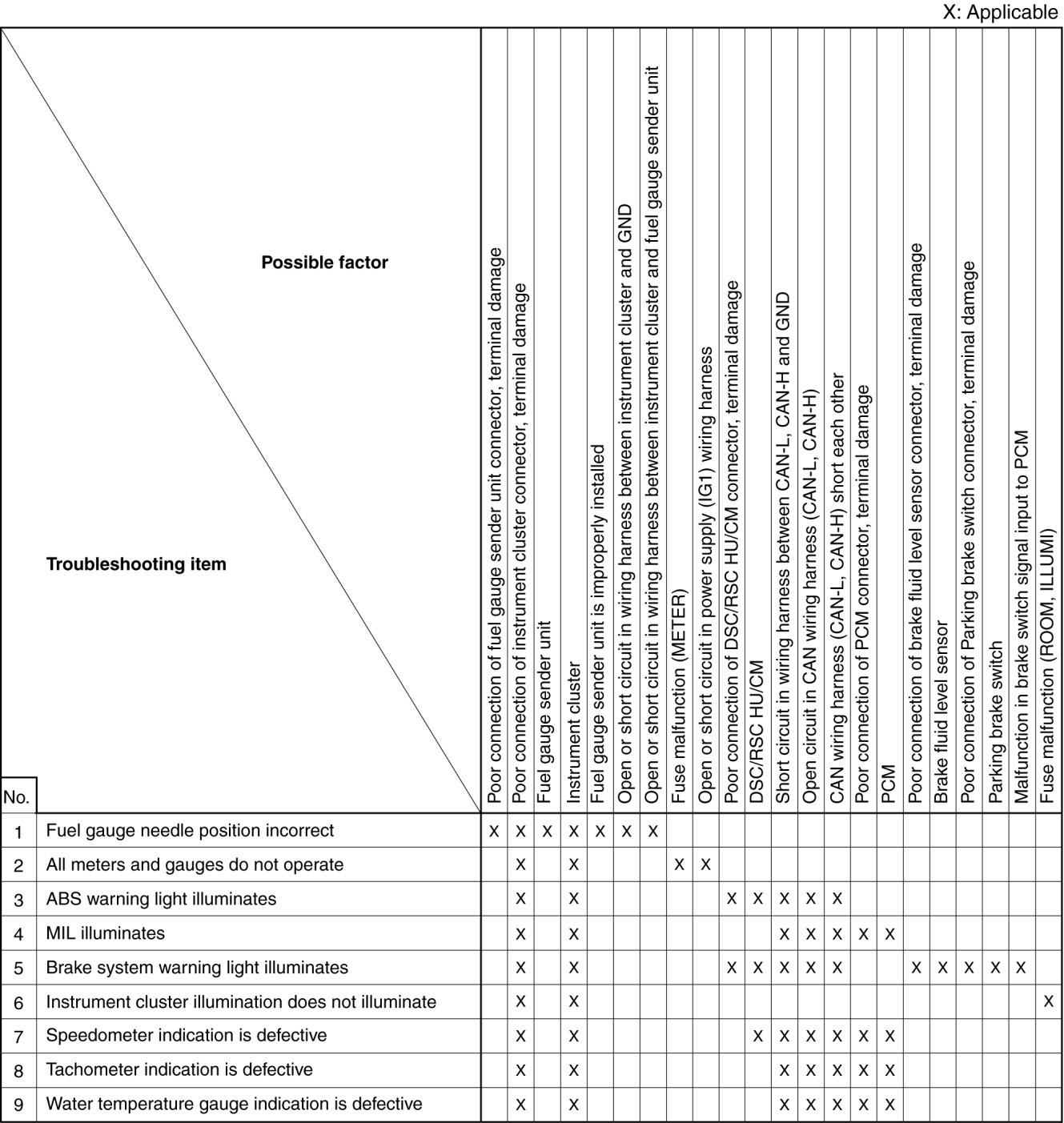

QUICK DIAGNOSTIC CHART [INSTRUMENT CLUSTER]
