Rear Power Metal Oxide Semiconductor Field Effect Transistor (Power MOS FET) Inspection

REAR POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION

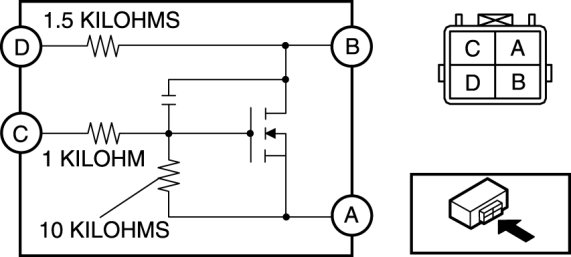

1. Verify that the continuity between the rear power MOS FET terminals is as indicated in the table.






- If there is any malfunction, replace the rear power MOS FET.
- If the blower motor operation is not normal even though no malfunction can be verified, inspect the front climate control unit.
