Rear Power Metal Oxide Semiconductor Field Effect Transistor (Power MOS FET) Removal/Installation

REAR POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front console box mat Front Console Box Mat Removal/Installation

c. Indicator panel Indicator Panel Removal/Installation

d. Front console box Front Console Box Removal/Installation

e. Dashboard under cover Dashboard Under Cover Removal/Installation

f. Side wall Side Wall Removal/Installation

g. Console panel Console Panel Removal/Installation

h. Console cover Console Cover Removal/Installation

i. Console Console Removal/Installation

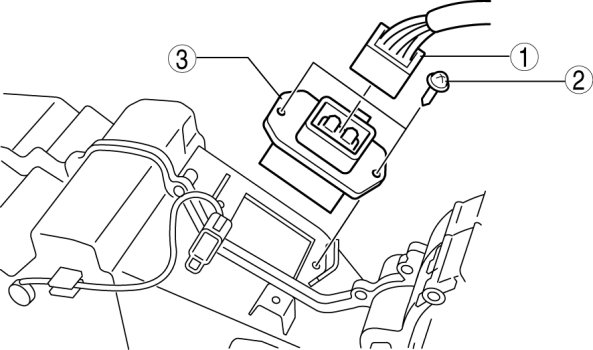

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
