Mazda Truck
>>
2011
>>
CX-9 AWD V6-3.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Component Locations
Component Locations

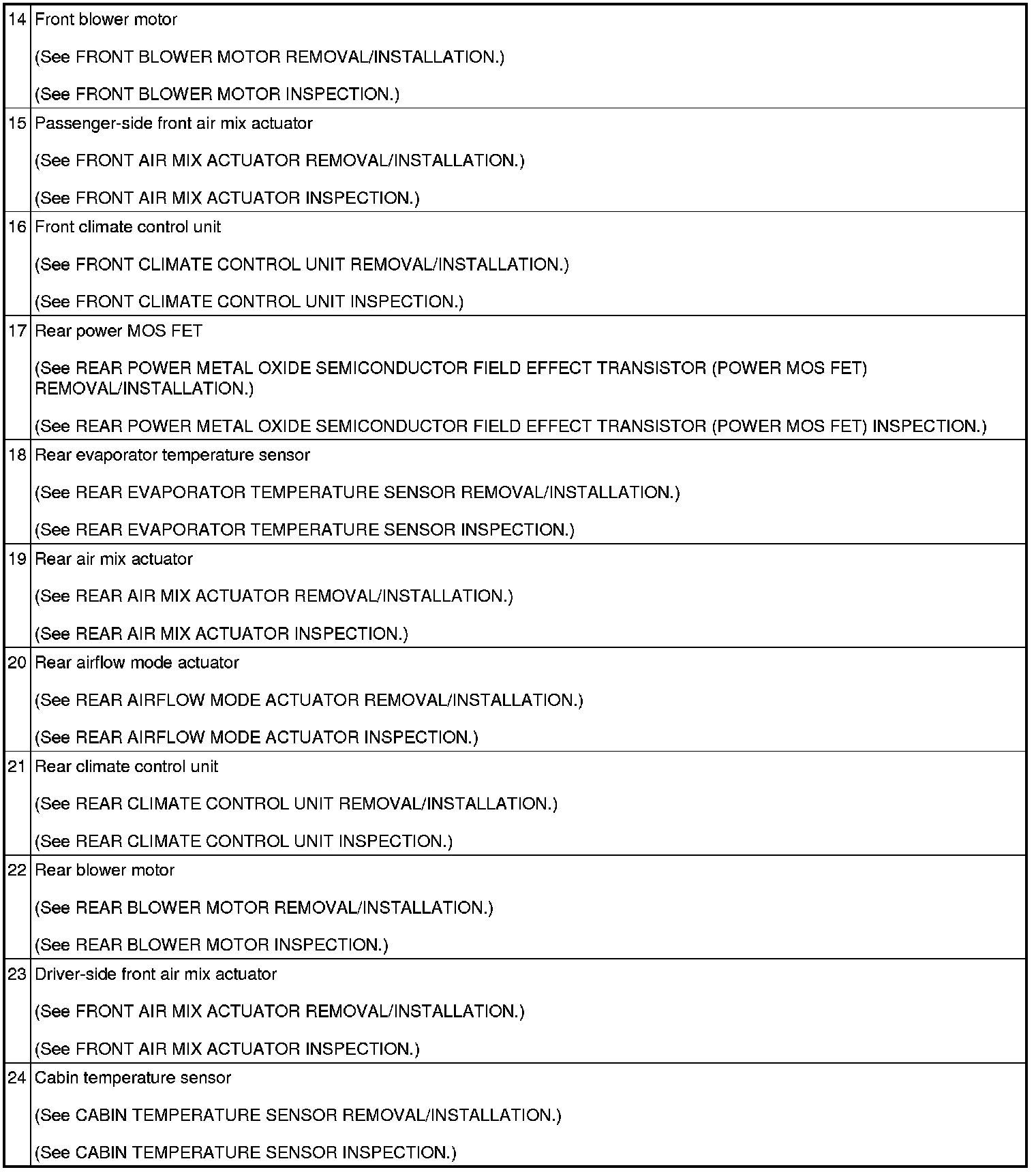

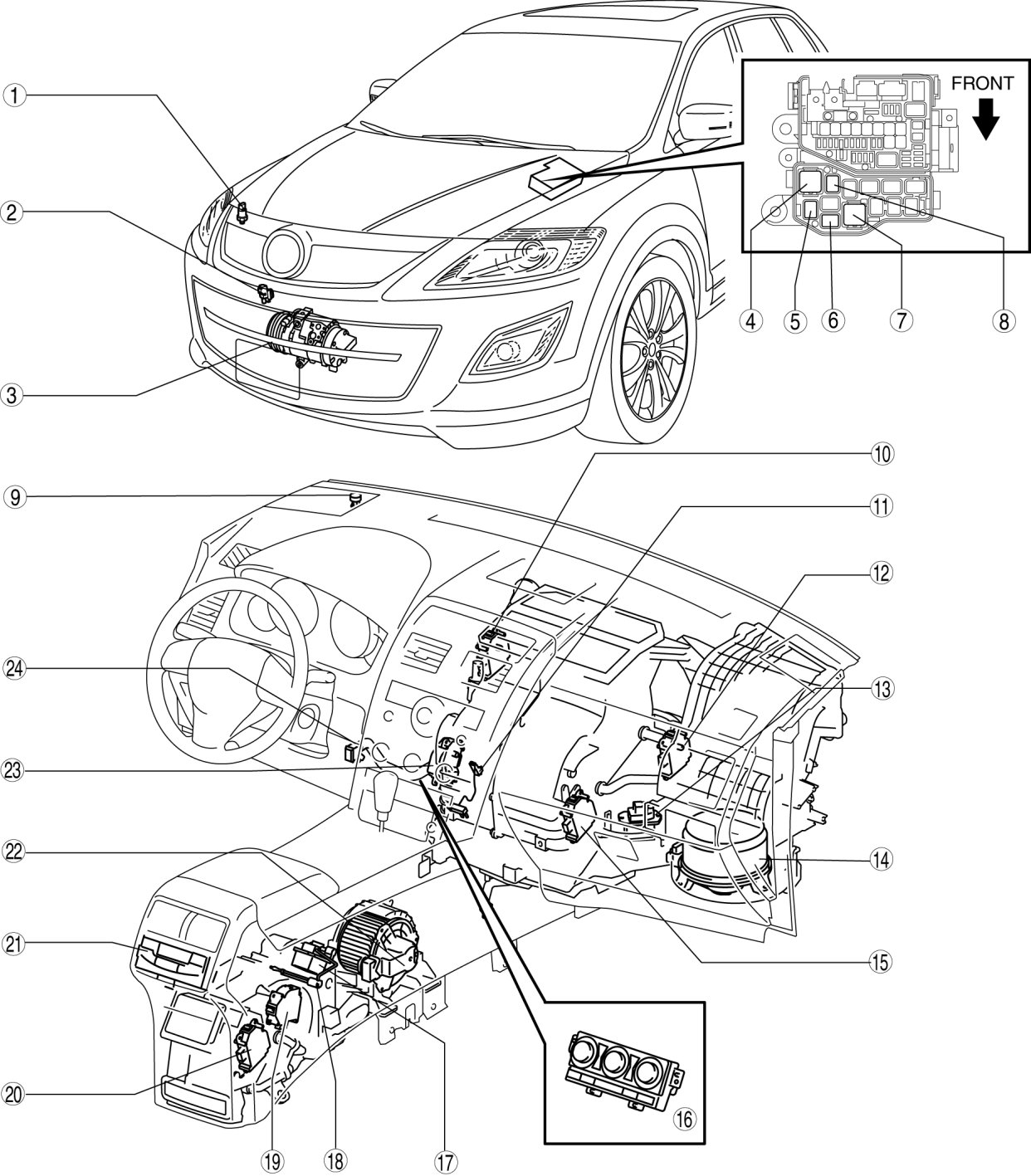

HVAC CONTROL SYSTEM LOCATION INDEX
