Door Lock Cylinder: Testing and Inspection

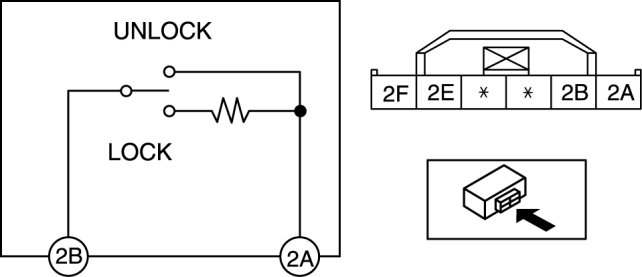

FRONT DOOR KEY CYLINDER SWITCH INSPECTION

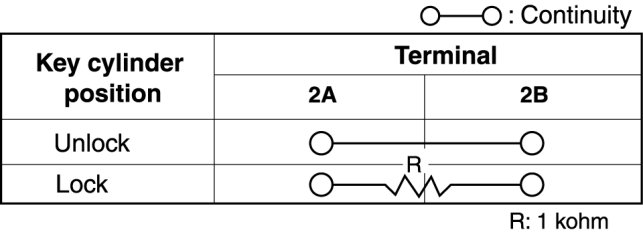

1. Inspect for continuity between the front door key cylinder switch terminals.






- If not as specified, replace the front door latch and lock actuator.
