Symptom Troubleshooting Chart - Power Liftgate (PLG) System
Symptom Troubleshooting Chart - Power Liftgate (PLG) System

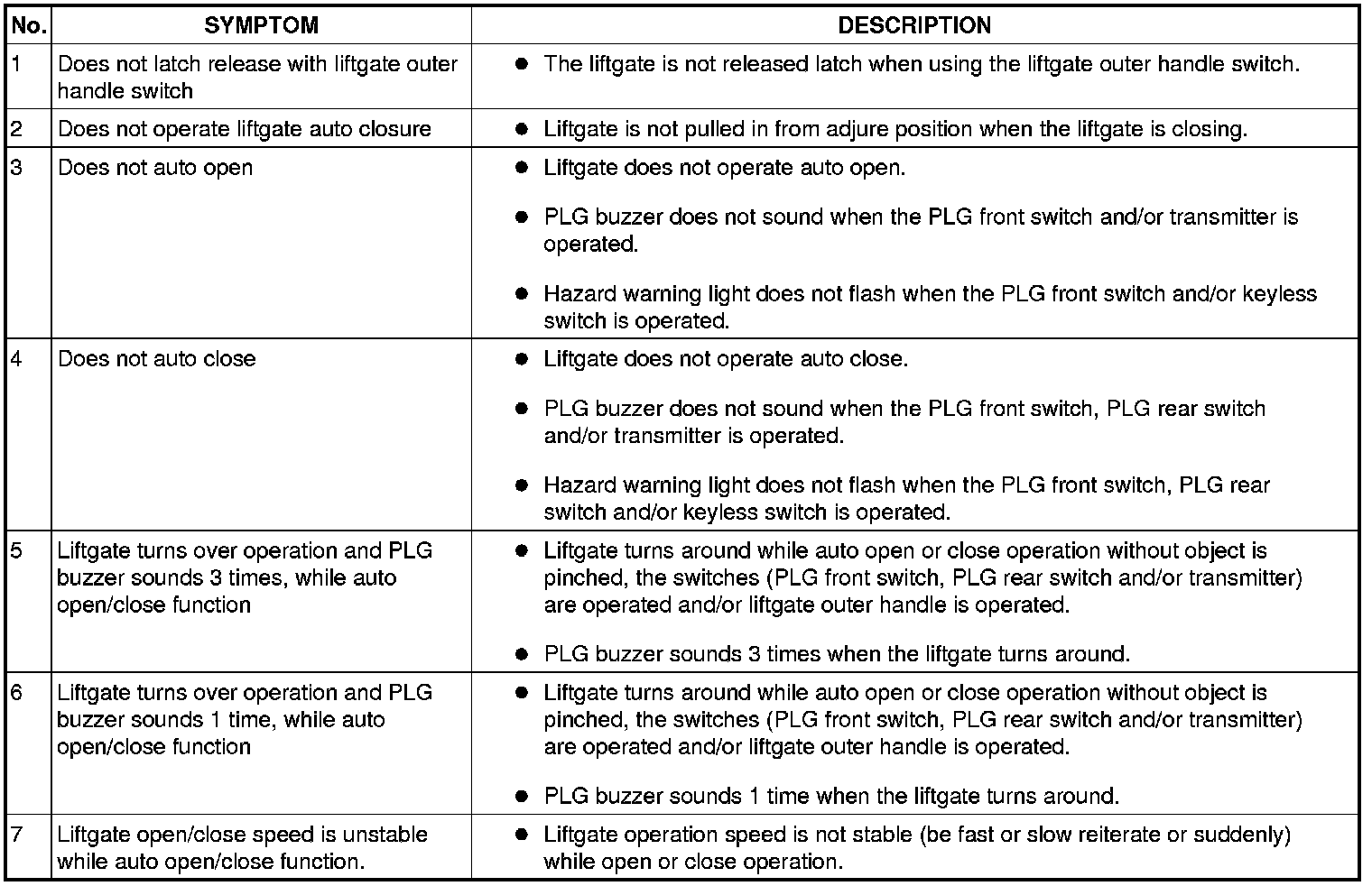

SYMPTOM TROUBLESHOOTING CHART [POWER LIFTGATE (PLG) SYSTEM]
