No. 7 Liftgate Open/Close Speed Is Unstable While Auto Open/Close Function - Power Liftgate (PLG) System

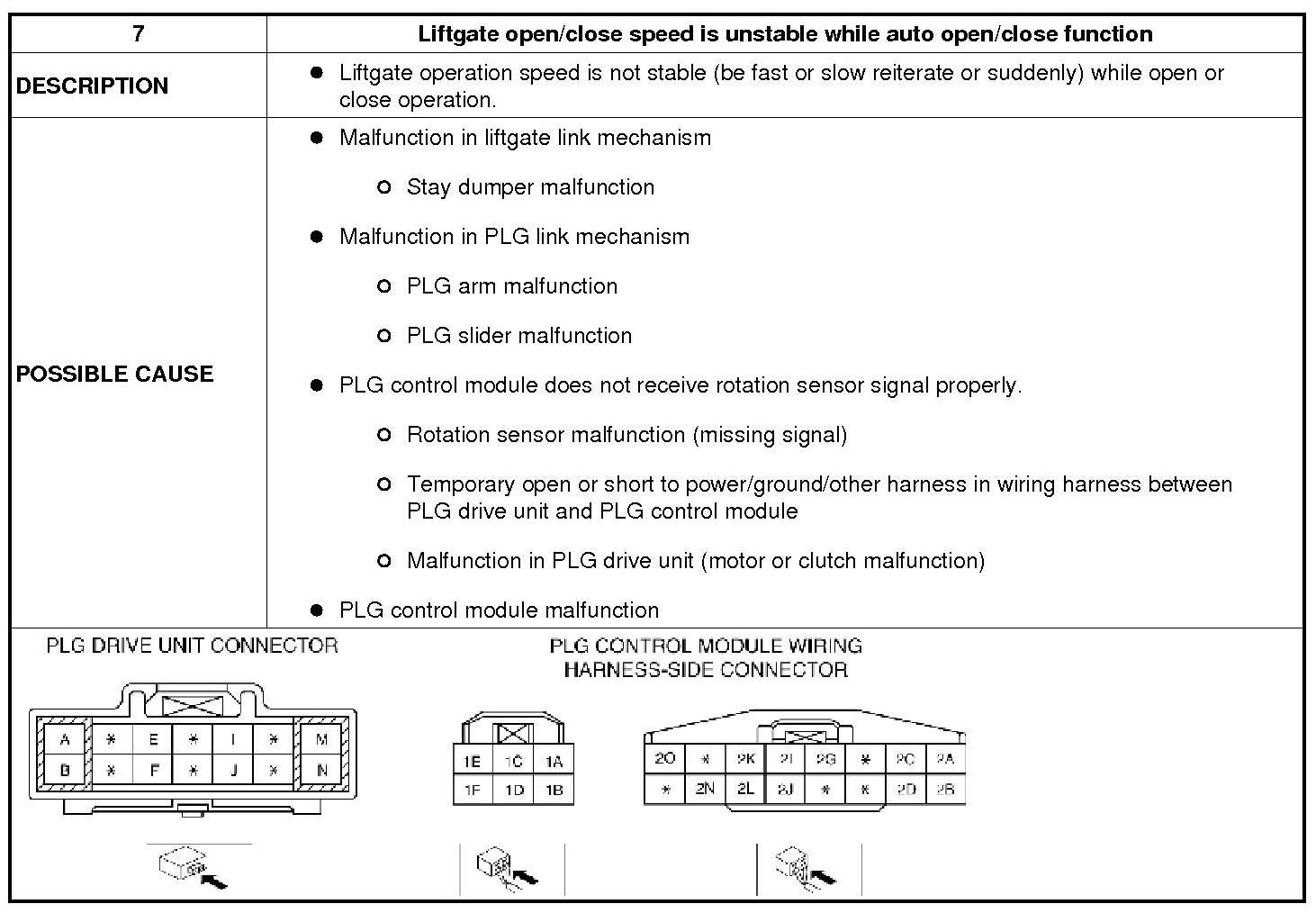

No.7 LIFTGATE OPEN/CLOSE SPEED IS UNSTABLE WHILE AUTO OPEN/CLOSE FUNCTION [POWER LIFTGATE (PLG) SYSTEM]

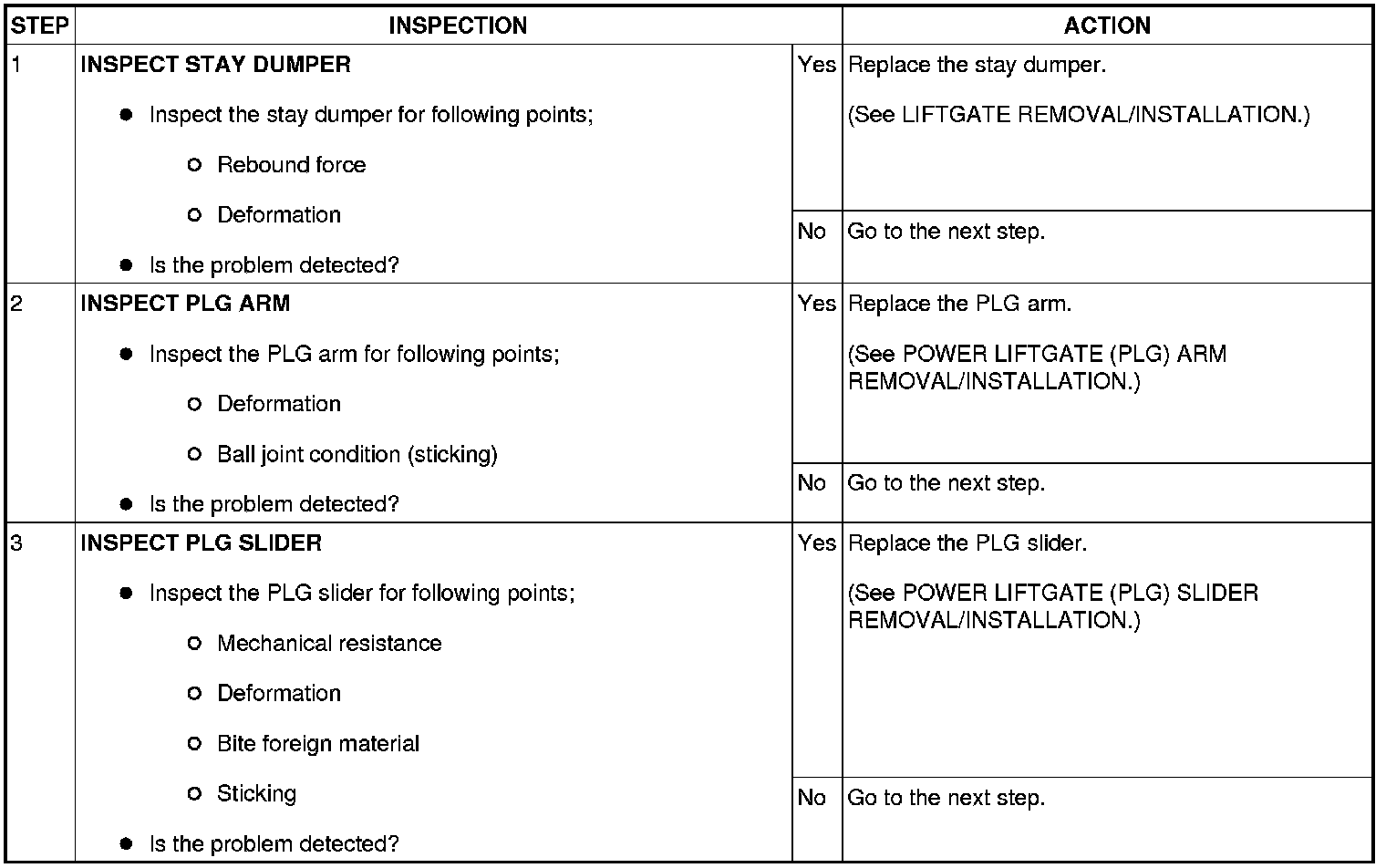

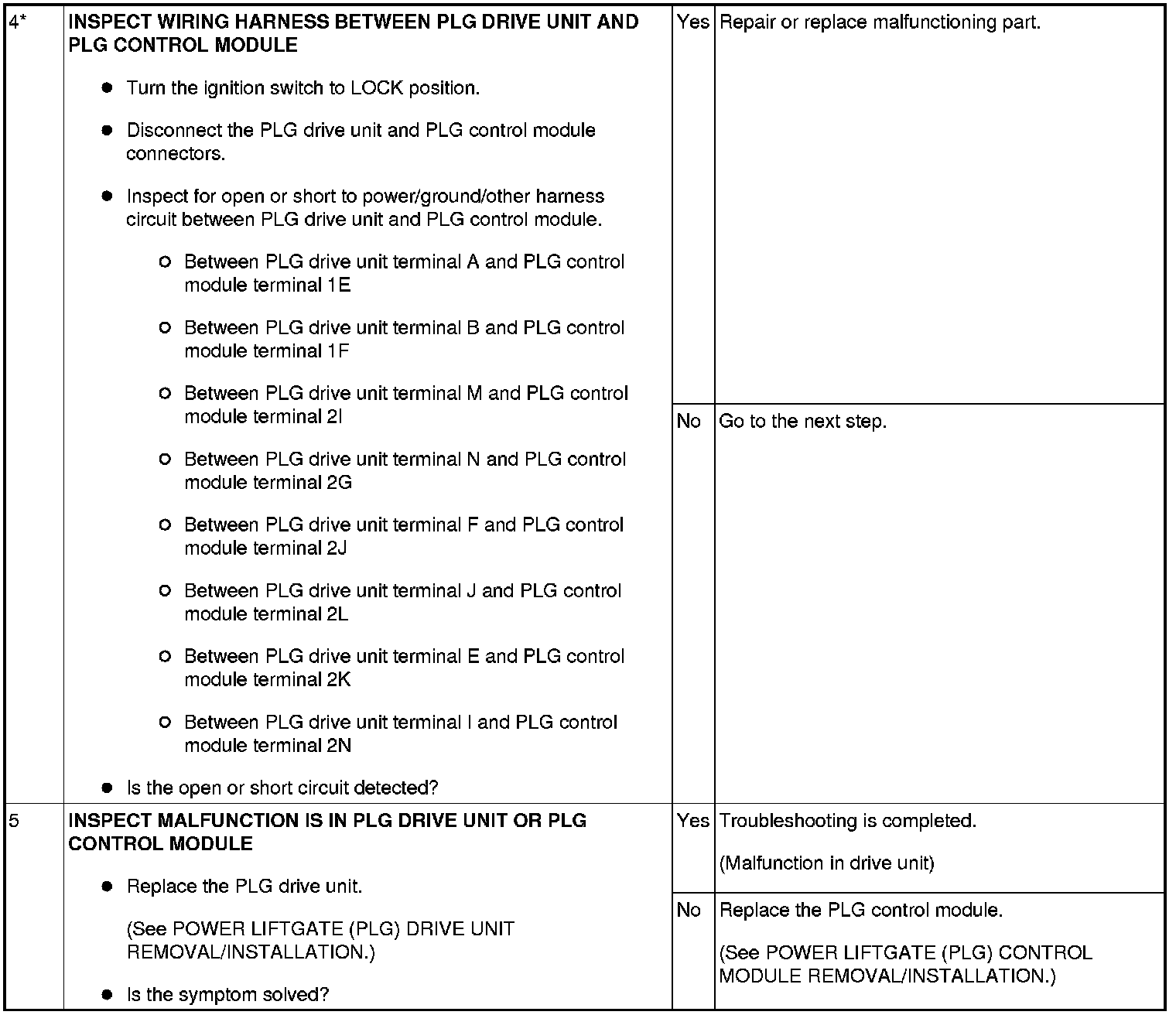

When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, verify that the connectors, terminals and wiring harnesses are connected correctly and undamaged. Diagnostic procedure
