No. 2 Does Not Operate Liftgate Auto Closure - Power Liftgate (PLG) System




No.2 DOES NOT OPERATE LIFTGATE AUTO CLOSURE [POWER LIFTGATE (PLG) SYSTEM]

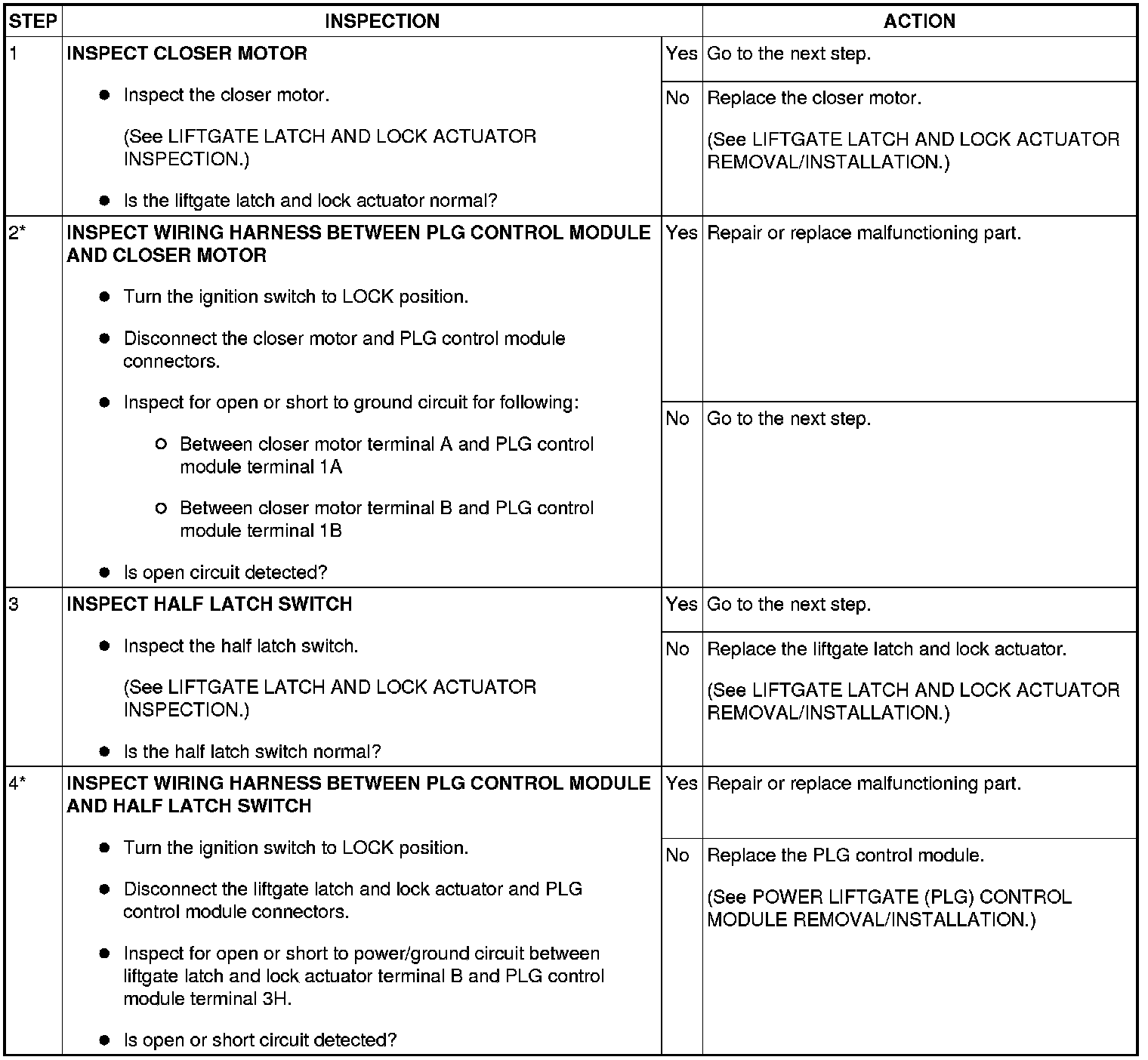

When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, verify that the connectors, terminals and wiring harnesses are connected correctly and undamaged. Diagnostic procedure
