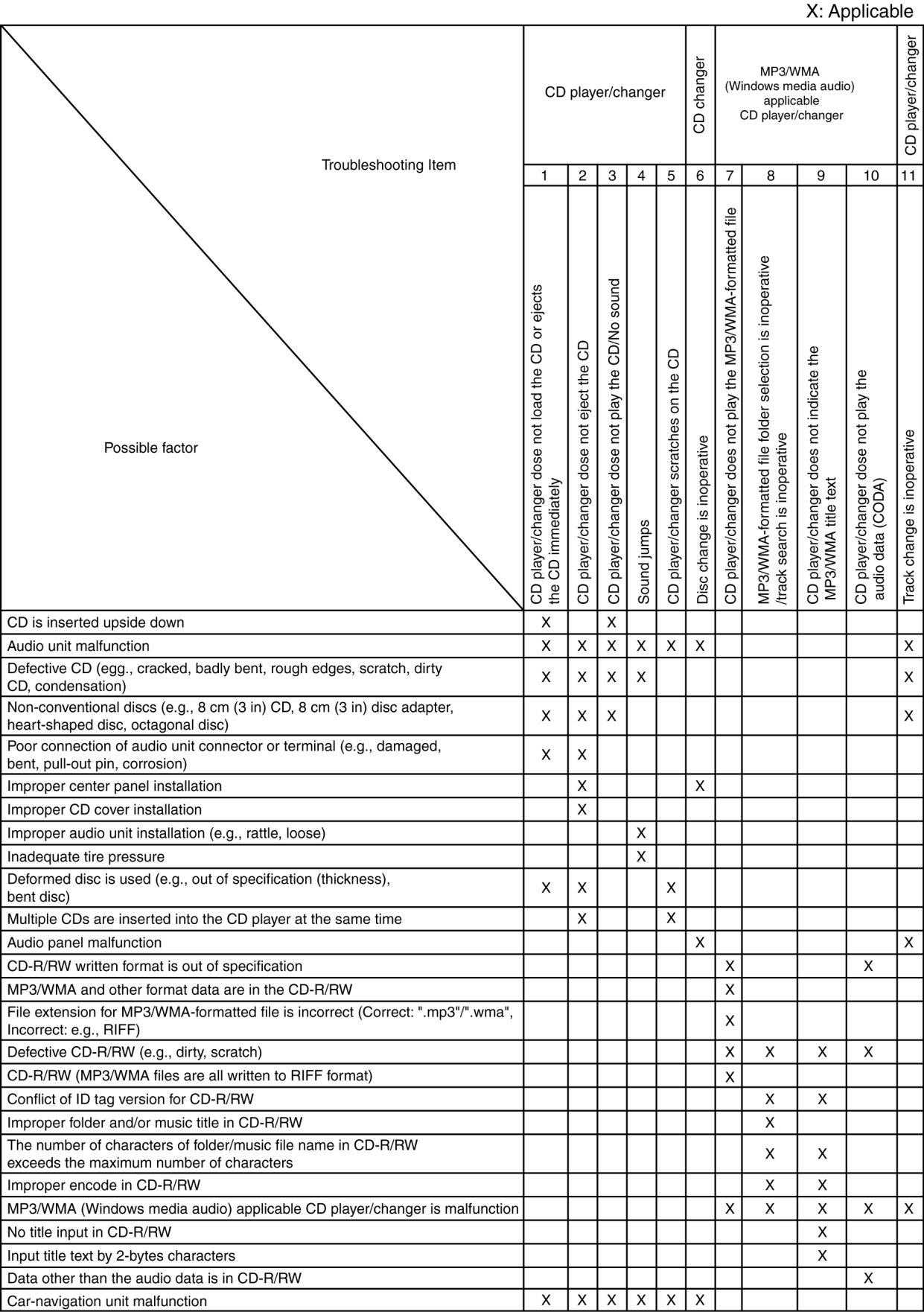

Troubleshooting Index




FOREWORD [CD PLAYER/CHANGER]

Troubleshooting Index

NOTE:
- Audio unit (without display) and CD-changer (separate with audio unit) do not have a function to play WMA-formatted file.

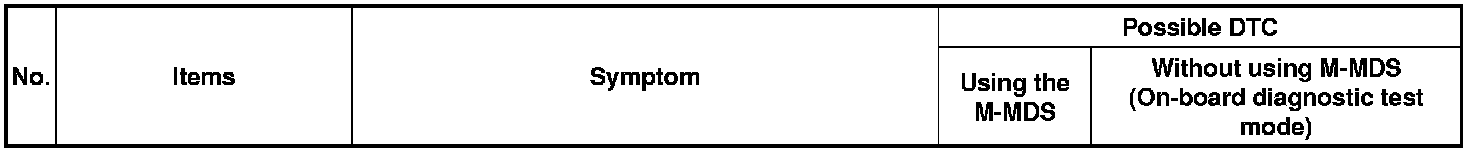

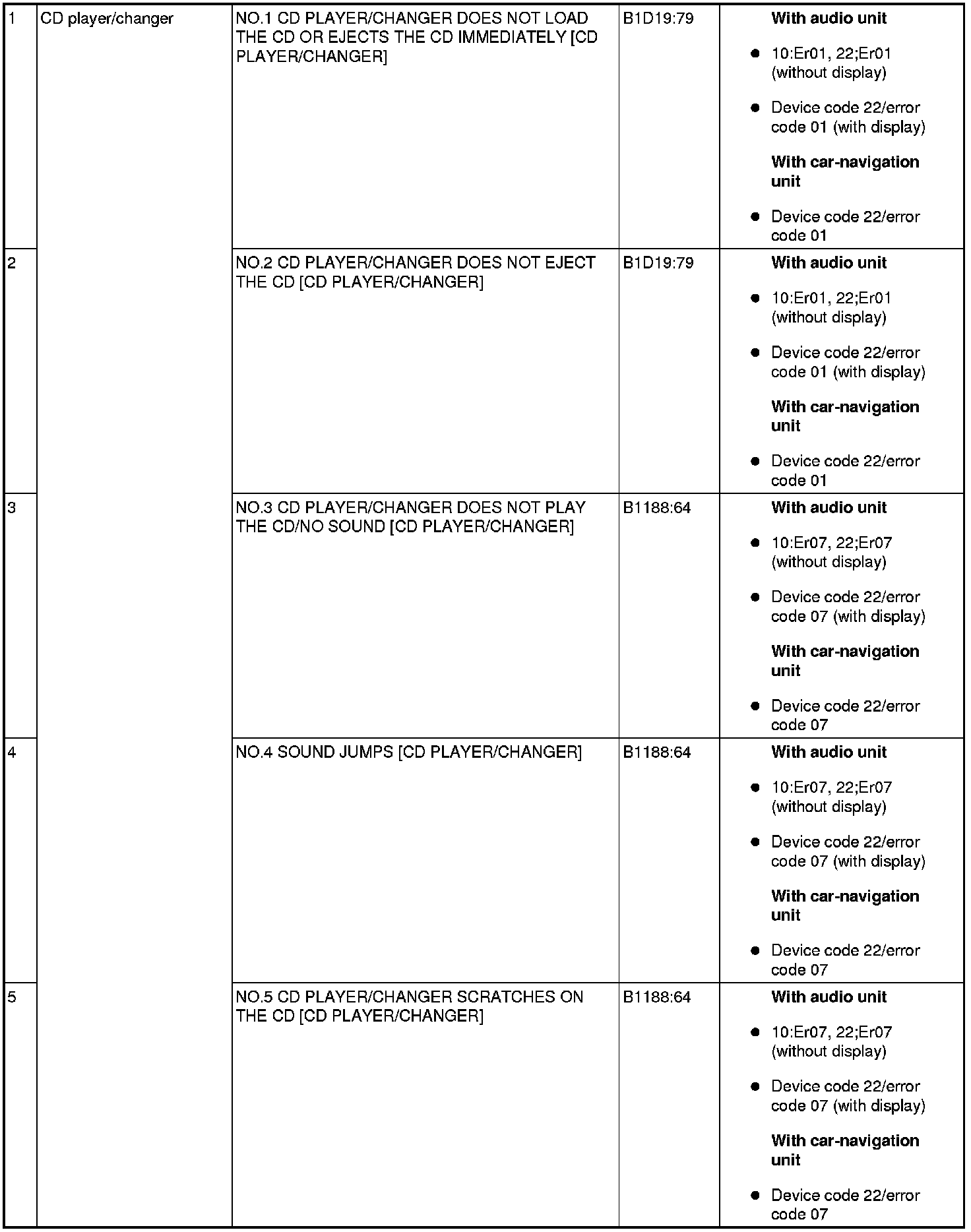

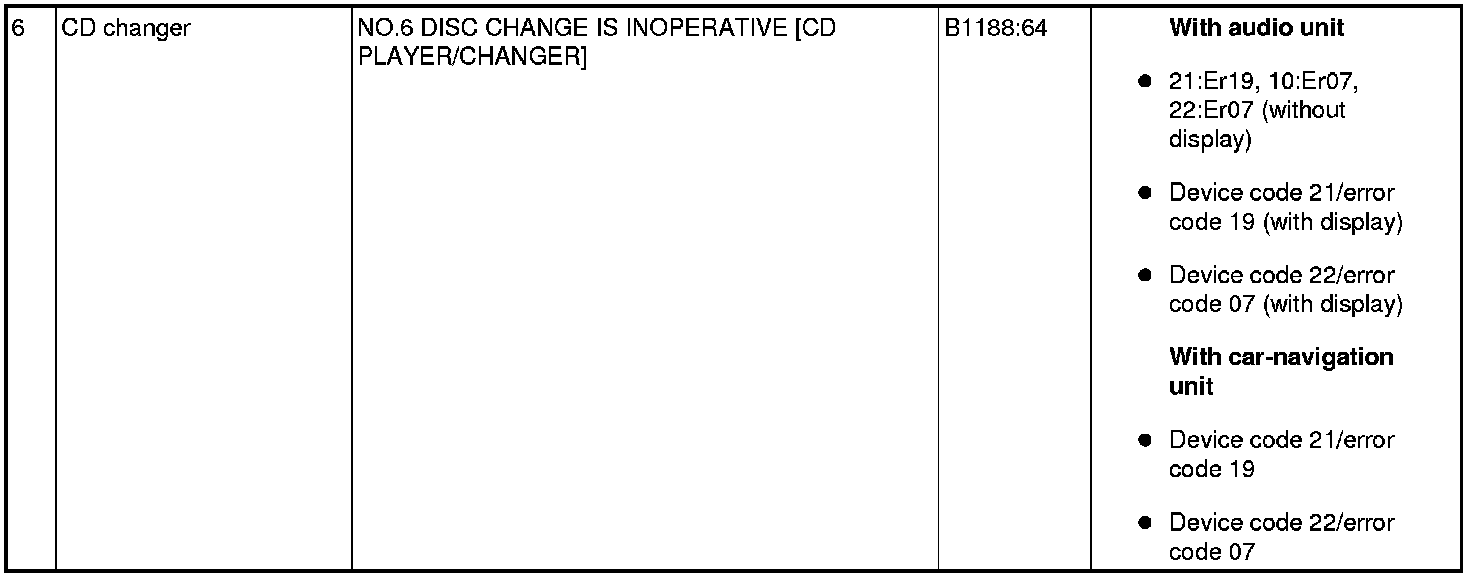

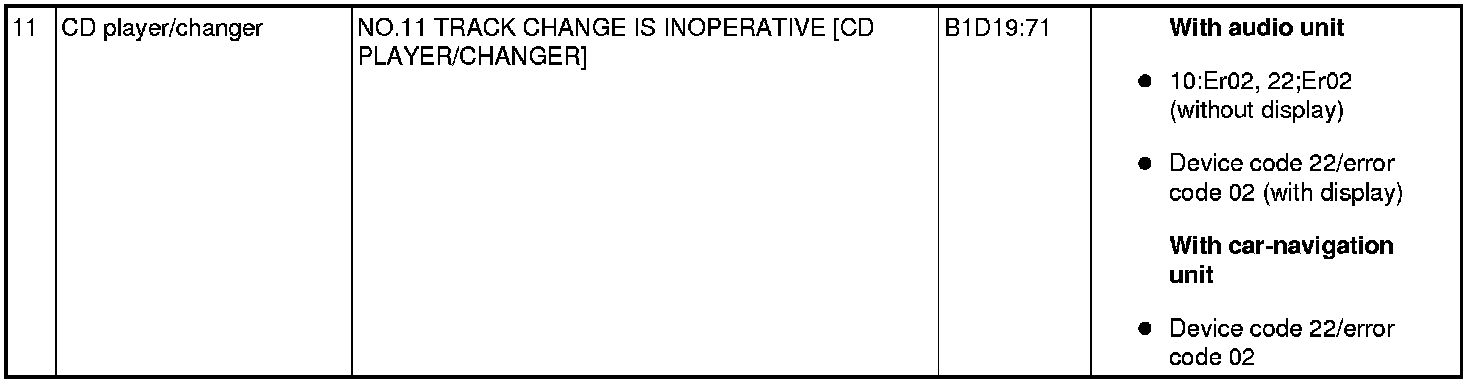

Quick Diagnostic Chart:
