No. 10 Rear Entertainment System Unit Display/Illumination Does Not Light Up

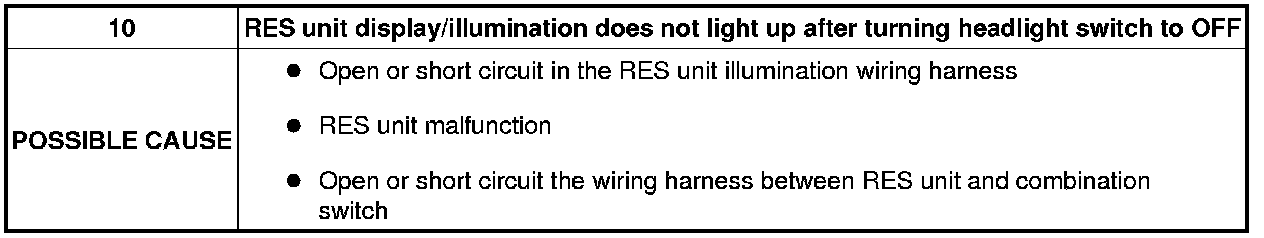

NO.10 REAR ENTERTAINMENT SYSTEM (RES) UNIT DISPLAY/ILLUMINATION DOES NOT LIGHT UP AFTER TURNING HEADLIGHT SWITCH TO OFF [REAR ENTERTAINMENT SYSTEM (RES)]

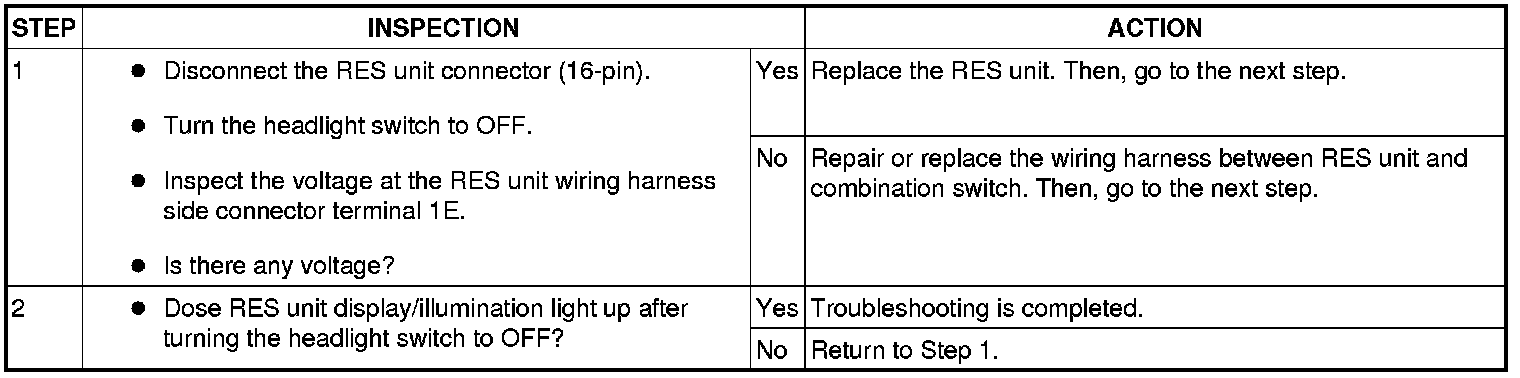

Diagnostic procedure
