Security Light 16

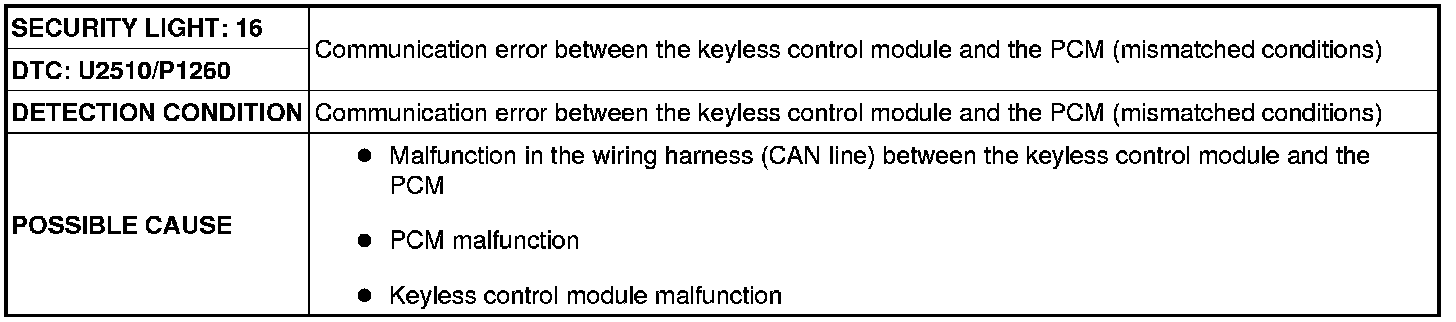

SECURITY LIGHT 16, DTC U2510/P1260 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND START SYSTEM)]

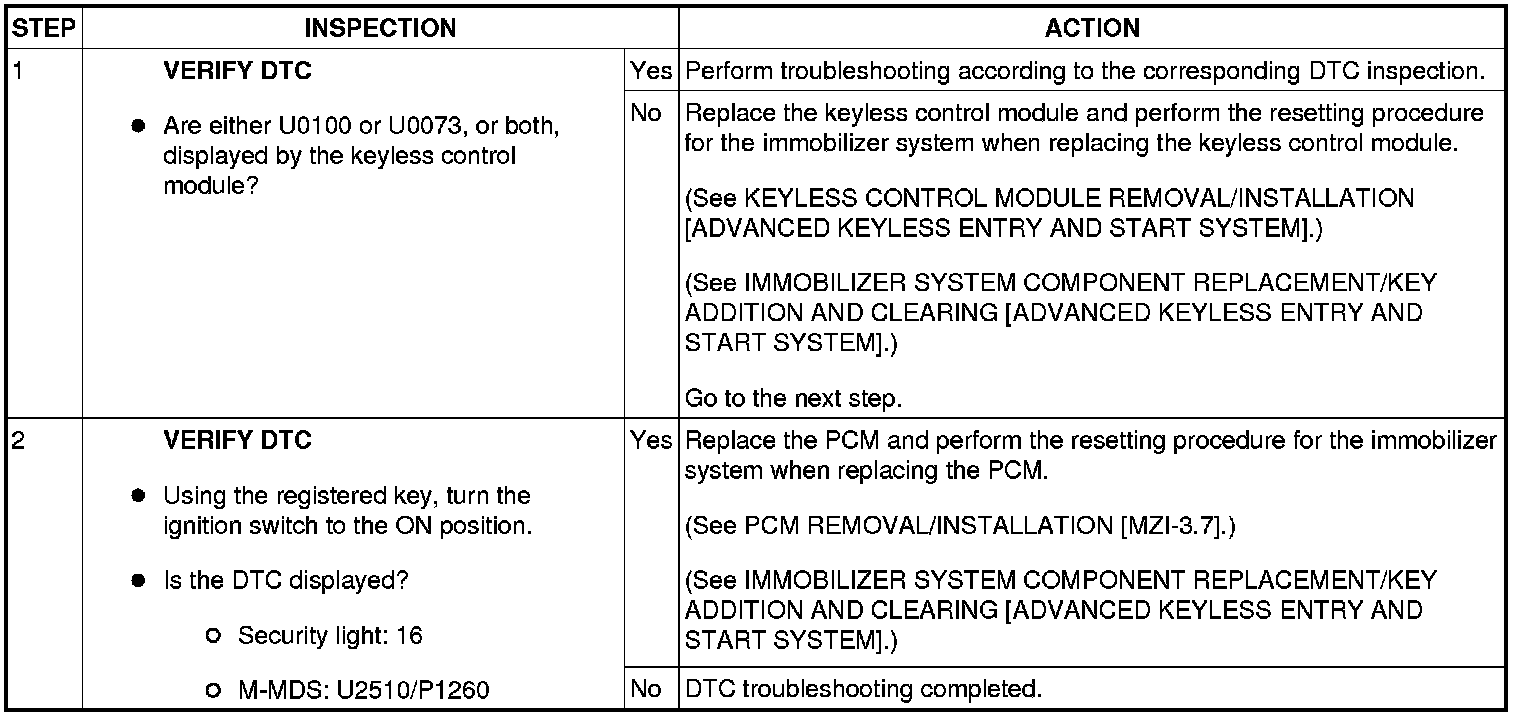

Diagnostic Procedure
