Rear Washer Nozzle Removal/Installation

REAR WASHER NOZZLE REMOVAL/INSTALLATION

1. Remove the liftgate upper trim.

2. Remove the rear spoiler. Service and Repair

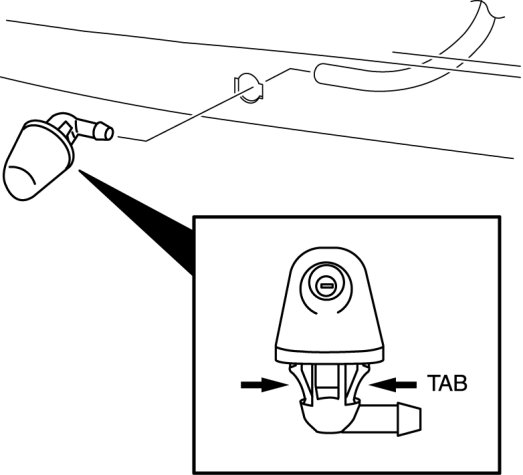

3. Press the tabs and remove the rear washer nozzle.






4. Install in the reverse order of removal.

5. Adjust the rear washer nozzle. Adjustments
