Evaporative Emission Control Canister: Service and Repair

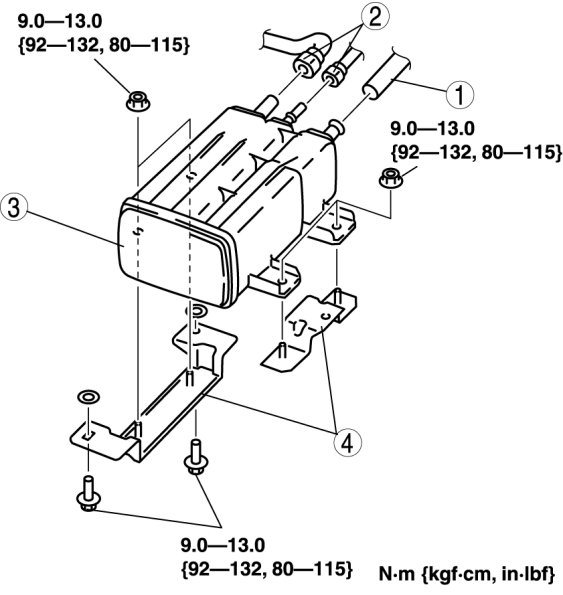

CHARCOAL CANISTER REMOVAL/INSTALLATION [L5]

1. Remove the under cover (LR).

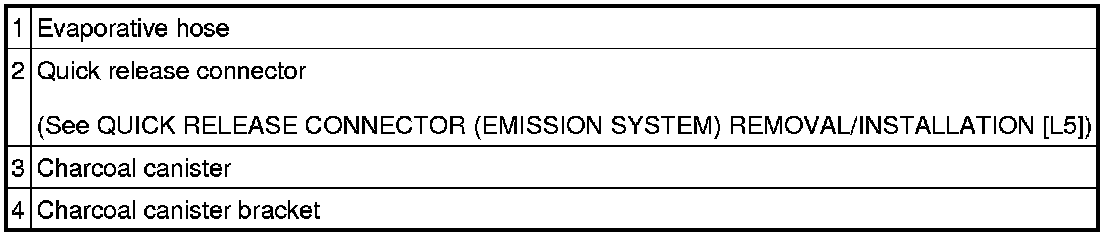

2. Remove in the order indicated in the table










3. Install in the reverse order of removal.
