Mazda Truck
>>
2011
>>
CX-7 FWD L4-2.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
Scan Tool Testing and Procedures

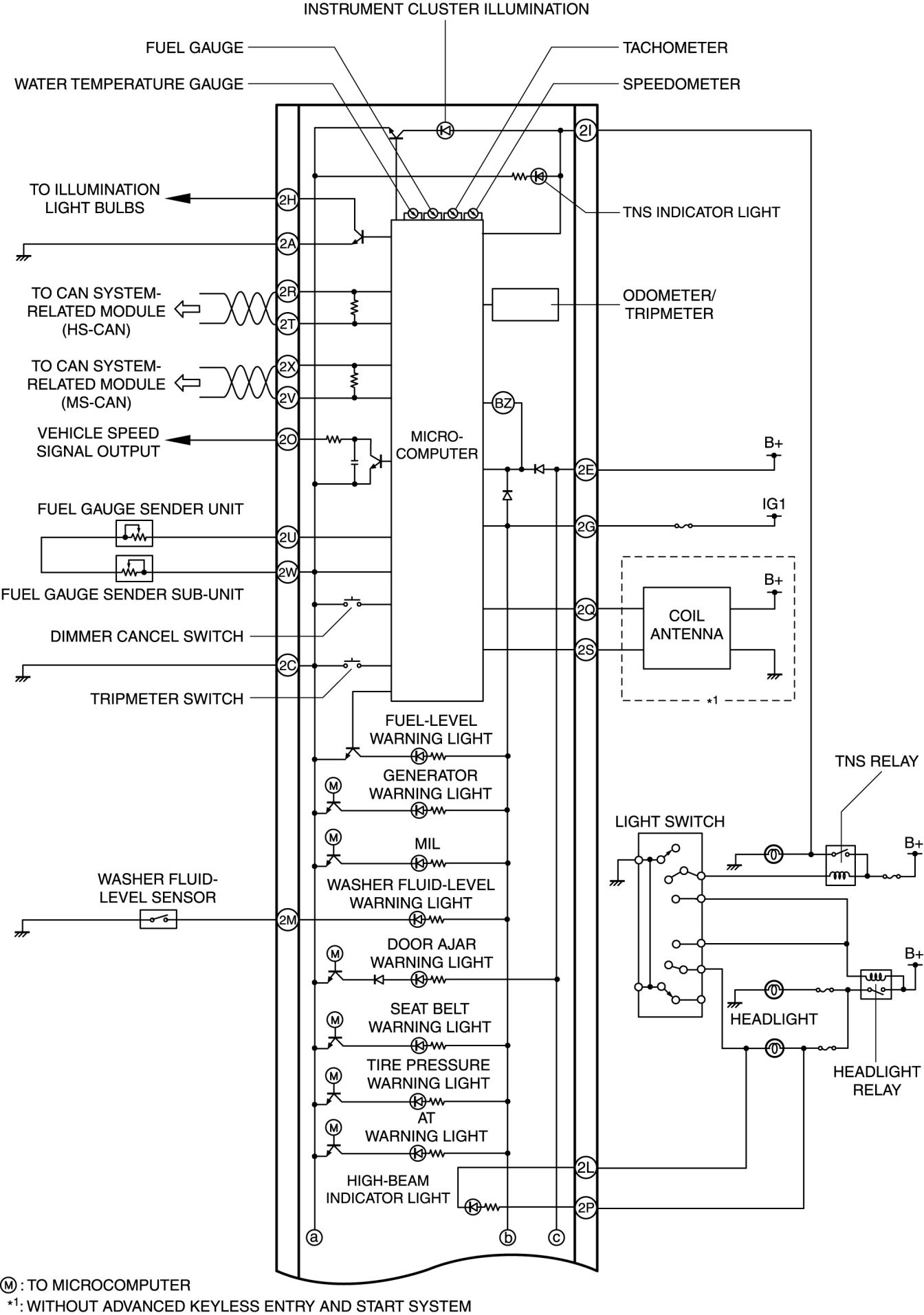

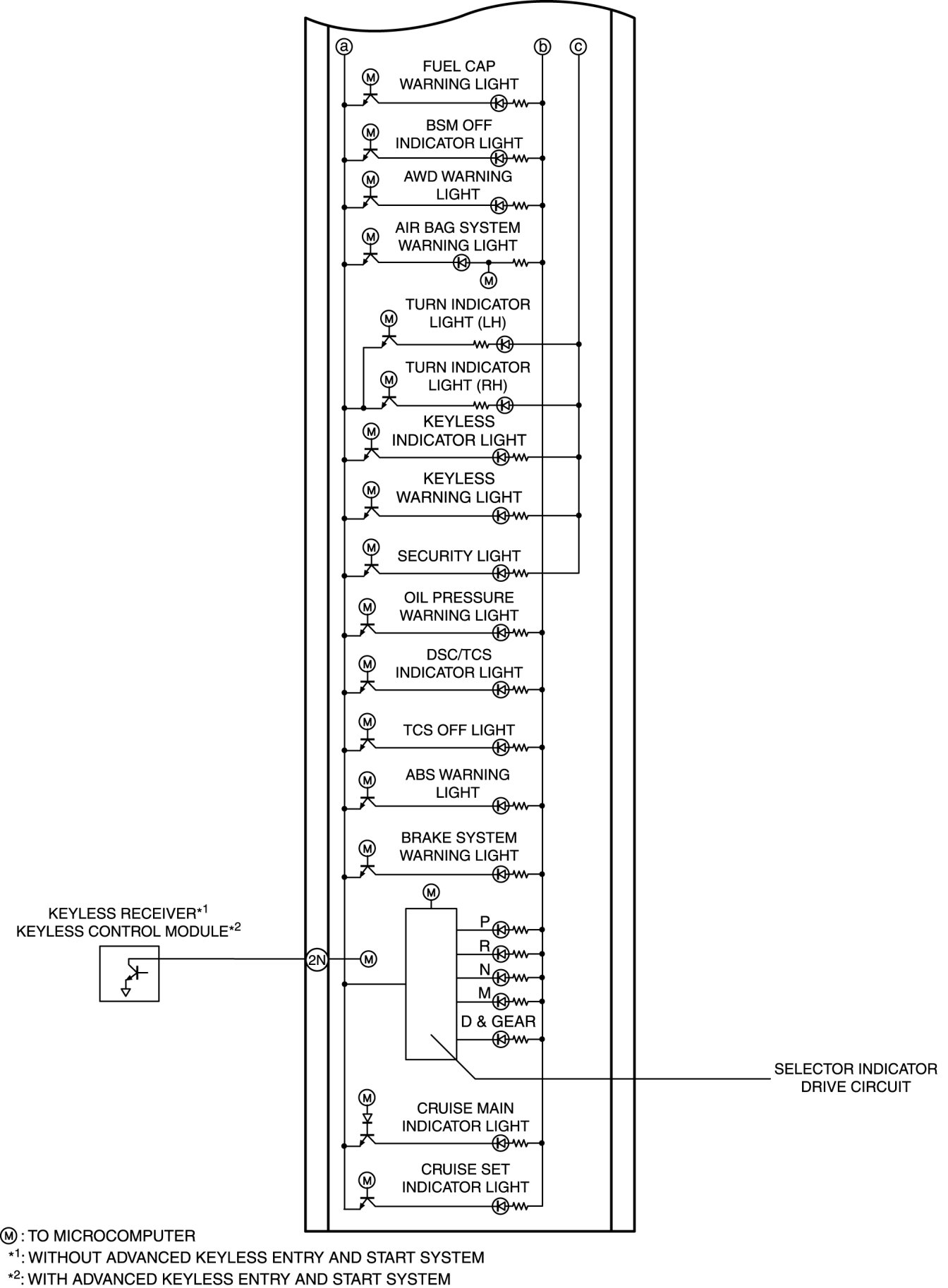

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [INSTRUMENT CLUSTER]
