Mazda Truck
>>
2011
>>
CX-7 FWD L4-2.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No. 1 System Does Not Activate
No. 1 System Does Not Activate

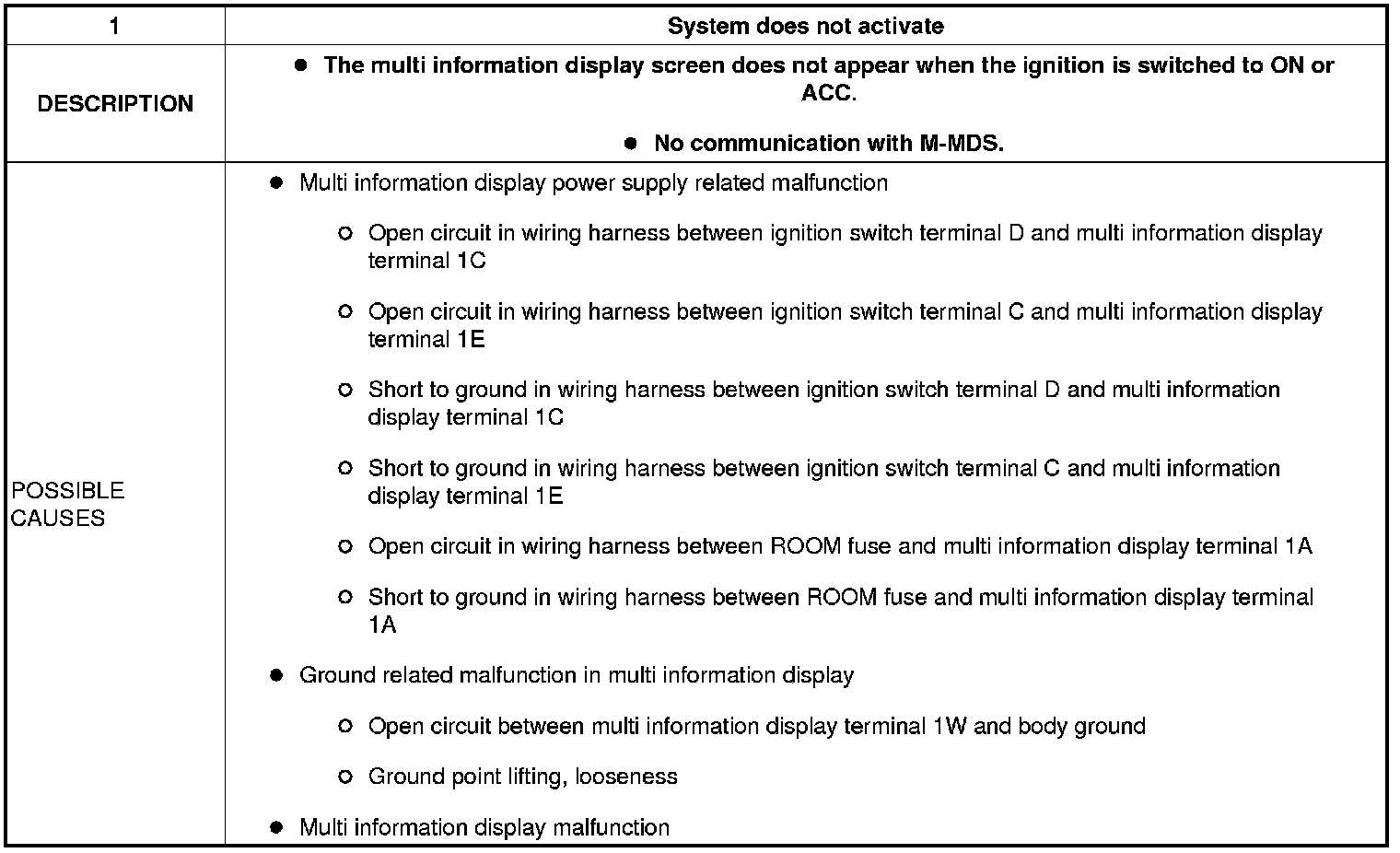

No.1 SYSTEM DOES NOT ACTIVATE [MULTI INFORMATION DISPLAY]

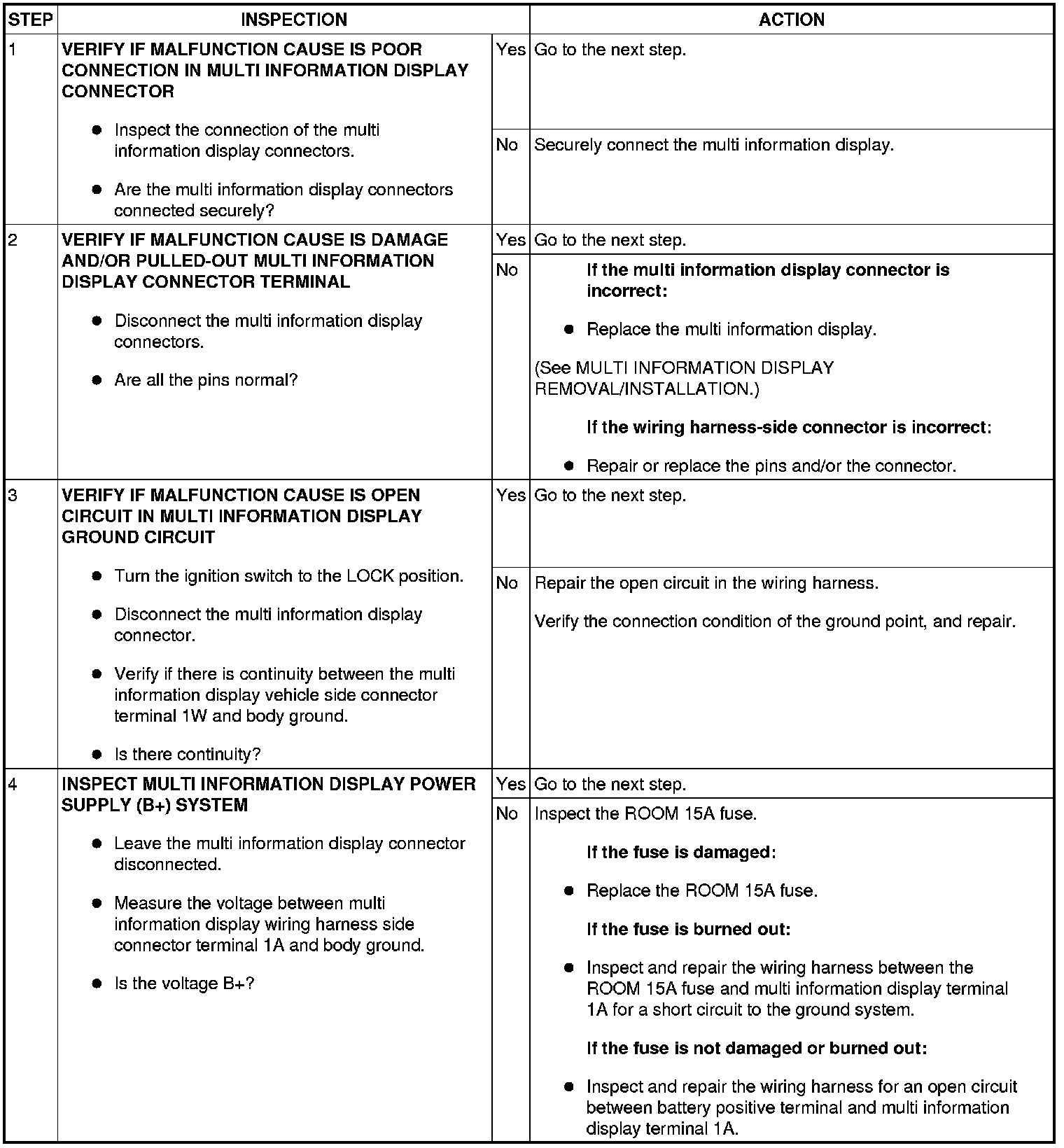

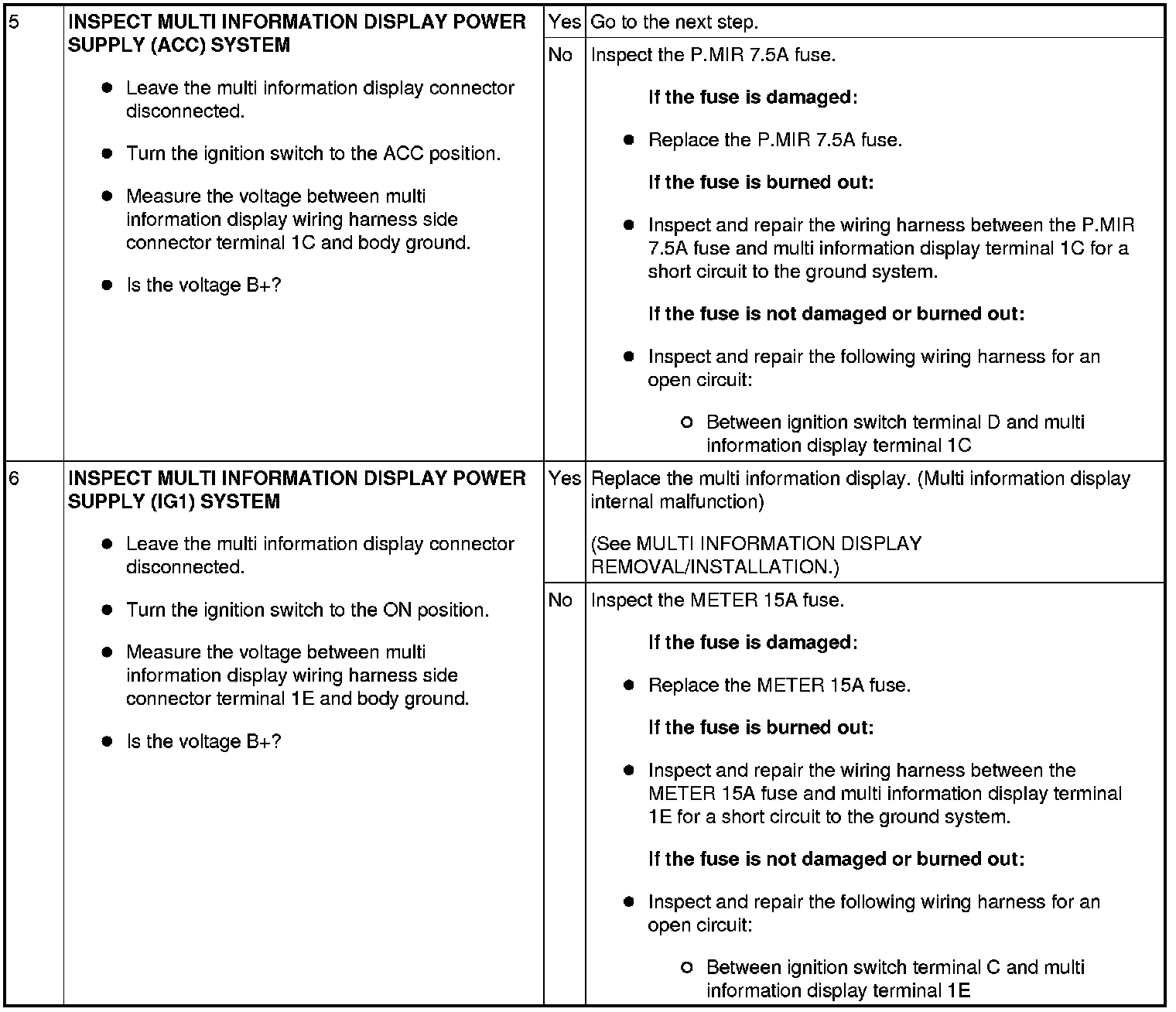

Diagnostic procedure
