Manual Air Conditioner
>>
System Wiring Diagram
System Wiring Diagram

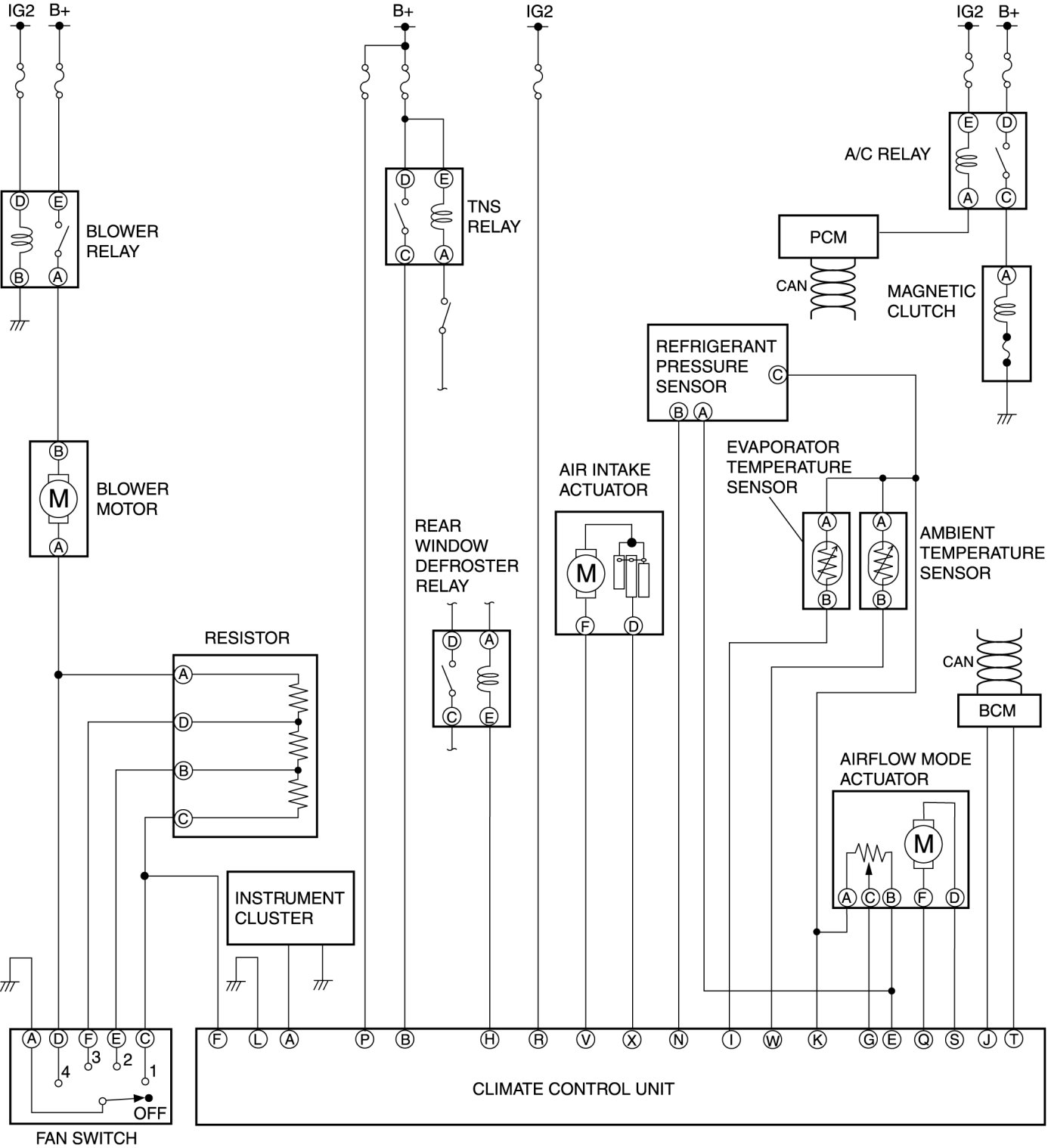

HVAC SYSTEM WIRING DIAGRAM [MANUAL AIR CONDITIONER]
