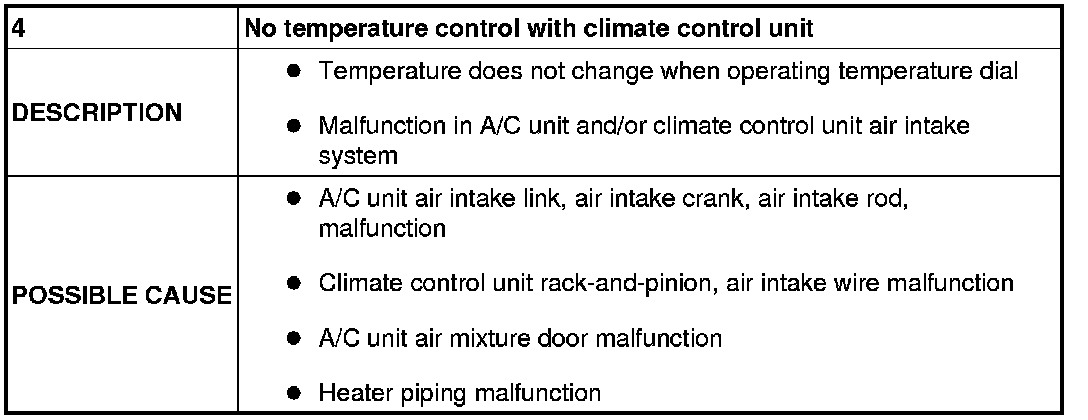

No. 4 No Temperature Control With Climate Control Unit




NO.4 NO TEMPERATURE CONTROL WITH CLIMATE CONTROL UNIT [FULL-AUTO AIR CONDITIONER]

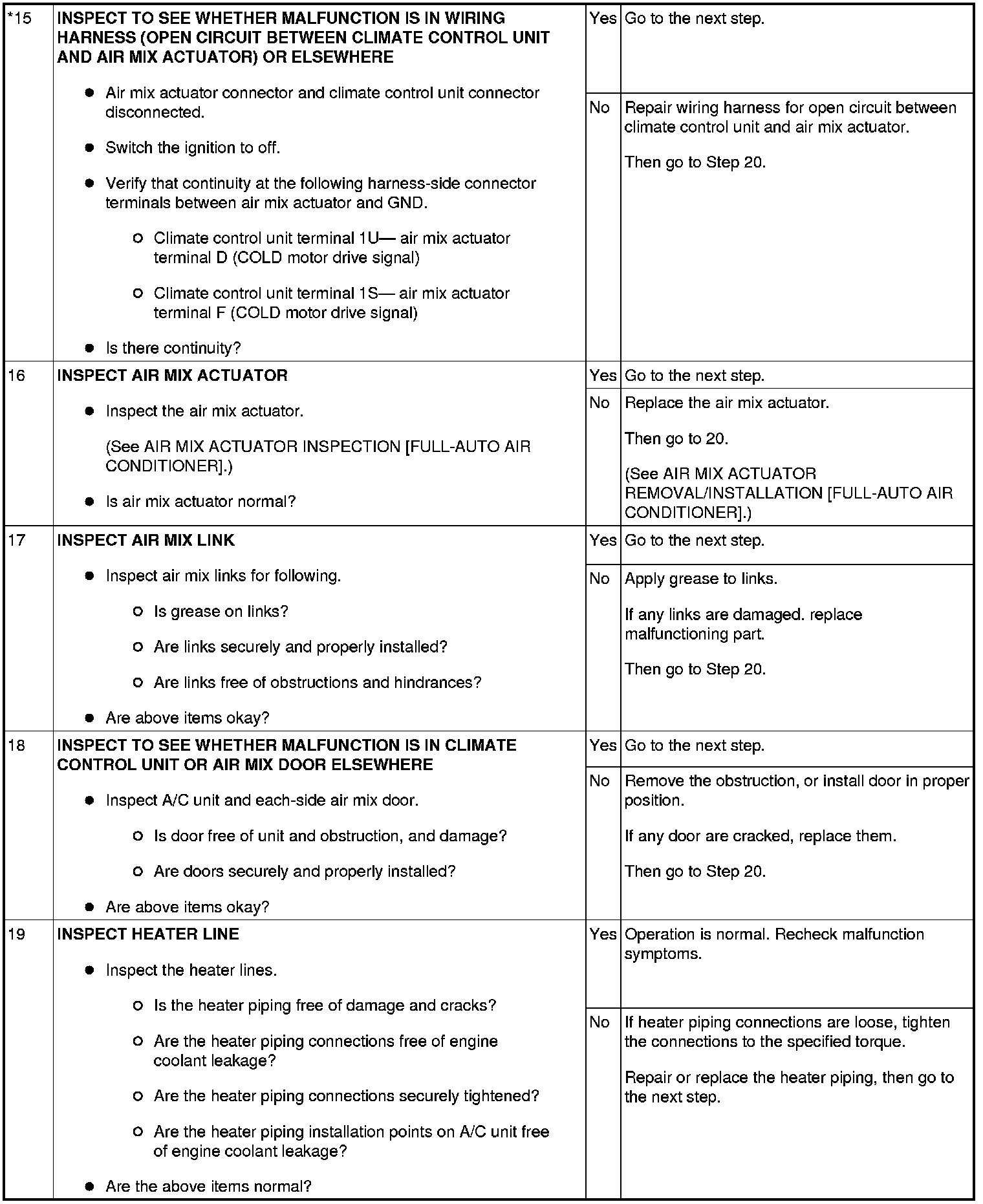

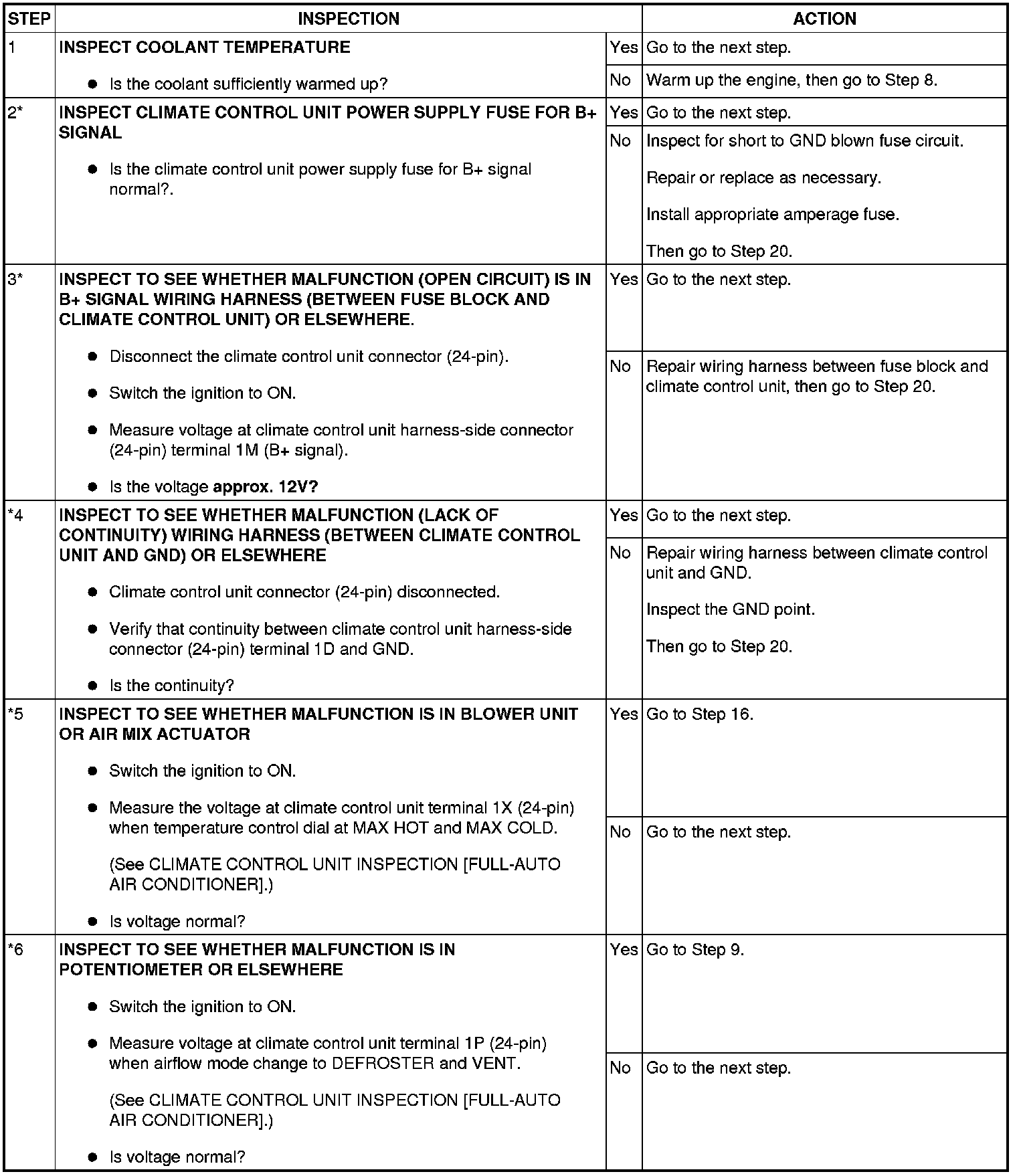

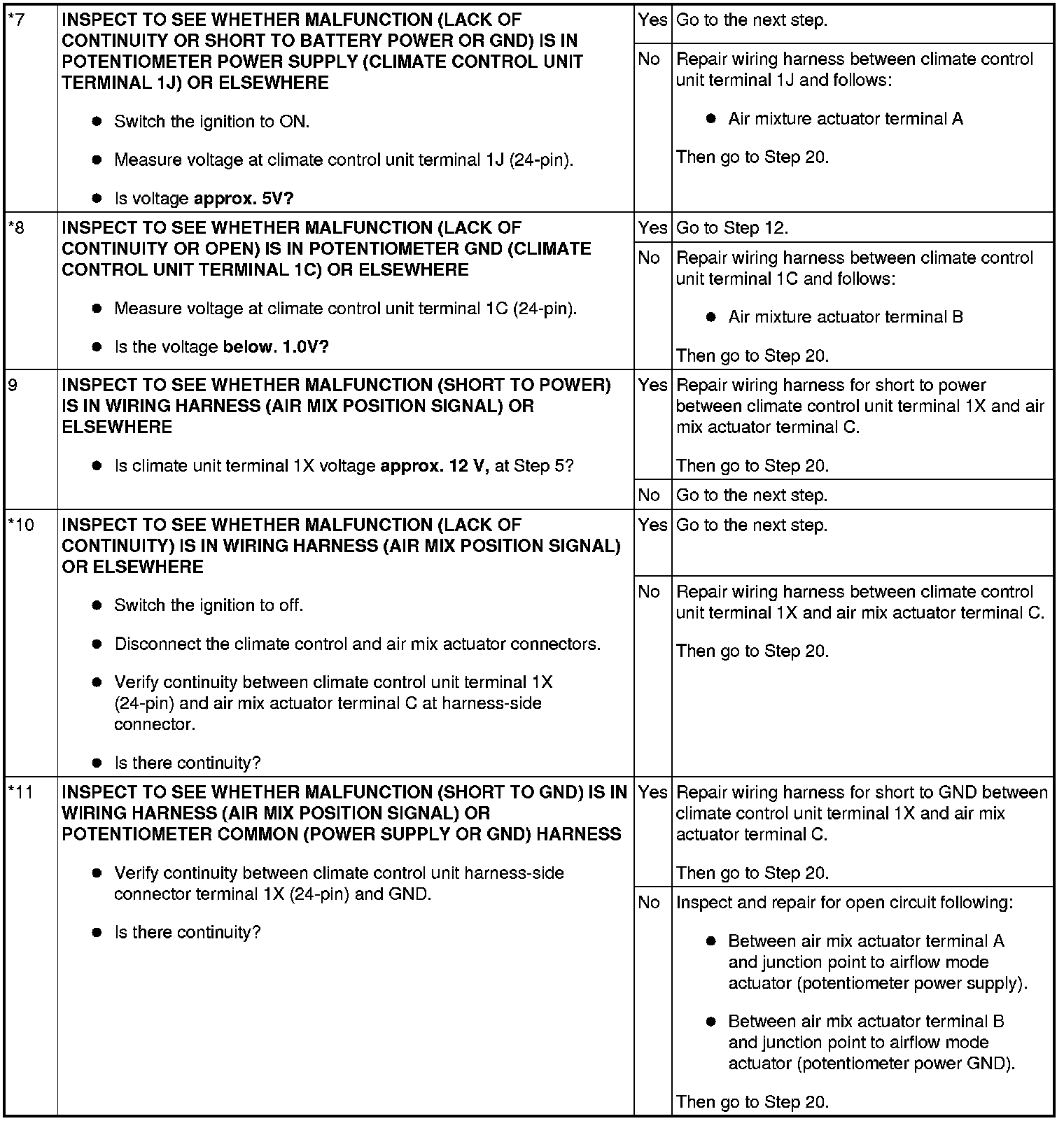

Diagnostic procedure
