Hydraulic Control Assembly - Antilock Brakes: Testing and Inspection

DSC HU/CM INSPECTION

1. Disconnect the DSC HU/CM connector. Service and Repair

2. Connect the negative battery cable. Removal and Replacement Removal and Replacement

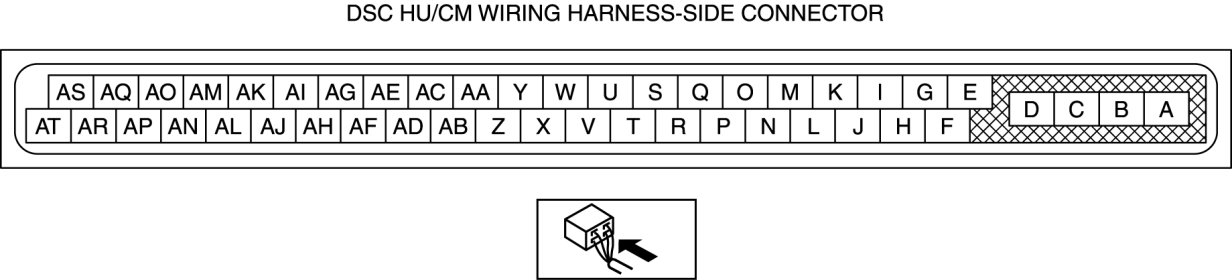

3. Attach the tester lead to the DSC HU/CM wiring harness-side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.

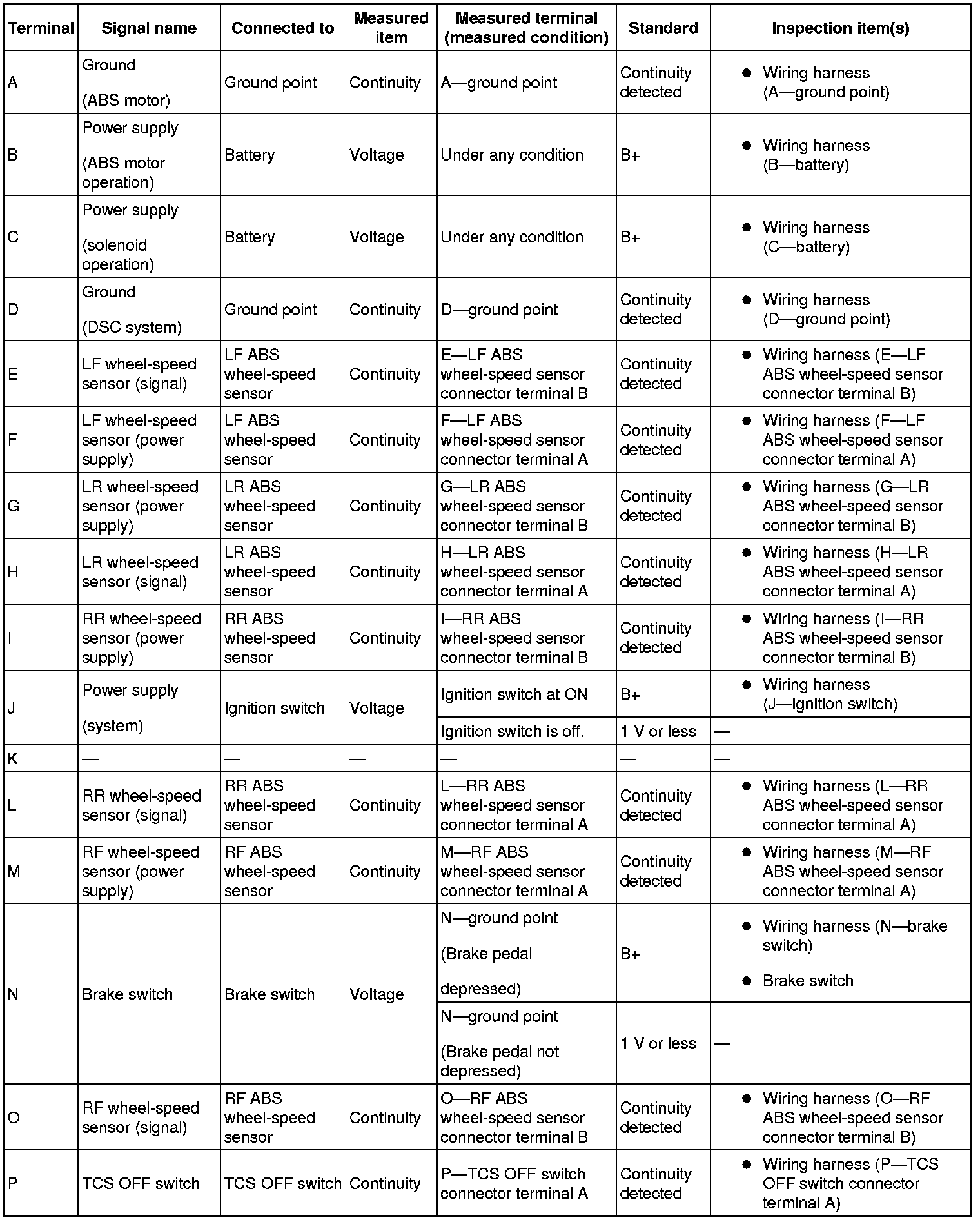

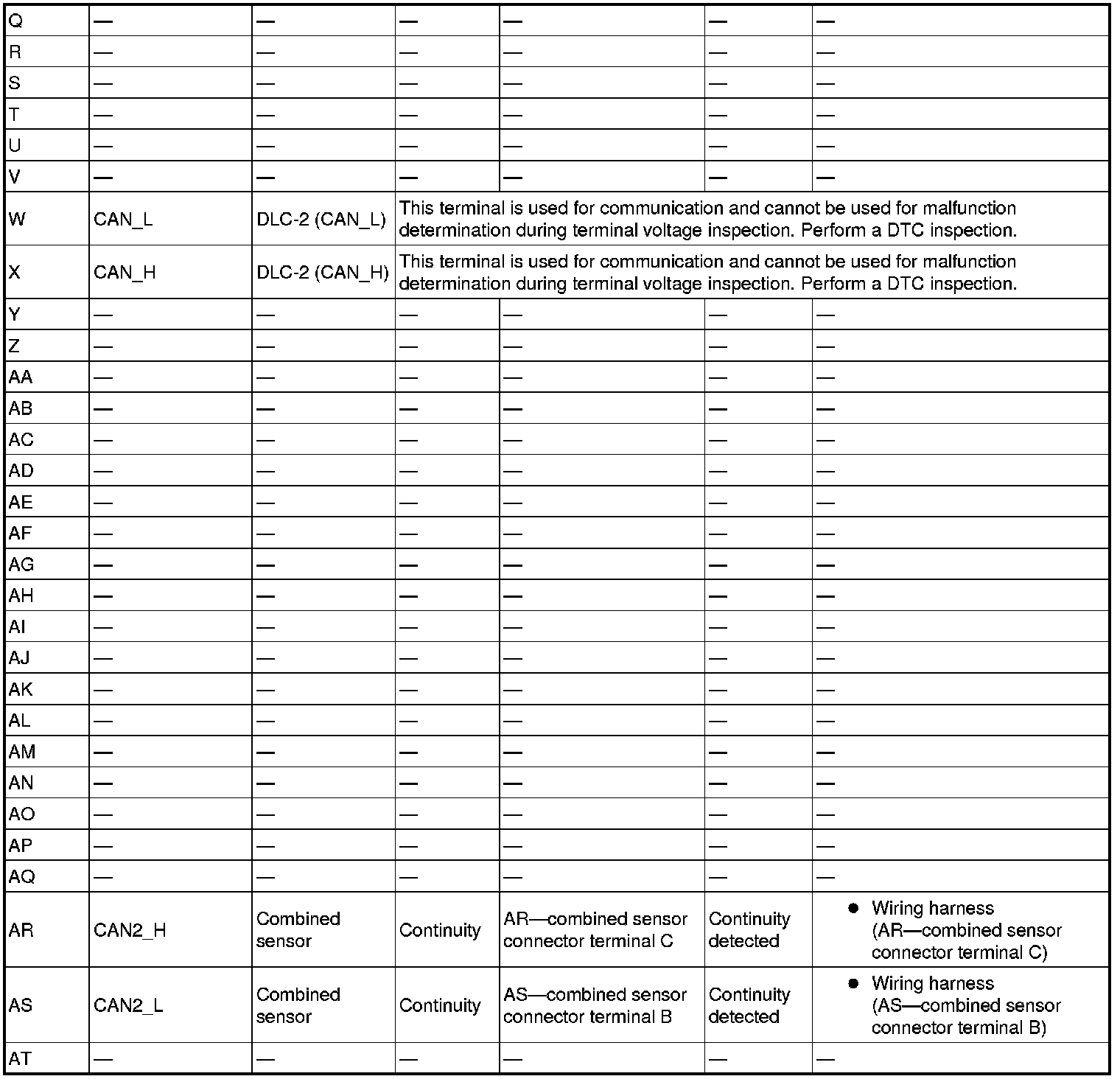

Standard (Reference Value)
