Mazda Truck
>>
2007
>>
B2300 L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>

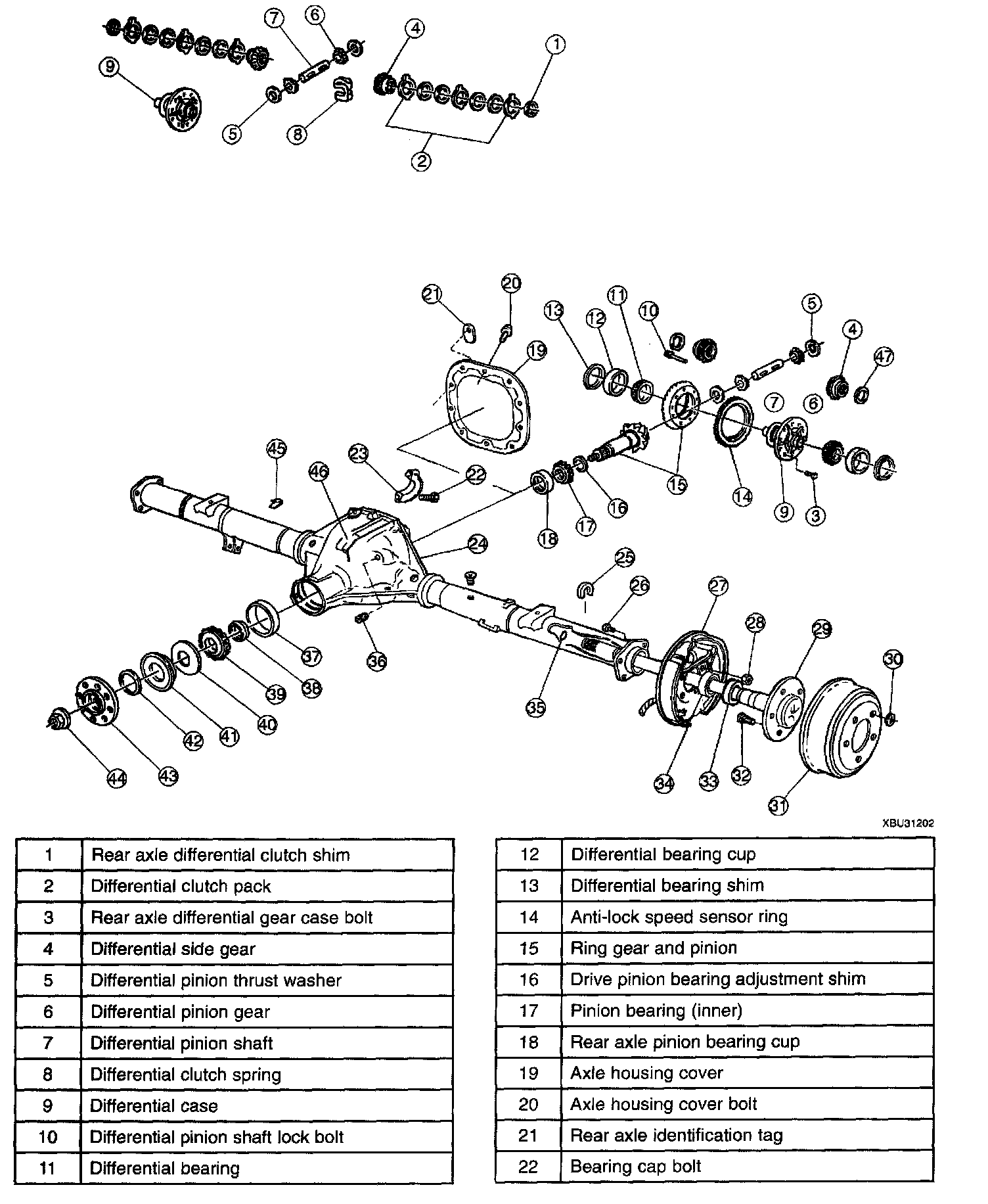

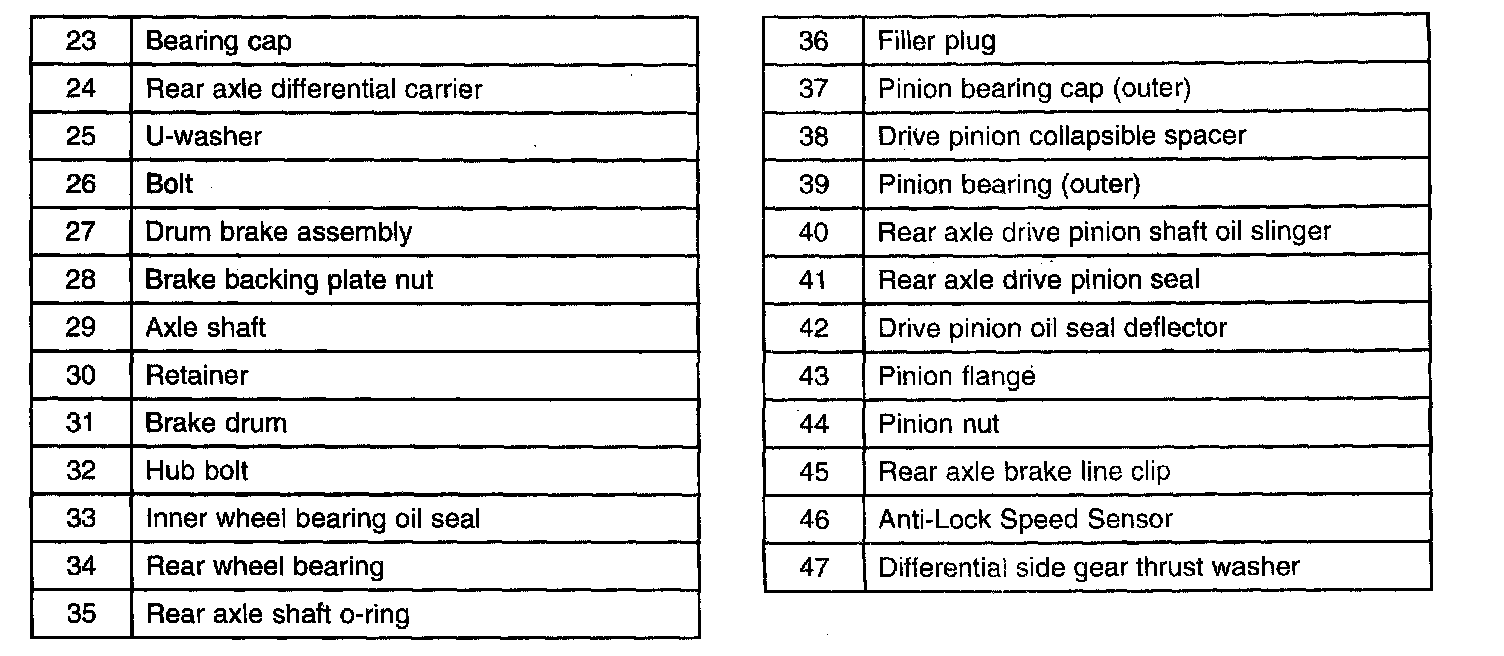

Axle Structural View Rear (Limited Slip)
Axle Structural View Rear (Limited Slip)
