Mazda Truck
>>
2007
>>
B2300 L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
Fuse Block

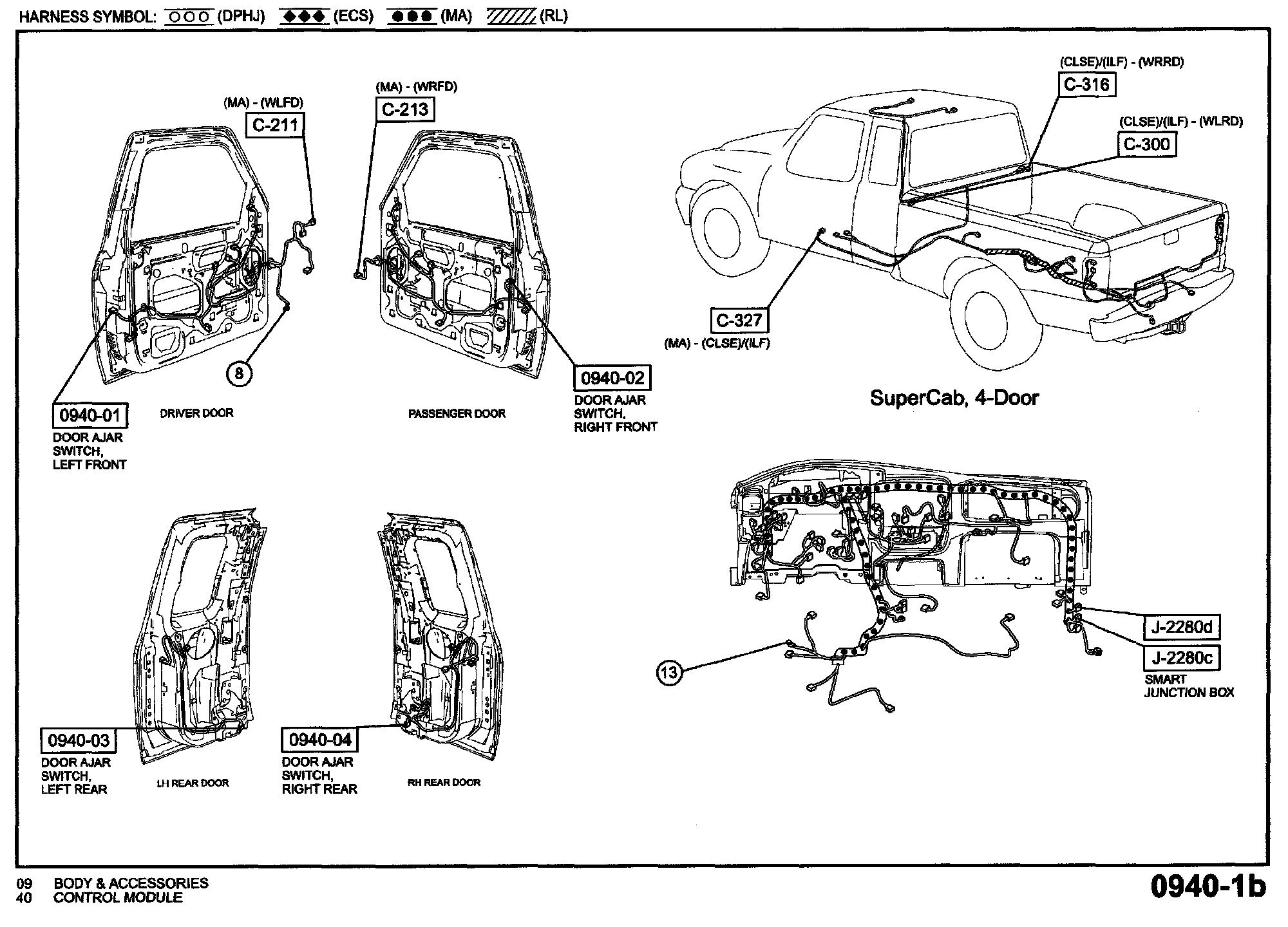

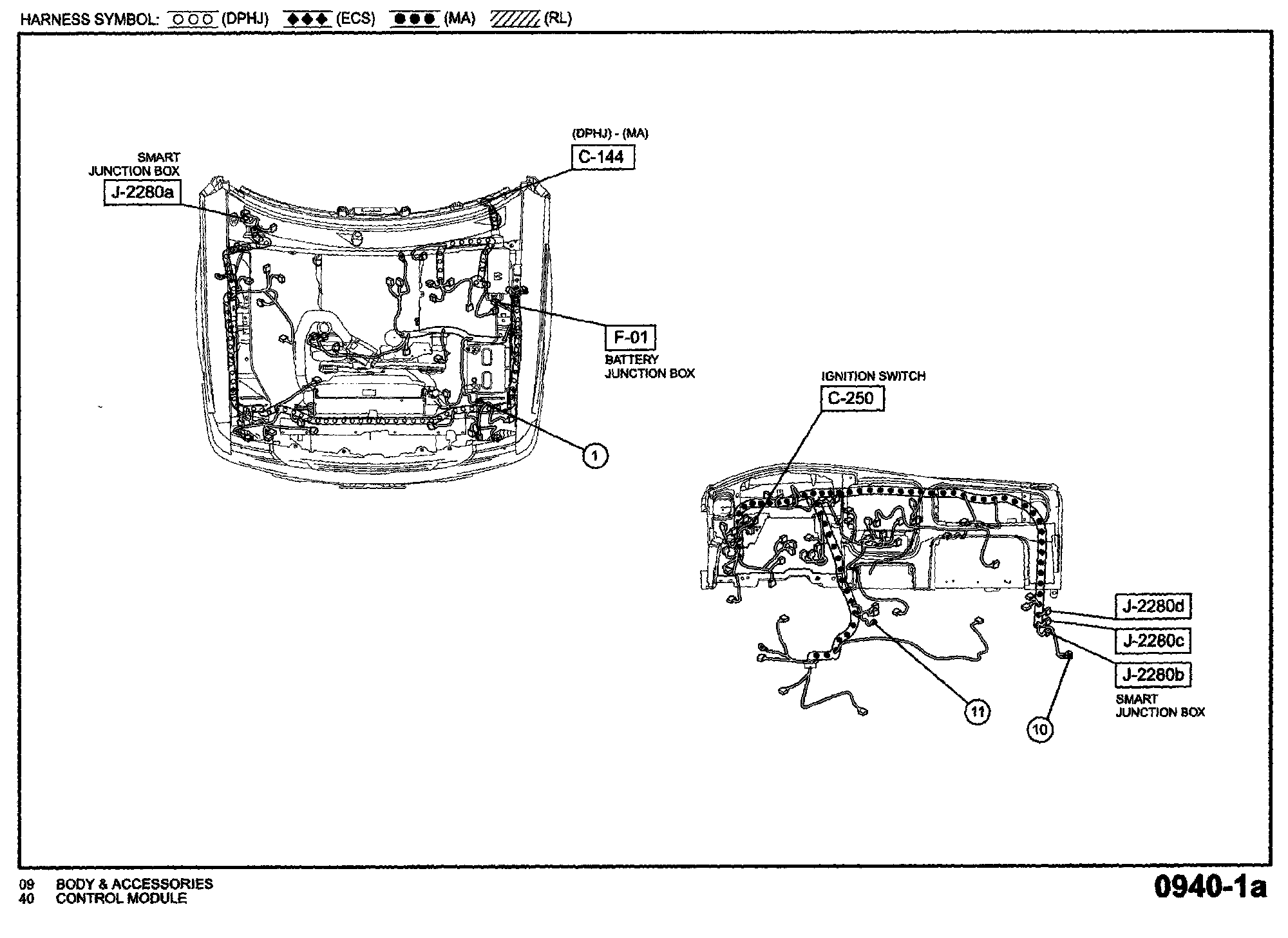

Smart Junction Box (SJB):
Smart Junction Box (SJB):
