Removal

POWER TAKE OFF UNIT-3.0L DURATEC (4V)

Removal
1. Disconnect the battery ground cable.
2. Remove the driveshaft.

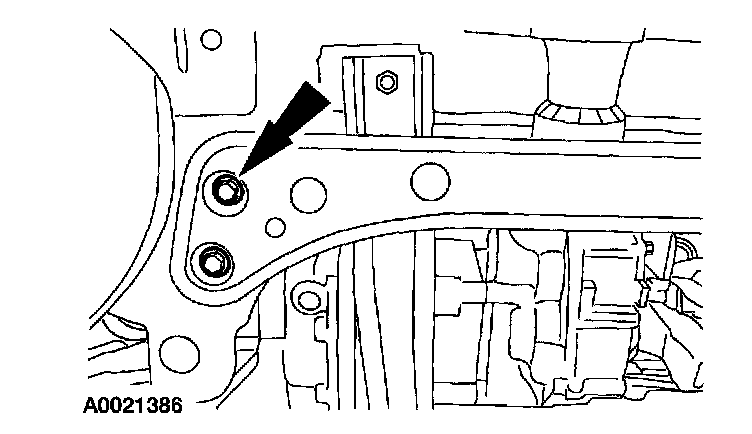

3. Remove the four bolts and the crossmember brace.
4. Remove the generator.
5. Disconnect the RH catalyst monitor.

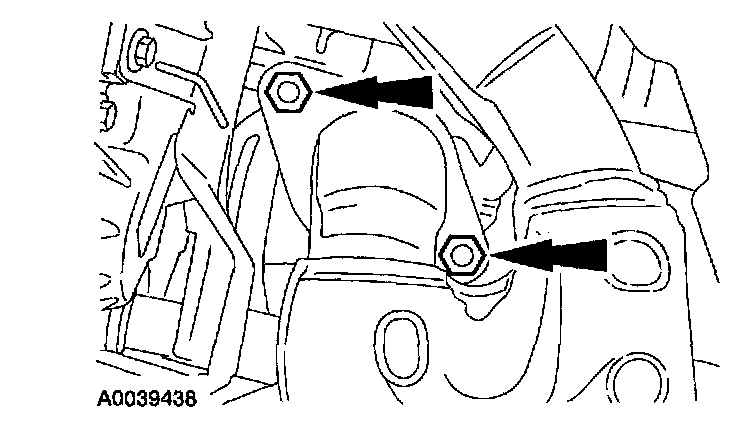

6. Remove and discard the two nuts and separate the flexible Y-pipe from the manifold.

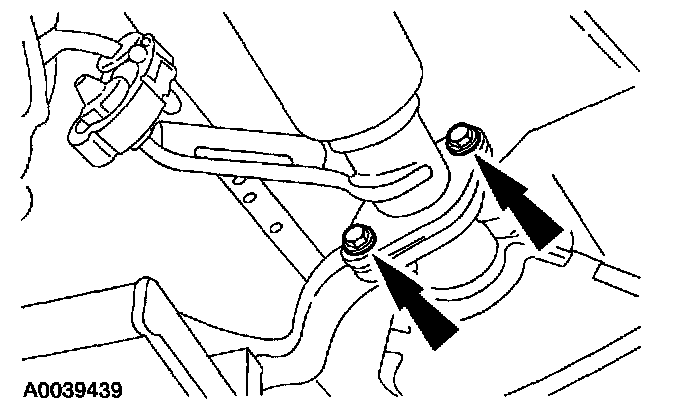

7. Remove and discard the nuts.
^ Discard the gasket.

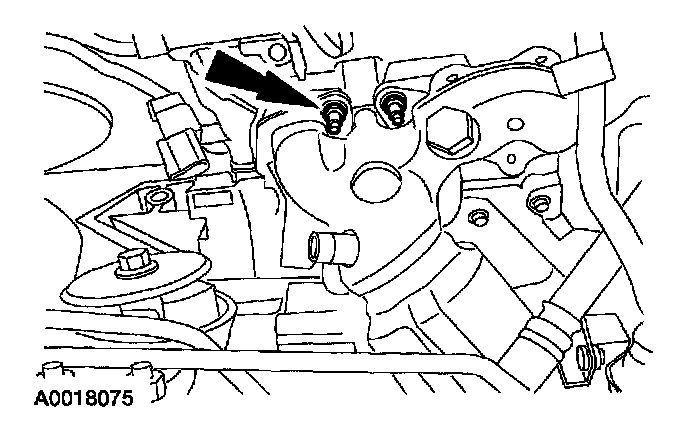

8. Remove and discard the nuts.
^ Discard the gasket.





9. Remove the flexible pipe.

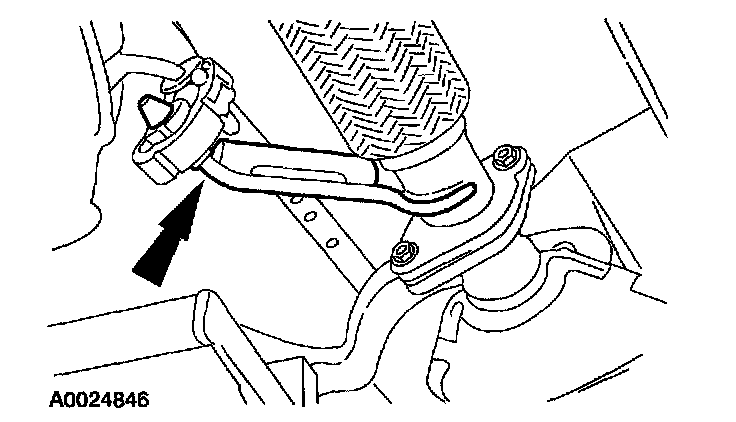

^ Disconnect the hanger.





10. Remove the RH exhaust manifold.

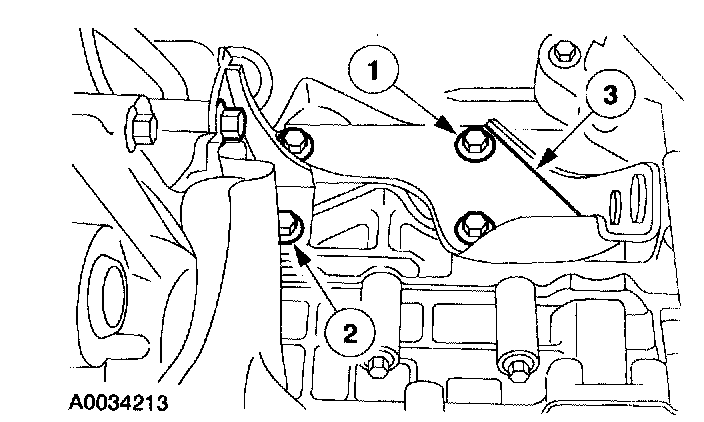

11. Remove the bracket.
1. Remove the five bolts.
2. Loosen the bolt.
3. Remove the bracket





12. Remove the three bolts.





Caution:
^ A new power take off (PTO) unit driven gear seal must be installed anytime the power take off (PTO) unit is removed.

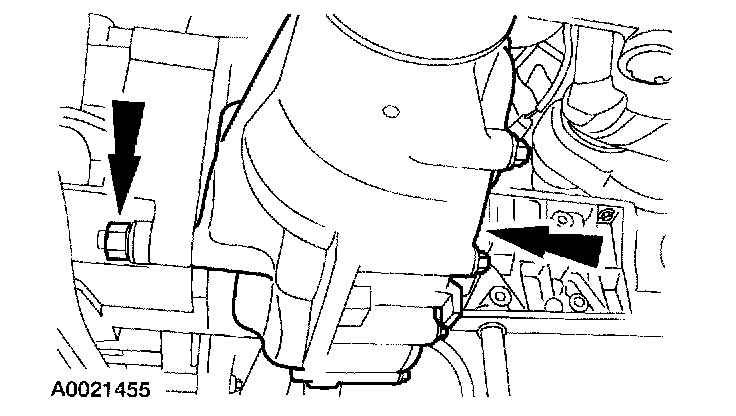

13. Remove the bolt and the power take off (PTO) unit.
