Power Take Off Unit Rear Output Shaft Flange Dust Shield

POWER TAKE OFF UNIT REAR OUTPUT SHAFT FLANGE DUST SHIELD

Removal
1. Remove the companion flange.

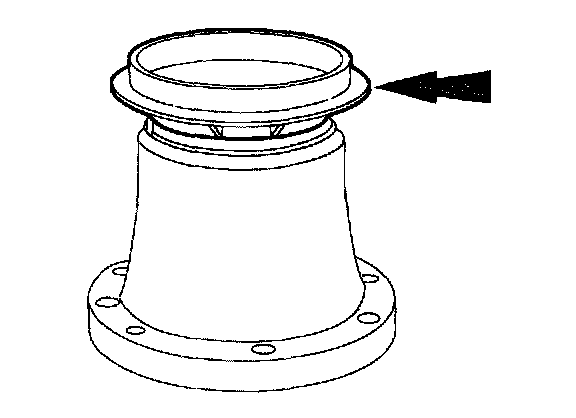

2. Remove the companion flange dust shield.

Installation

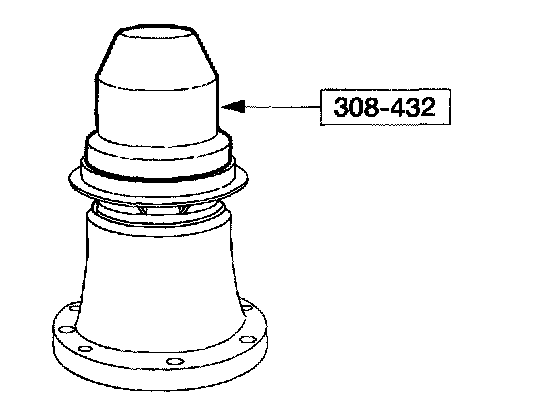

1. Using the special tool, install the companion flange dust shield.
2. Install the companion flange.

Note:
^ Refill capacities are determined by filling the power take off (PTO) unit to the bottom of the filler hole.

3. Check the power take off (PTO) unit oil level.
