POWER TAKE OFF UNIT REAR OUTPUT SHAFT FLANGE

Removal

Caution:
^ Mark the driveshaft relative to the companion flange.

1. Remove the driveshaft.





Caution:
^ Rotational torque of the companion flange must be measured and recorded for correct pinion bearing preload when reassembled.

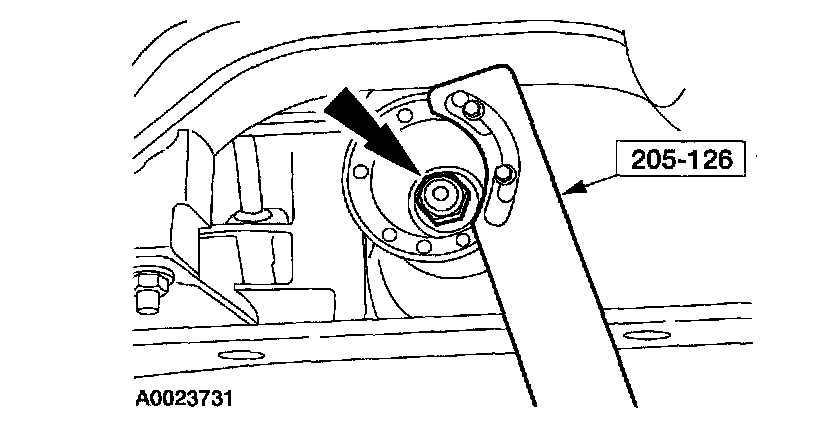

2. Using the special tool, remove the pinion nut.





Caution:
^ Mark the companion flange relative to the pinion spline.

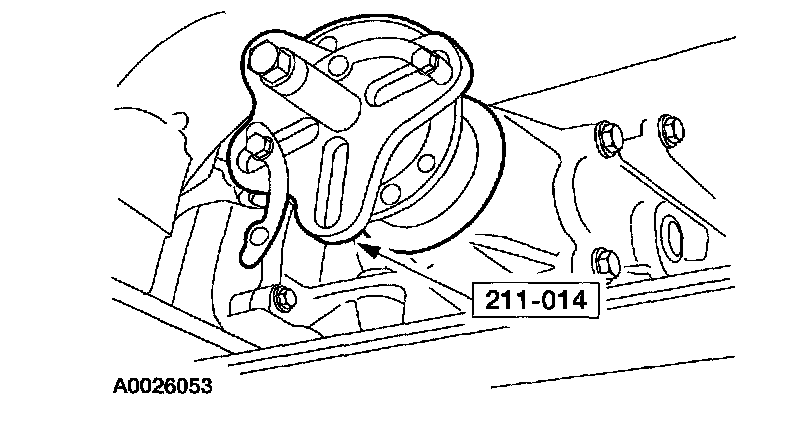

3. Using the special tool, remove the companion flange.

Installation





Caution:
^ Install the companion flange to engage the spline as previously marked.

1. Using the special tool, install the companion flange.

Caution:
^ Do not over tighten the pinion nut.

Caution:
^ Refer to the rotational torque previously recorded.

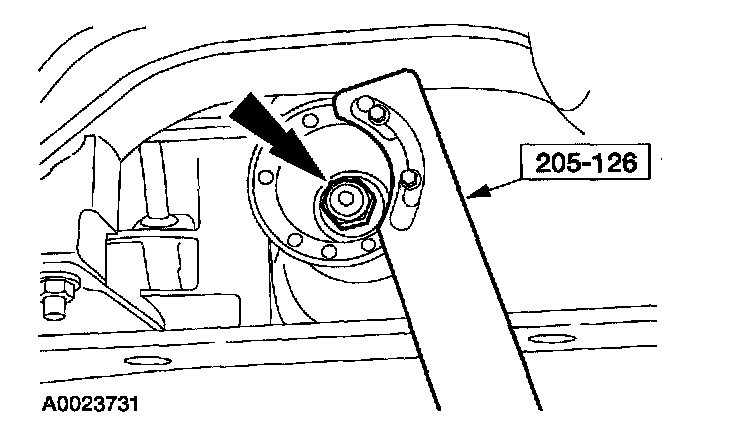

2. Install the pinion nut.
3. Install the driveshaft.
