Disassembly and Assembly
ROTARY BLADE COUPLING DISASSEMBLY AND ASSEMBLYDisassembly

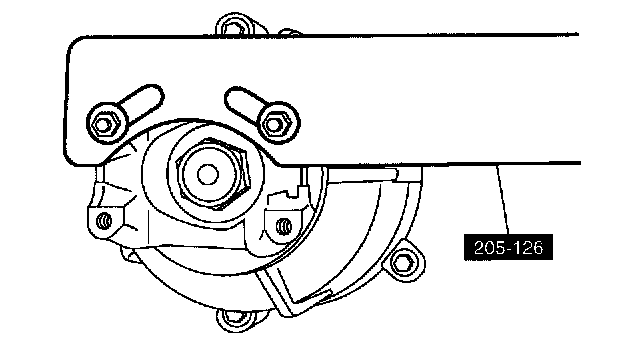

1. Using the special tool, remove the pinion nut.
Note:
^ A small punch that can be inserted between the end yoke spline and pinion gear is required.

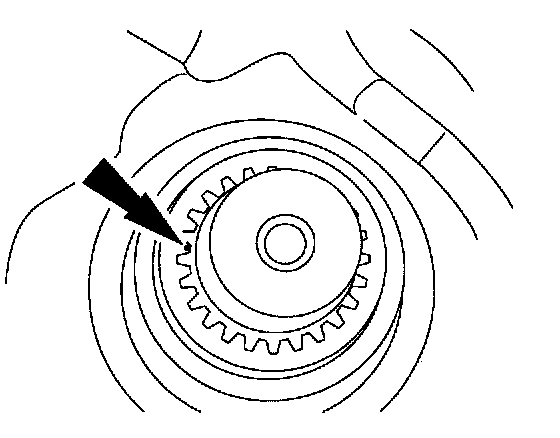

2. Using a punch, mark one of the splines on the yoke.

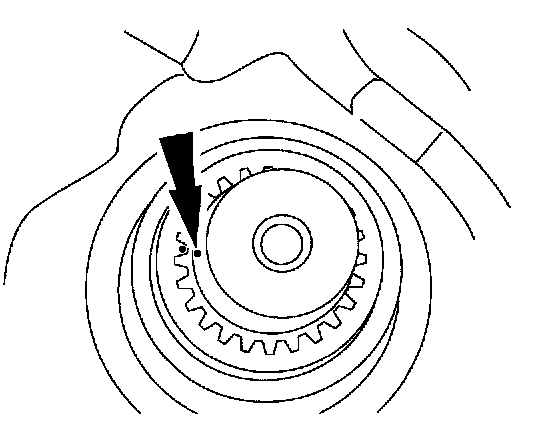

3. Mark the corresponding spline on the pinion gear.
^ Remove the yoke.

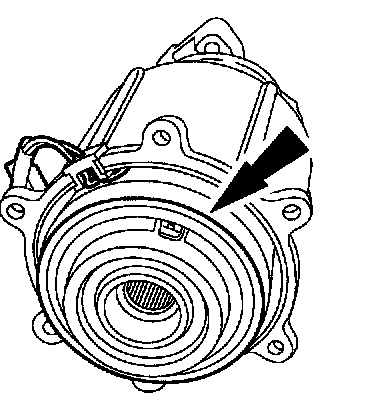

4. Remove the clutch assembly from the housing.

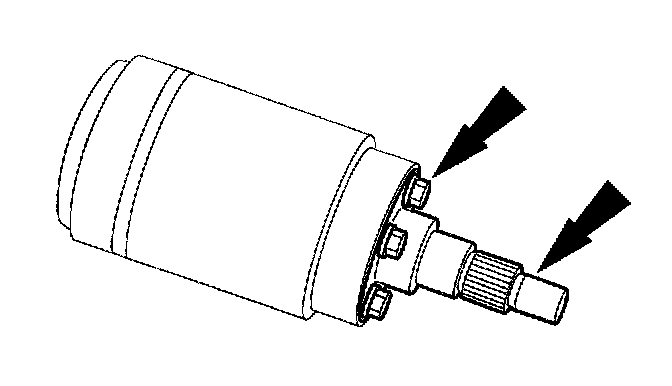

5. Remove the four bolts and the clutch shaft.
^ Inspect the clutch shaft and replace as required

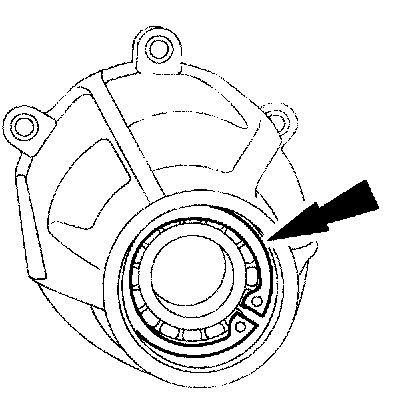

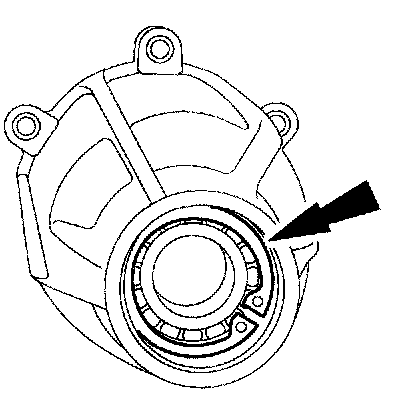

6. Remove the snap ring.

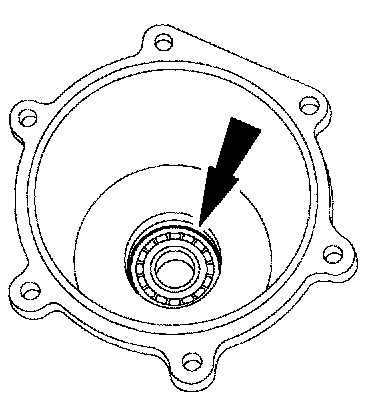

7. Using a brass drift and hammer, drive the bearing out of the housing.
^ Discard bearing.
Assembly

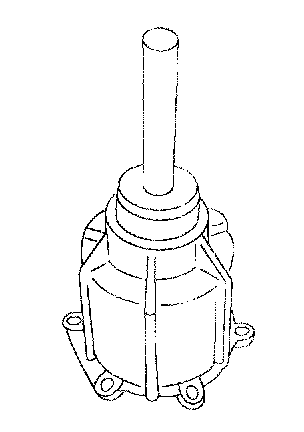

1. Using a bearing driver and handle, install the bearing into the housing.
2. Install the snap ring.

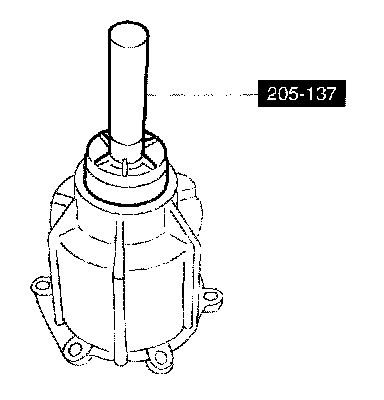

3. Using the special tool, install the seal.
^ Make sure the seal flange is in contact with the housing.

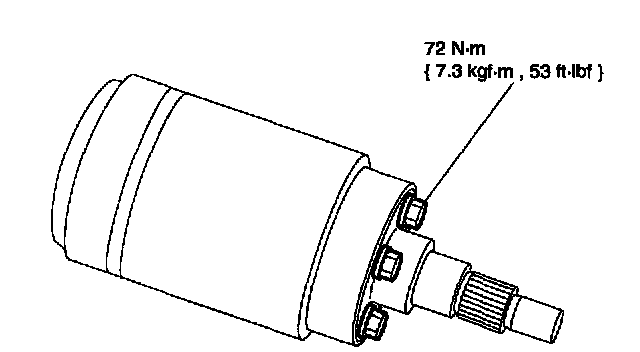

4. Install the clutch shaft and the four bolts.

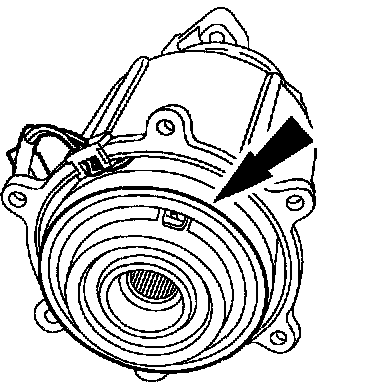

5. Install the clutch assembly into the housing.
Note:
^ Make sure the marks are aligned on the pinion gear and yoke.

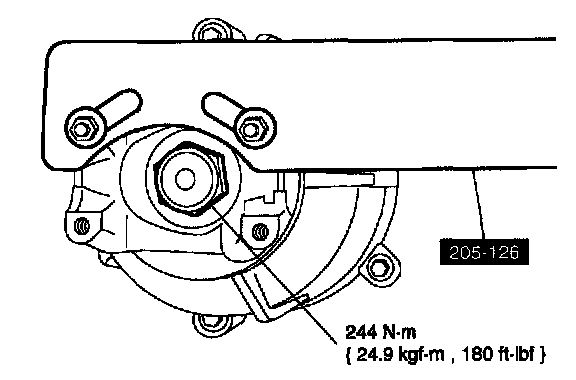

6. Install the yoke and nut.
^ Use the special tool to hold the yoke while tightening the nut.
