Removal and Installation

AXLE ASSEMBLY

Removal and Installation
1. Remove the rotary blade coupling.
2. Remove the rear halfshafts.

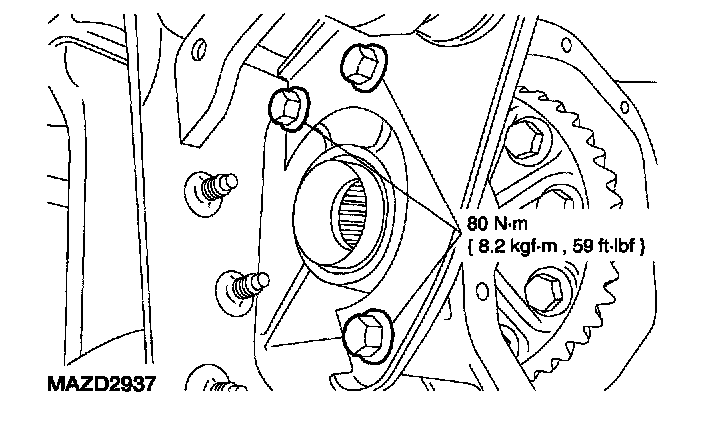

3. Remove the differential housing-to-front insulator bracket bolts.

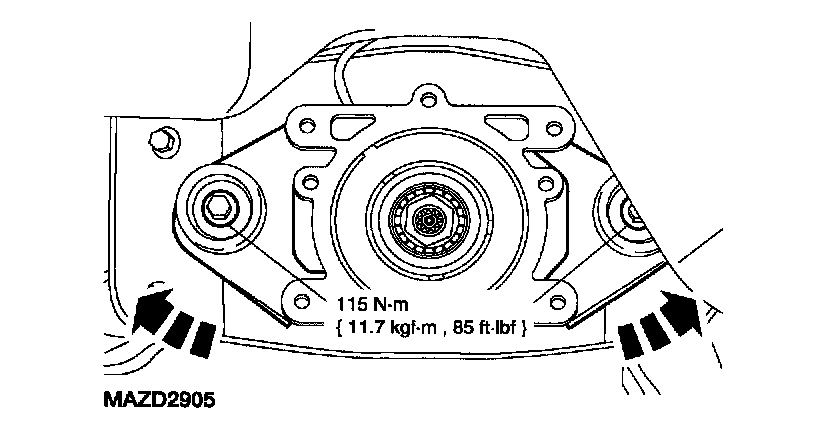

4. Loosen the front insulator bracket-to-subframe bolts, and rotate the bracket aside.





Note:
^ This step requires an assistant.

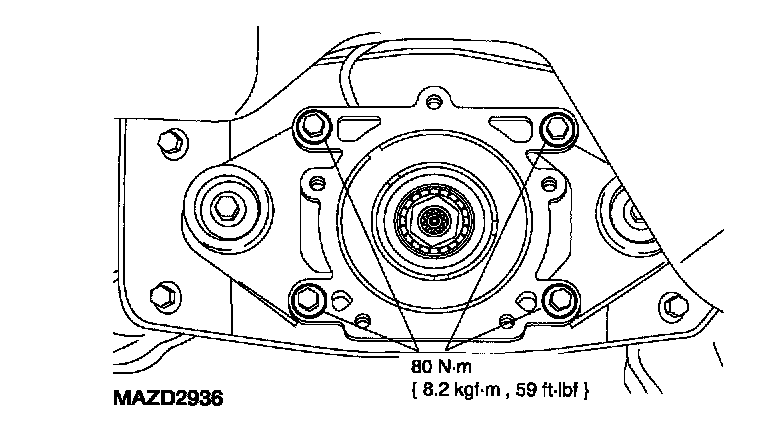

5. Remove the differential housing-to-side insulator bracket bolts and the axle assembly.
6. To install, reverse the removal procedure.
