Transaxle Support Insulator- Lower Rear

TRANSAXLE SUPPORT INSULATOR - LOWER. REAR. 3.0L DURATEC (4V)

Removal

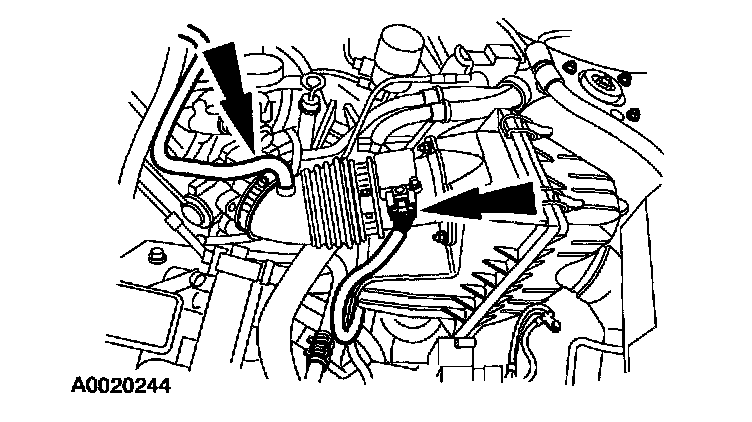

1. Disconnect the breather tube and mass air flow (MAP) sensor.

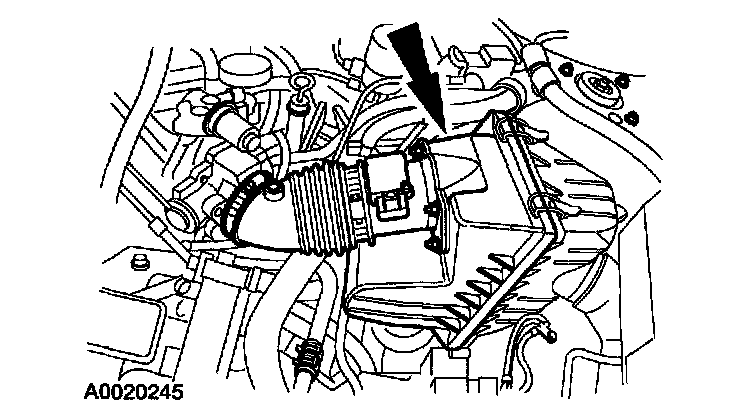

2. Remove the intake tube and air cleaner cover.

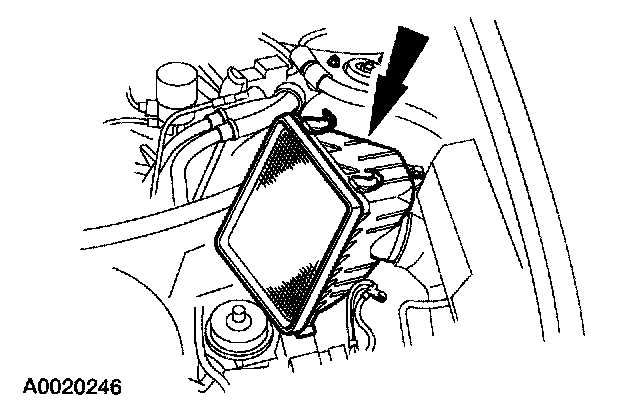

3. Remove the air cleaner assembly.

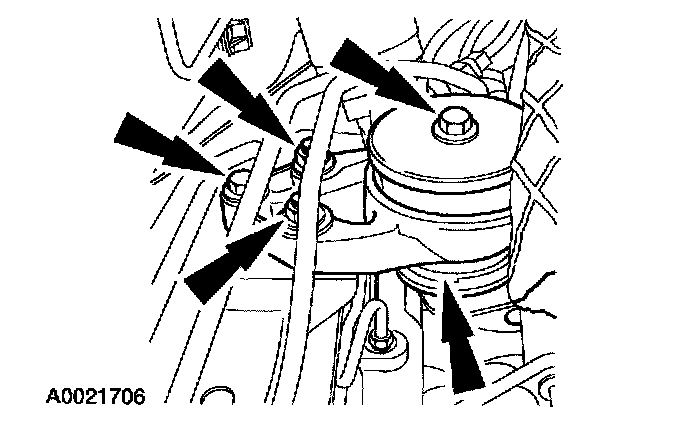

4. Remove the bolts and nuts from the mount, and remove the mount.

Installation





Note:
^ Prior to installing the mount nuts, install the mount bolt for correct alignment

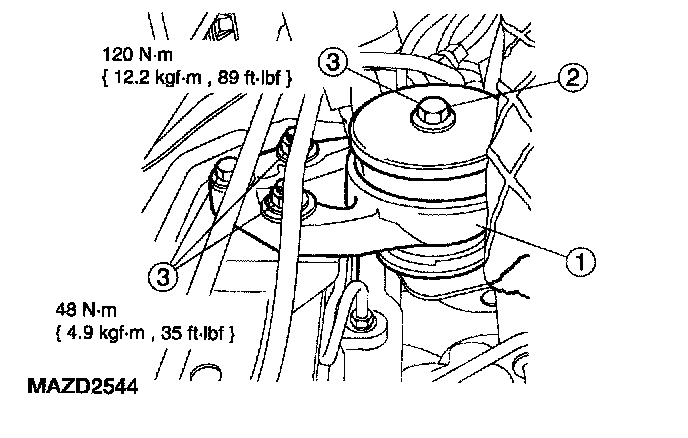

1. Install a new mount and bolts.
1. Install the mount.
2. Loosely install the bolt
3. Tighten the nuts first, then the bolts.





2. Install the air cleaner assembly.





3. Install the intake tube and air cleaner cover.

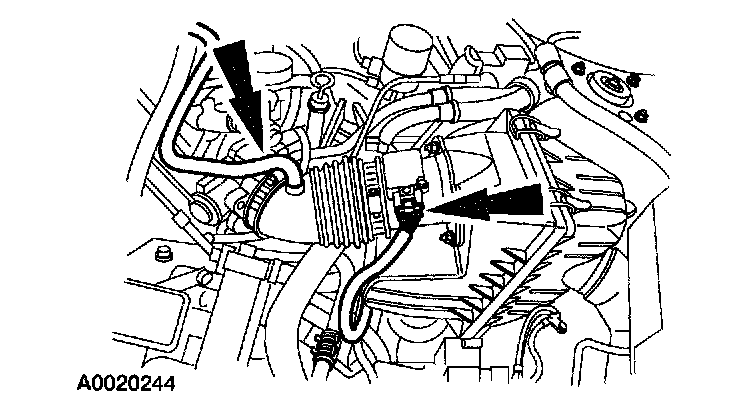

4. Connect the breather tube and MAP sensor.
